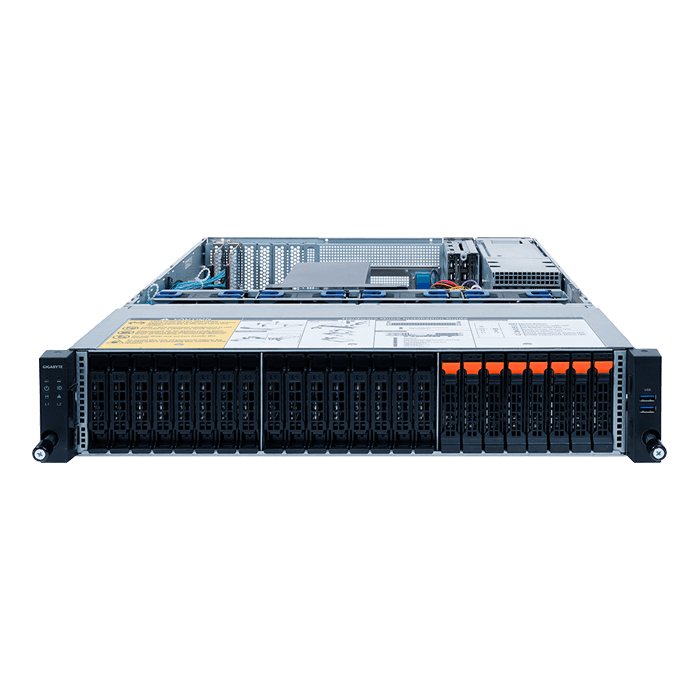

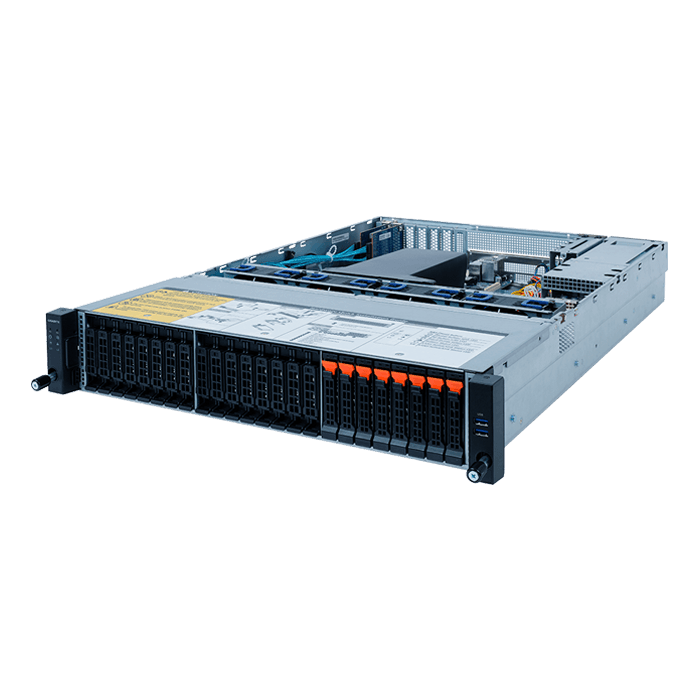

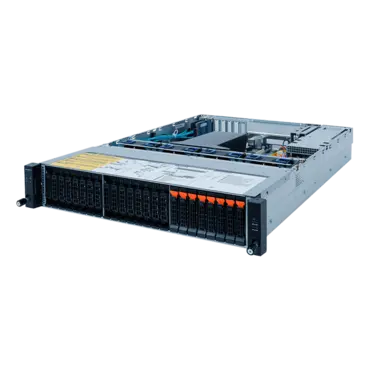

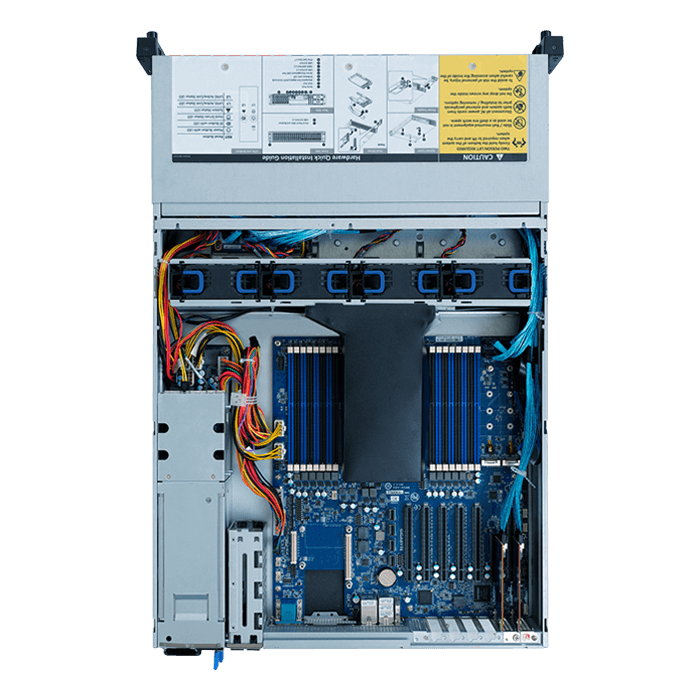

Name: GIGABYTE R272-P33, Ampere® Altra® Processors, NVMe, 2U Rackmount Server Computer
Brand: GIGABYTE
SKU: 14888389
Price: 6549.00 USD
Availability: InStock

SmartPro SMART1500RM2U, 1500VA/1350W, 120V, 8 Outlets, Black, 2U Rackmount UPS

zoom

TRIPP LITE

SmartPro SMART1500RM2U, 1500VA/1350W, 120V, 8 (+$836)

SmartPro SMART2600RM2U, 2600VA/2100W, 120V, 9 Outlets, Black, 2U Rackmount UPS

zoom

TRIPP LITE

SmartPro SMART2600RM2U, 2600VA/2100W, 120V, 9 (+$1749)

Smart-UPS SMT3000RM2UC, 3000VA/2700W, 120V, 8 Outlets, Black, 2U Rackmount UPS

zoom

APC

Smart-UPS SMT3000RM2UC, 3000VA/2700W, 120V, 8 (+$2054)

Smart-UPS SRT6KRMXLT-IEC, 6000VA/6000W, 208V, 13 Outlets, Black, 4U Rackmount UPS

zoom

APC

Smart-UPS SRT6KRMXLT-IEC, 6000VA/6000W, 208V, 13 (+$8224)

TPC4100-D Power Distribution Unit, L21-30P / 12 NEMA 5-20R, 120V/208V AC, 50/60Hz, 24A, w/ 3 2P 20A Circuit Breakers

zoom

EATON

TPC4100-D Power Distribution Unit, L21-30P / 12 (+$1639)

CP-PD108, 8 Outlets, 10-ft cord, Black, Power Distribution Unit

zoom

ISTARUSA

CP-PD108, 8 Outlets, 10-ft cord, Black, Power (+$50)

1U Rackmount Power Strip, 12x / NEMA 5-15R, 120V AC, 50/60Hz, 15A, 1800W, 15-ft cord, Black

zoom

TRIPP LITE

1U Rackmount Power Strip, 12x / NEMA 5-15R, 120V (+$83)

Isobar Rack-Mount Surge Protector, 1U Rack, 12x / NEMA 5-15R, 3840 Joules, Extra-long 15-ft cord, 120V AC, Black

zoom

TRIPP LITE

Isobar Rack-Mount Surge Protector, 1U Rack, 12x / (+$156)

Affordable Monthly Plans

Pay for your order over 12, 24, or 36 months at competitive interest rates*.

No Prepayment Penalties

Pay for your purchase with monthly payments and prepay at any time without penalty.

Quick and Easy Application

Get a decision in seconds with no obligation to buy. Checking your rate won't affect your credit score.

Who is PayTomorrow?

PayTomorrow offers financing for customers of all credit types. We’ve partnered with PayTomorrow to allow more of our customers the opportunity to get approved for financing.

How does the application process work?

Simply click Let’s Get Started! and answer a few quick questions.

Will applying through PayTomorrow affect my credit score?

No.

How does it work?

Buy now and pay over time. It’s simple financing that fits your life.

Just select option Financing at checkout.

Safe and secure

Our fully encrypted process keeps your information safe.

Financing up to 24 months

Know your costs upfront — no hidden fees!

Applying with PayTomorrow will not affect your credit score.

2045 Midway Dr
Twinsburg, OH 44087
sales@avadirect.com
Phone: 1-866-766-4629

How to Order:

Reference #: 14888389
Date: 5/20/2022
Expires: 6/19/2022

FIRST NAME *

LAST NAME *

E-MAIL *

CONFIRM E-MAIL *

CONTACT PHONE (OPTIONAL):

My purchases are for:

The System(s) would be primary used for:

How did you hear about us?

Dimensions (WxHxD, mm)	2U 438 x 87.5 x 660 mm
Motherboard	MP32-AR1
CPU	Ampere^® Altra^® Processor Single processor, 7nm technology Up to 80-core per processor
Socket	Single socket LGA4926
Chipset	System on Chip
Memory	16 x DIMM slots DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 256GB supported LRDIMM modules up to 256GB supported Up to 4TB of memory capacity supported per processor Memory speed: Up to 3200 MHz NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs
LAN	2 x 1GbE LAN ports (1 x Intel^® I350-AM2) 1 x 10/100/1000 Mbps management LAN
Video	Integrated in Aspeed^® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp
Audio	N/A
Storage	8 x 2.5" NVMe hot-swappable HDD/SSD bays
SAS	N/A
RAID	N/A
Peripheral Drives	N/A
Expansion Slots	Total 4 x low profile PCIe Gen4 expansion slots Slot_7: Disabled Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_3: 1 x PCIe x16 (Gen4 x8 bus) slot Slot_2: 1 x PCIe x8 (Gen4 x8 bus) slot, occupied by CNV3122 Slot_1: 1 x PCIe x16 (Gen4 x8 bus) slot, occupied by CNV3122 1 x OCP 2.0 mezzanine slot 2 x M.2 slots: - M-key - PCIe Gen4 x4 - Supports 2242/2260/2280/22110 cards
Internal I/O	2 x M.2 slots 1 x USB 3.0 header 1 x USB 2.0 header 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x Buzzer
Front I/O	2 x USB 3.0 1 x Power button with LED 1 x ID button with LED 1 x Reset button 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED
Rear I/O	3 x USB 3.0 1 x VGA 1 x Debug port 2 x RJ45 1 x MLAN 1 x ID button with LED
Backplane I/O	Backplane P/N: 9CBP20O5NR-00 Speed and bandwidth: PCIe Gen3 x4, SATA 6Gb/s
TPM	1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010
Power Supply	2 x 1200W redundant PSUs 80 PLUS Platinum AC Input: - 100-240V~/ 12-7A, 50-60Hz DC Input: - 240Vdc/ 6A DC Output: - Max 1000W/ 100-240V~ +12V/ 80.5A +12Vsb/ 3A - Max 1200W/ 200-240V~ or 240Vdc input +12V/ 97A +12Vsb/ 3A
System Management	Aspeed^® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
OS Compatibility	Red Hat Enterprise Linux 8.3 ( ARM64) CentOS 8.3-2011 (ARM64) SUSE Linux Enterprise Server 15 SP2 ( ARM64) Ubuntu 18.04.5-server (ARM64) Ubuntu 20.04.1-legacy-server (ARM64) Fedora Server 33-1.2 (ARM64) FreeBSD 13.0 current (ARM64) OracleLinux R8 U2 (ARM64) Debian 10.9 (Buster) (ARM64)
System Fans	4 x 80x80x38mm (16,300rpm)
Operating Properties	Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions	982 x 588 x 268 (mm)
Packaging Content	1 x R272-P33 system 1 x CPU heatsink 1 x Rail kit
Part Numbers	Barebone package: 6NR272P33MR-00 Spare parts: - Motherboard: 9MP32AR1NR-00 - Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-353109-T1R - Back plane board: 9CBP20O5NR-00 - Front panel board: 9CFP2001NR-00 - Fan module: 25ST2-883829-D0R - Fan duct for CPU: 25HA8-R27234-S5R - PCIe to NVMe HBA: 9CNV3122NR-00 - Power supply: 25EP0-212008-D0S
