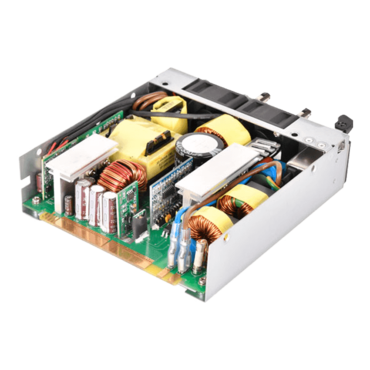

GM500-S, 80 PLUS Silver, 500W, PS/2 Mini Redundant Power Supply
- SKU: 14442502
- Manufacturer: SILVERSTONE
- MPN: GM500-S
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$551.99
GM500-S, 80 PLUS Silver, 500W, PS/2 Mini Redundant Power Supply
500W+500W continuous power output at 50°C operating temperature rated for 24/7 operation
- 500+500W 24hour and well working performance at 50? fully continuous power output
- PS/2 mini redundant power with depth of 174mm for easy integration
- 1+1 redundant configuration
- 80 PLUS Silver Certified
- Hot swappable design
- Convenient pull-out handle bars
- Industry-leading reliability
- Japanese electrolytic capacitors
| SPECIFICATIONS | |||||
| Product No. | SST-GM500-S | ||||
| Max. DC Output | 500W | ||||
| Power density | 446W per liter | ||||
| Load Range | |||||
| +3.3V | +5V | +12V | +5VSB | -12V | |
| Max.(Amps) | 25A | 25A | 41A | 3.5A | 0.8A |
| Min.(Amps) | 1.0A | 1.0A | 1.0A | 0.5A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 60mV | 60mV | 120mV | 60mV | 120mV |
| Model (on safety) | SST-GM500-S | ||||
| Color | Silver | ||||
| Combined +3.3V & +5V | 170W | ||||
| Combined +12V | 492W | ||||
| Input Voltage | 90 ~ 264V | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC (PF>0.9 at full load) | ||||
| Efficiency | 85% ~ 88% at 20% ~ 100% loading | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 50°C | ||||
| Protection |
Over current protection Over voltage protection Over temperature protection Under voltage protection Short circuit protection |
||||
| Connectors |
1 x 24 / 20-Pin motherboard connector (470mm) 1 x 4-Pin EPS / ATX 12V connector (470mm) 1 x 8-Pin EPS / ATX 12V connector (470mm) 1 x 6-Pin PCIE connector(470mm) 4 x SATA connector("480mm /150mm" x 2) 6 x 4-Pin Peripheral connector("480mm / 150mm / 150mm" x 2) 3 x 4-Pin Peripheral connector and 1 x 4-Pin Floppy connector(480mm / 150mm / 150mm / 150mm) 1 x 2-Pin +5V TTL signal connector (860mm) 2 x 2-Pin alarm / reset switch connector (860mm) 1 x Brown / white power 1 LED (860mm) 1 x Red / white power 2 LED (860mm) 1 x Green / white power / modular system LED (860mm) |
||||
| Cooling System | 2 x dual 40mm DC fans | ||||
| Form factor | PS/2 mini redundant | ||||
| Noise Level | 51 dBA | ||||
| Dimension |
150mm (W) x 86mm (H) x 174mm (D) 5.91" (W) x 3.36" (H) x 6.85" (D) (Housing without bracket) 150mm (W) x 86mm (H) x 188mm (D) 5.91" (W) x 3.36" (H) x 7.4" (D) (Housing with bracket, without handle) 140mm (W) x 40mm (H) x 150mm (D) 5.51" (W) x 1.57" (H) x 5.91" (D) (Module only without handle) |
||||
| LED indicator | Power Supply Condition | Power System Status | Module Status | ||
| LED Color | RED | GREEN | ORANGE | ||
| No AC power to all PSU | OFF | OFF | OFF | ||
| AC present / only standby output on | ON | OFF | OFF | ||
| Power supply DC output ON and OK | OFF | ON | ON | ||
| Power supply failure | OFF | Blinking | OFF | ||
| Weight | 3.87 kg | ||||
| Certification | 80 PLUS Silver | ||||
| Other |
GPU Support list Compatible with ATX12V v2.4 |
||||
| Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals. | |||||
