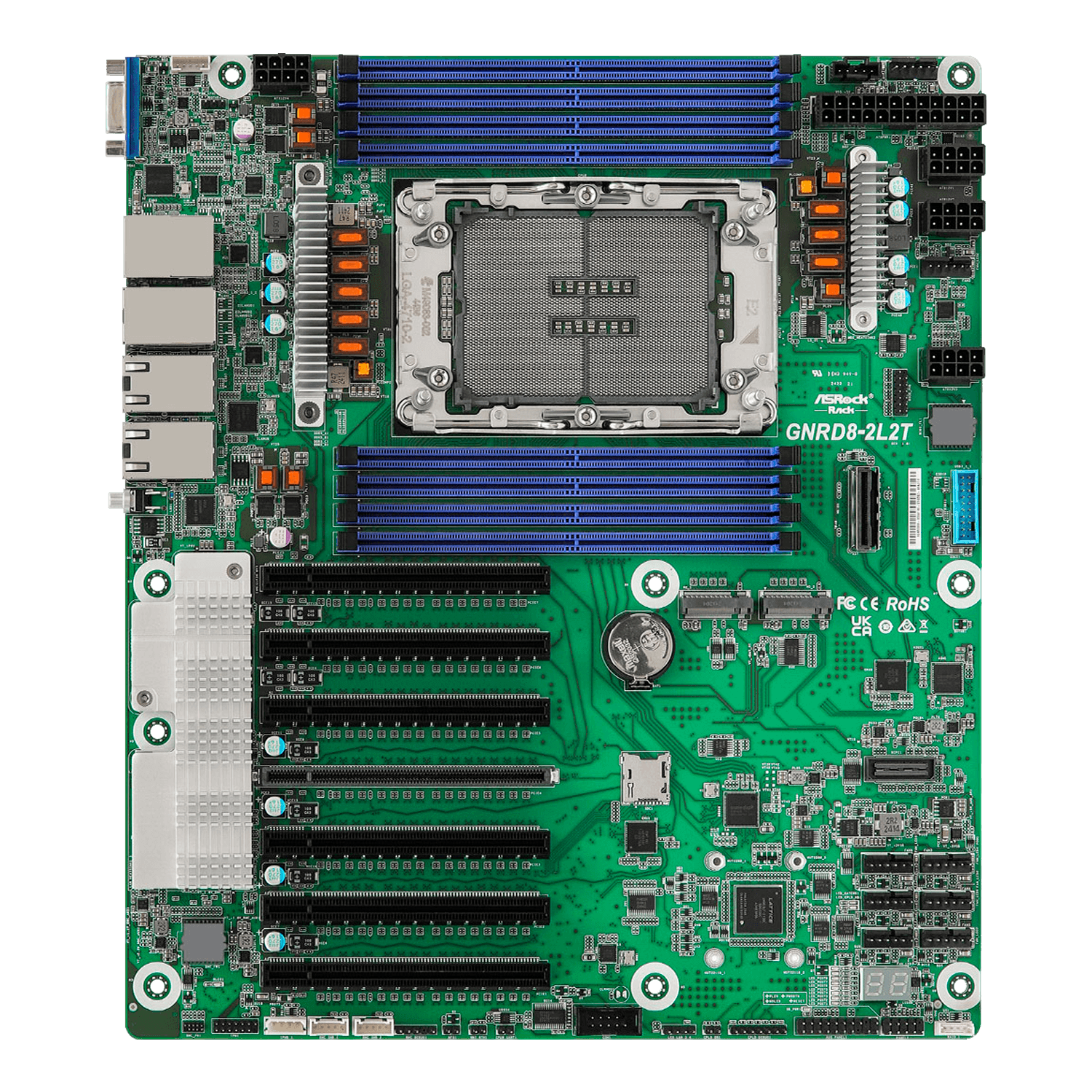

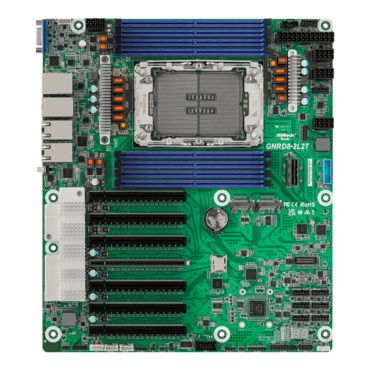

GNRD8-2L2T, Intel® SoC, LGA 4710, DDR5-6400 1TB ECC RDIMM / 8, VGA, M.2 / 2, MCIO, USB 3.2 Gen1 / 2, 10GbLAN / 2, 1GbLAN / 2, CEB Retail

Quantity:
  • SKU: 18239422
  • Manufacturer: ASROCK
  • MPN: GNRD8-2L2T
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$791.94
Quantity:
Physical Status
Form Factor CEB
Dimensions 12" x 10.5"
Processor System
CPU Supports Intel®Xeon®6700E-series processors
Socket 1 Socket E2 (LGA 4710)
Chipset System on Chip
System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type DDR5 RDIMM
Max. Capacity per DIMM RDIMM: 128GB
Max. DIMM Frequency RDIMM: 6400MT/s
Voltage 1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT7: PCIe5.0 / CXL2.0 x16*
SLOT6: PCIe5.0 / CXL2.0 x16
SLOT5: PCIe5.0 / CXL2.0 x16
SLOT4: PCIe5.0 / CXL2.0 x16*
SLOT3: PCIe5.0 / CXL2.0 x16
SLOT2: PCIe5.0 / CXL2.0 x16*
SLOT1: PCIe5.0 / CXL2.0 x16

*SLOT7, 4, 2 only function with selected processors
TPM
TPM support 1 (13-pin, SPI)
Other PCIe Expansion Connectors
M.2 slot 2 M-key (PCIe5.0 x4), supports 22110/2280 form factor
Others 1 MCIO (PCIe5.0 / CXL2.0 x8)
Ethernet
Additional GbE Controller 2 RJ45 (10GbE) by Intel®X710-AT2
2 RJ45 (1GbE) by Intel®i210
Server Management
BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
Graphics
Controller ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header

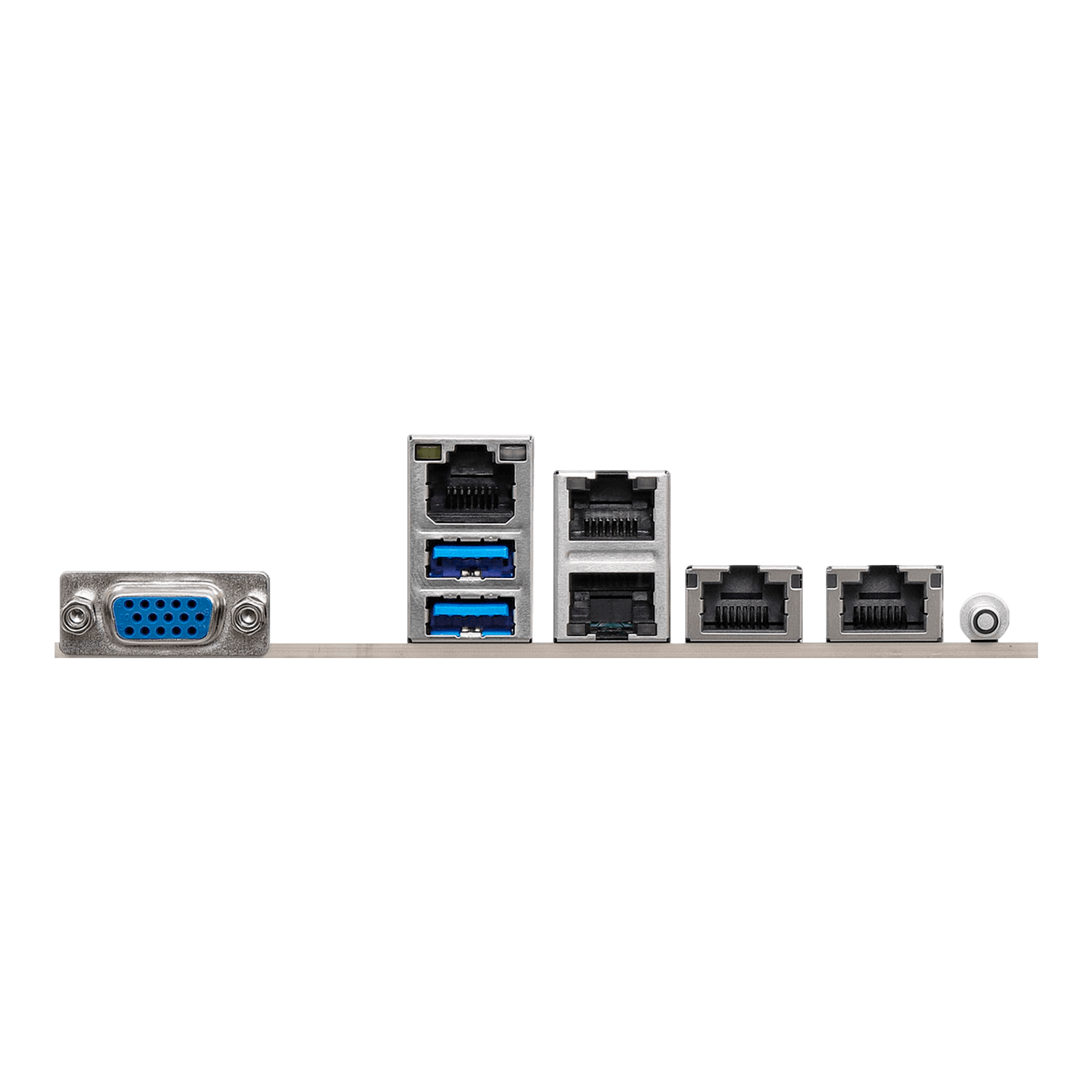

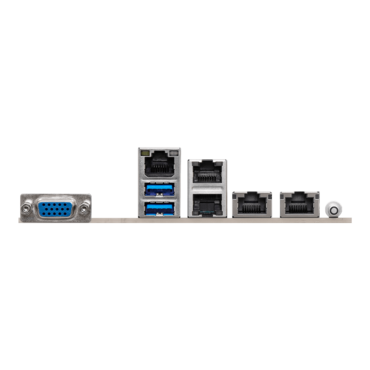

Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (UBS3.2 Gen1)
RJ45 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI
Internal Connector/Headers
Power Connector 1 (24-pin, ATX main power), 4 ( 8-pin, ATX 12V)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1 (9-pin)
Fan Header 8 (6-pin)
TPM Header 1 (13-pin, SPI)
VROC header 1
HSBP 1
SMBus header 2
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
Front Lan LED Connector 1
USB 3.2 (Gen1) Header 1 header (19-pin, 1 USB3.2 Gen1)
USB 2.0 Header 1 header (19-pin, 1 USB2.0)
NMI Header 1
LED Indicators
Standby PWR LED 1 (5VSB)
80 Debug Port LED 1
Fan Fail LED 8
BMC heartbeat LED 1
System BIOS
BIOS Type AMI UEFI BIOS; 512Mb SPI Flash ROM
BIOS Features Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash
Hardware Monitor
Temperature CPU, MB, Card Side, M.2, RAM, TR Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
