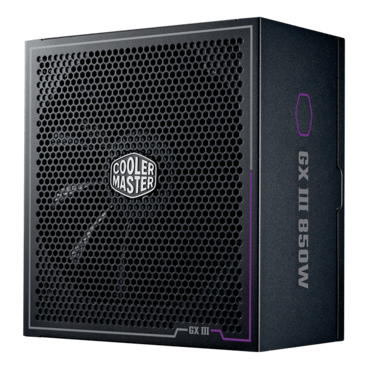

GX III Gold 850, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 17215463
- Manufacturer: COOLER MASTER
- MPN: MPX-8503-AFAG-BUS
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$192.72
- Innovative, streamlined design
- ATX 3.0 support & a 90-degree 12VHPWR cable
- Optimized and silent thermal performance
- Titanium efficiency at light loads
- Fully modular cabling
- 10-year warranty
| Model | MPX-8503-AFAG |
| ATX Version | ATX 12V Ver. 3.0 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 135mm |
| Fan Bearing | HDB |
| Fan Speed | 1900 RPM |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 Hours |
| Protections | OPP, OVP, OTP, OCP, SCP, UVP, Surge and Inrush Protection |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 3 |
| 12VHPWR Connector | 1 |
| Series | GX Series |
| 80 Plus | Gold |
| Modular | Full Modular |
| Wattage | Above 750W |
