NVIDIA® GeForce RTX™ 40 Series GPUs are beyond fast for gamers and creators. They're powered by the ultra-efficient NVIDIA Ada Lovelace architecture which delivers a quantum leap in both performance and AI-powered graphics. Experience lifelike virtual worlds with ray tracing and ultra-high FPS gaming with the lowest latency. Discover revolutionary new ways to create and unprecedented workflow acceleration.

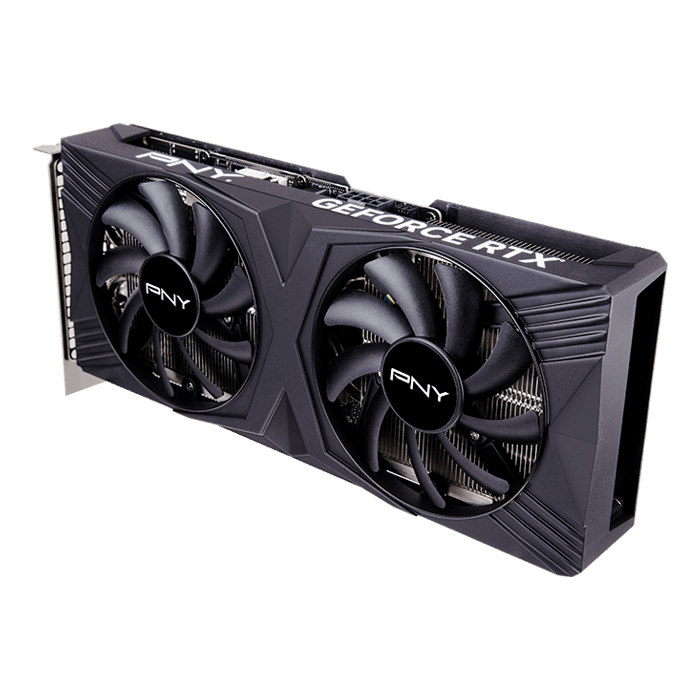

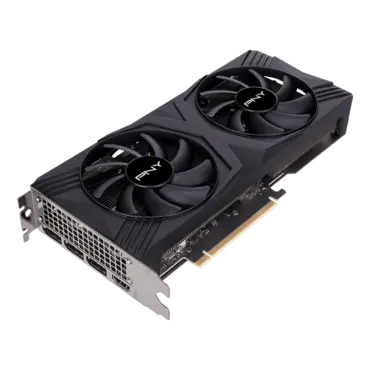

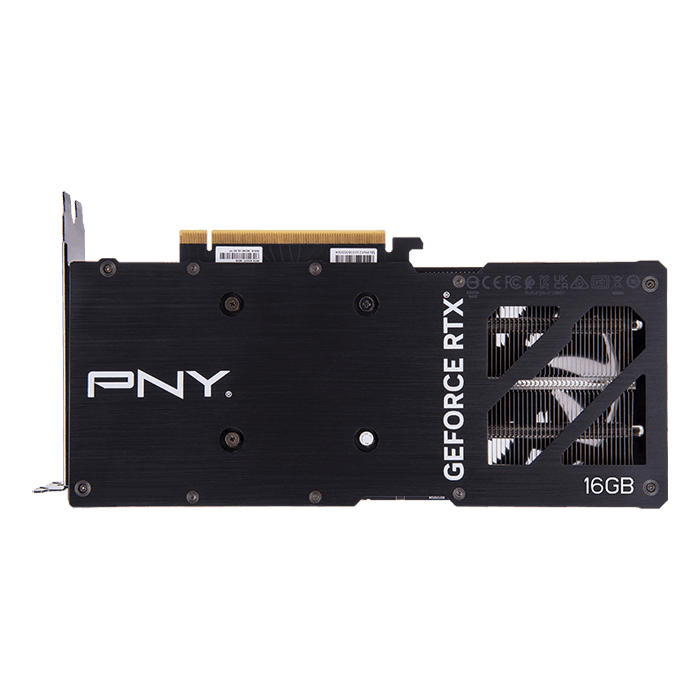

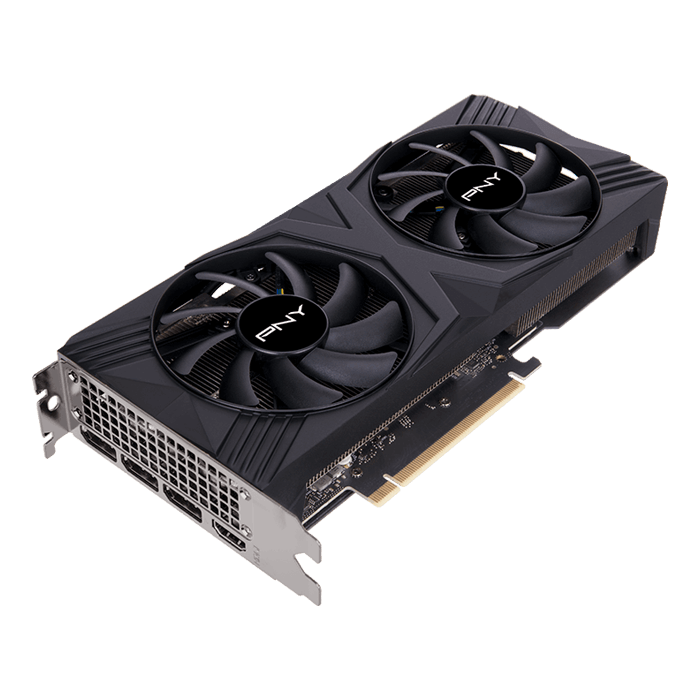

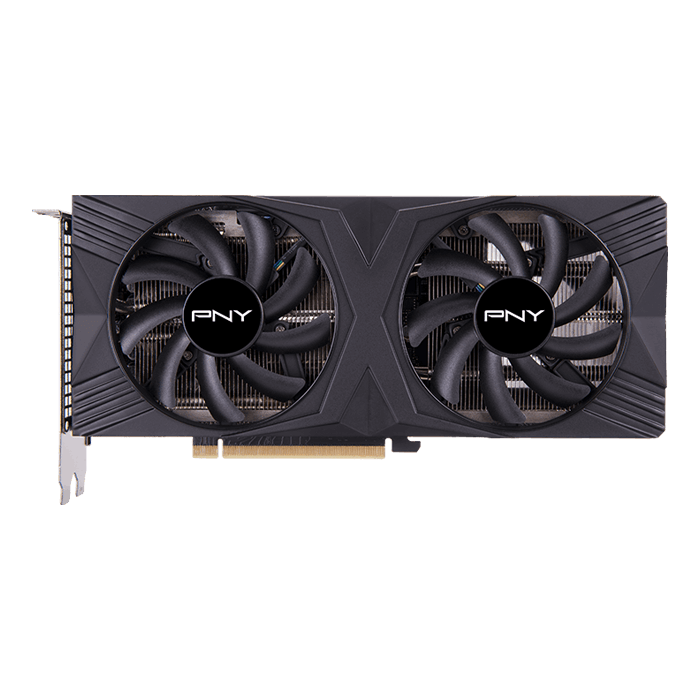

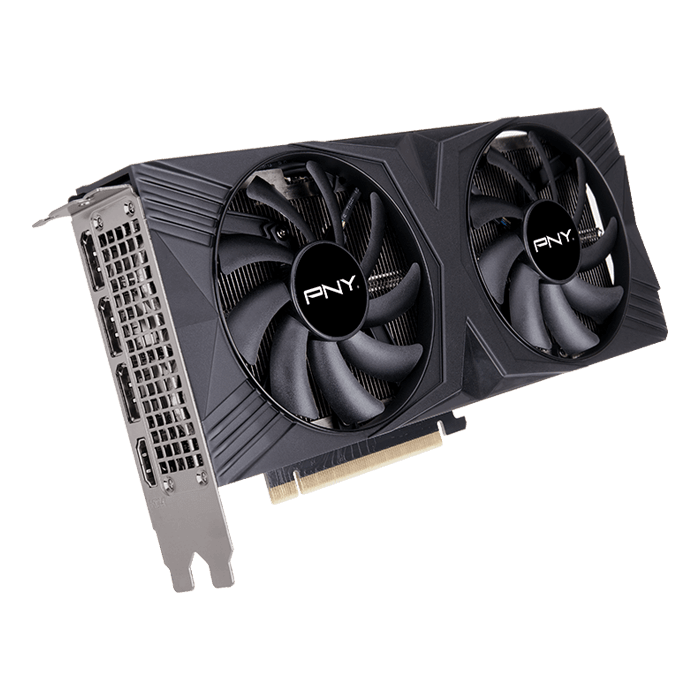

Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
The new NVIDIA® Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics. It has new Streaming Multiprocessors, 3rd generation Ray Tracing Cores, and 4th generation Tensor Cores. It’s built on a new custom TSMC 4N process, runs with blazing fast clocks, and features a large L2 cache. It enables fast ray tracing, new ways to create, and much more.
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- Dedicated Ray Tracing Cores
- Dedicated Tensor Cores
- NVIDIA DLSS 3
- Game Ready and NVIDIA Studio Drivers
- NVIDIA® GeForce Experience™
- NVIDIA Broadcast
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- PCI Express® Gen 4
- Microsoft DirectX® 12 Ultimate
- Vulkan RT APIs, Vulkan 1.3, OpenGL 4.6
- HDCP 2.3
- DisplayPort 1.4a, up to 4K at 240Hz or 8K at 60Hz with DSC, HDR
- As specified in HDMI 2.1a: up to 4K 240Hz or 8K 60Hz with DSC, Gaming VRR, HDR
PNY Part Number | VCG4060T16DFXPB1-E |
UPC Code | 751492783222 |
CUDA Cores | 4352 |
Clock Speed | 2310 MHz |
Boost Speed | 2550 MHz |
Memory Speed (Gbps) | 18 |
Memory Size | 16GB GDDR6 |
Memory Interface | 128-bit |
Memory Bandwidth (GB/sec) | 288 |
TDP | 165 W |
NVLink | Not Supported |

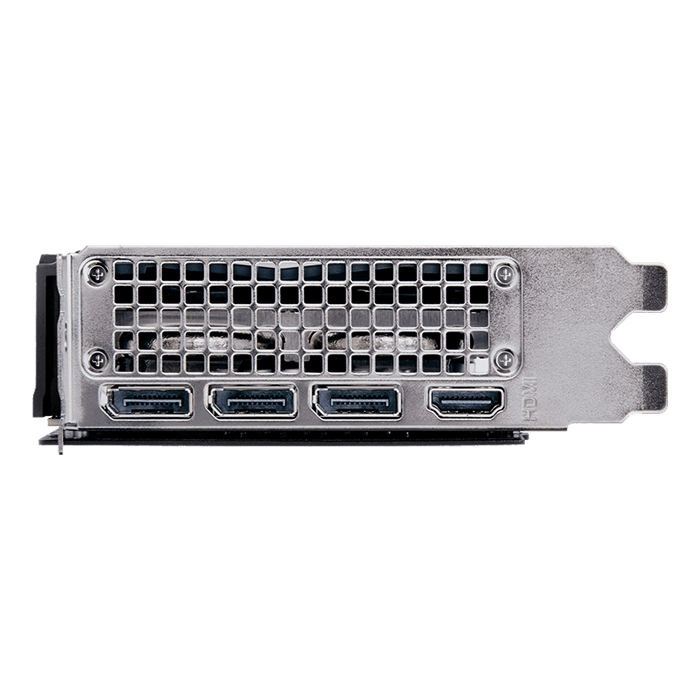

Outputs | DisplayPort 1.4a (x3), HDMI 2.1 |
Multi-Screen | 4 |
Resolution | 7680 x 4320 @120Hz (Digital)3 |

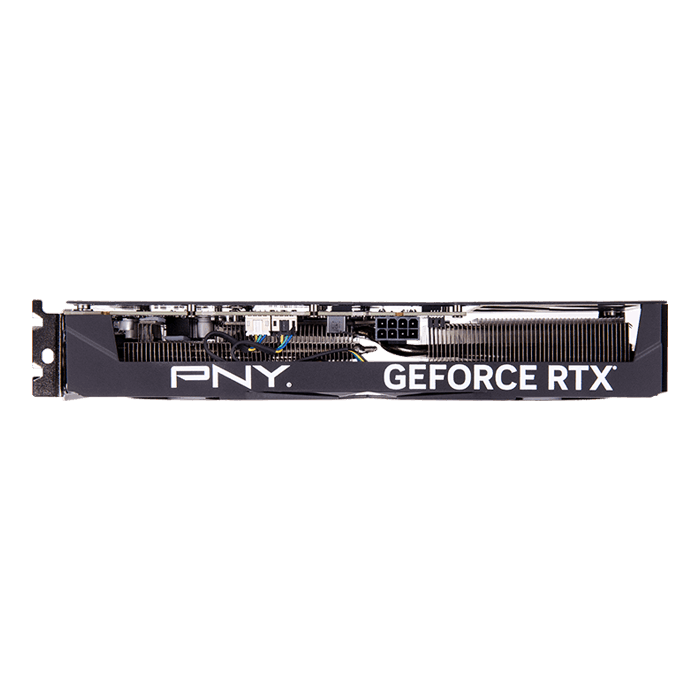

Power Input | One 8-pin |
Bus Type | PCI-Express 4.0 x16 (x8 active) |
Card Dimensions | 9.65" x 4.43" x 1.57"; Dual Slot |

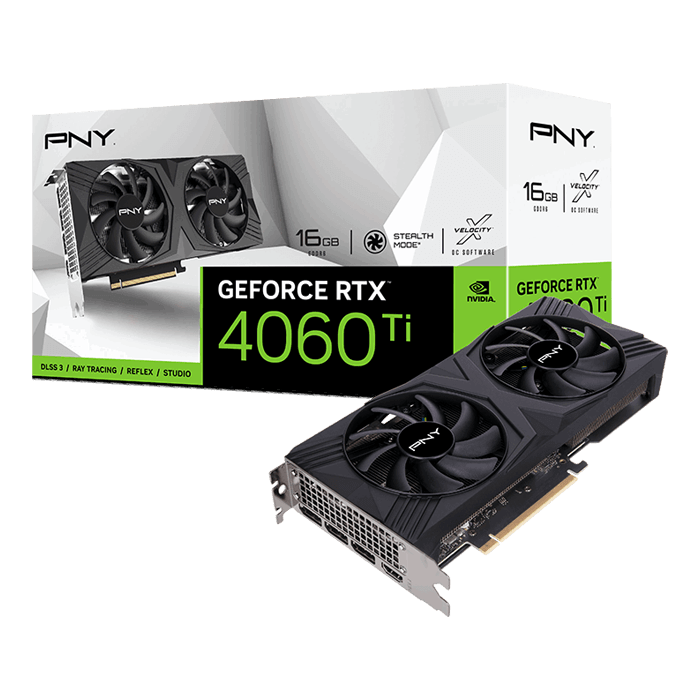

Box Dimensions | 12.78" x 6.77" x 3.54" |
