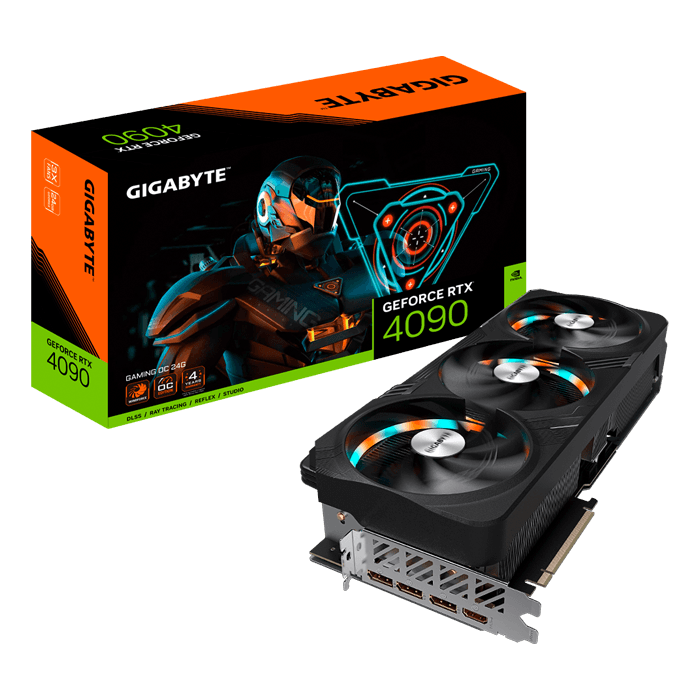

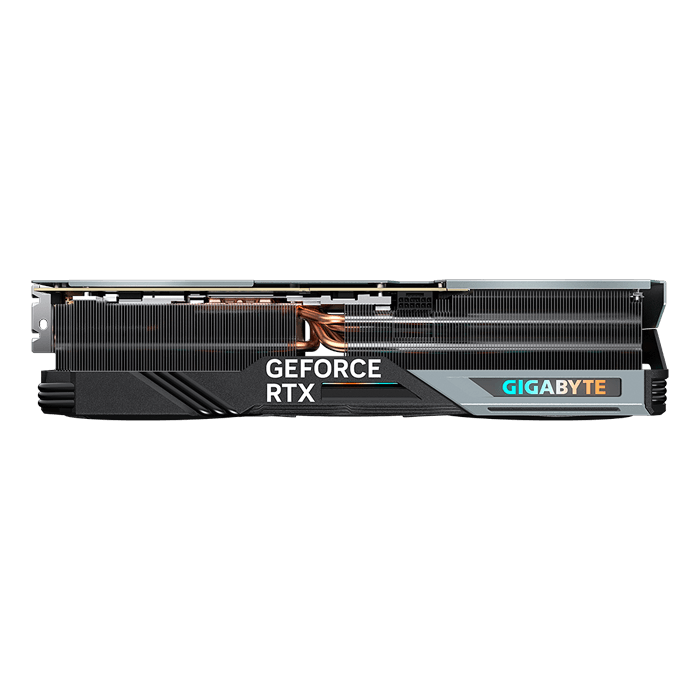

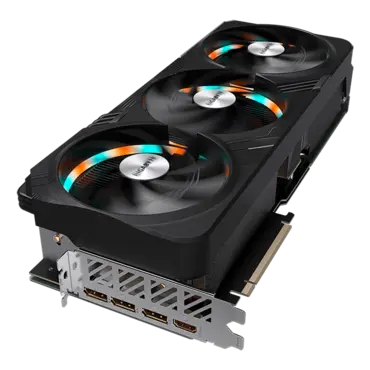

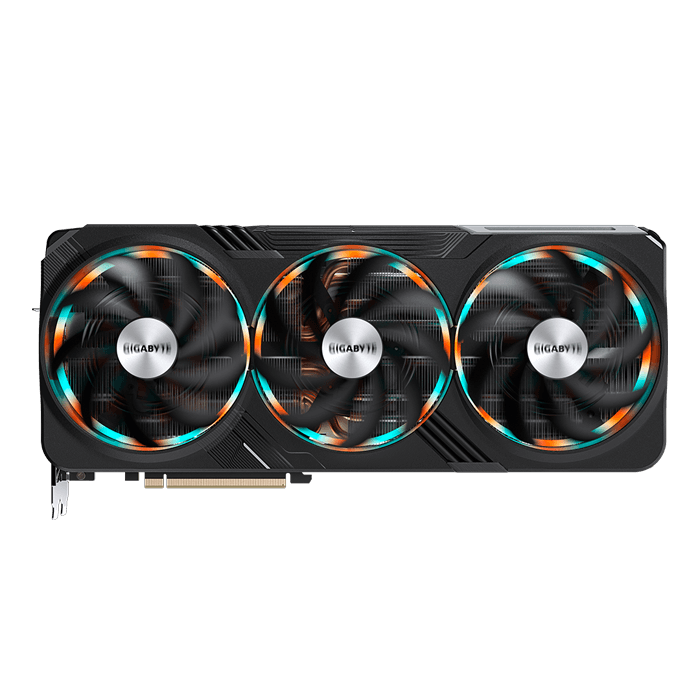

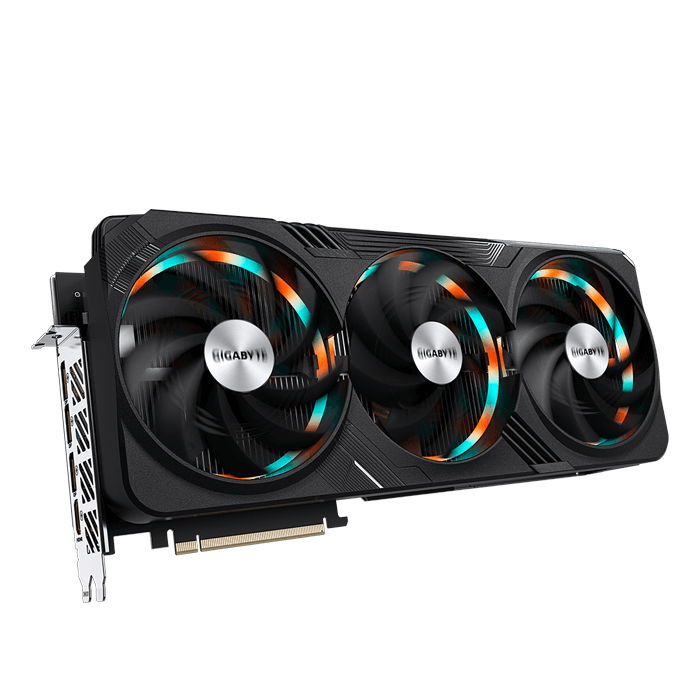

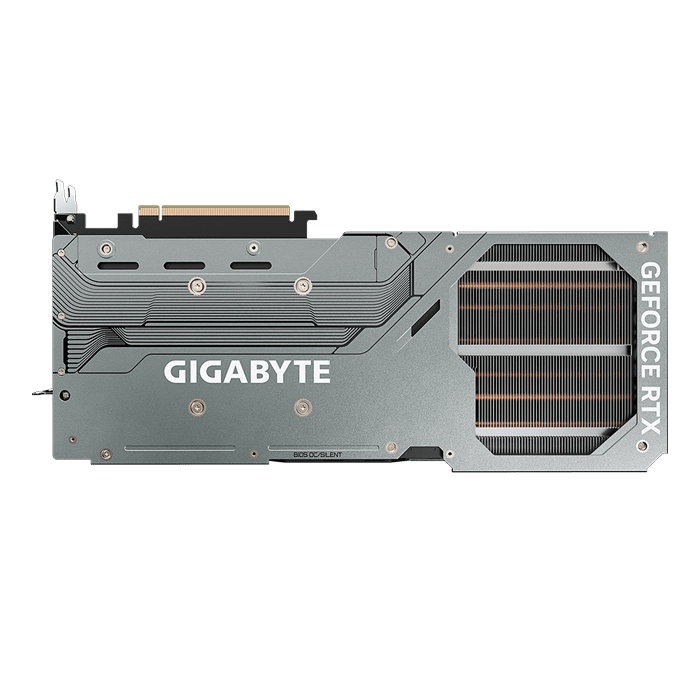

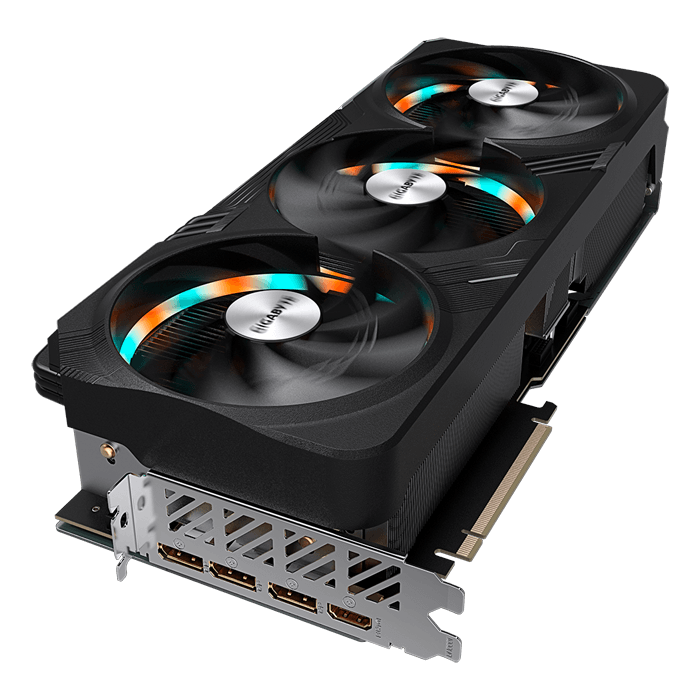

GIGABYTE GeForce RTX™ 4090 GAMING OC 24G (GV-N4090GAMING OC-24GD). The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
|Graphics Processing||GeForce RTX® 4090|
|Core Clock||2535 MHz (Reference Card: 2520 MHz)|
|Memory Clock||21 Gbps|
|Memory Size||24 GB|
|Memory Bus||384 bit|
|Card Bus||PCI-E 4.0 x 16|
|Digital max resolution||7680x4320|
|Card size||L=340 W=150.2 H=75.2 mm|
|Power Connectors||16 pin*1|

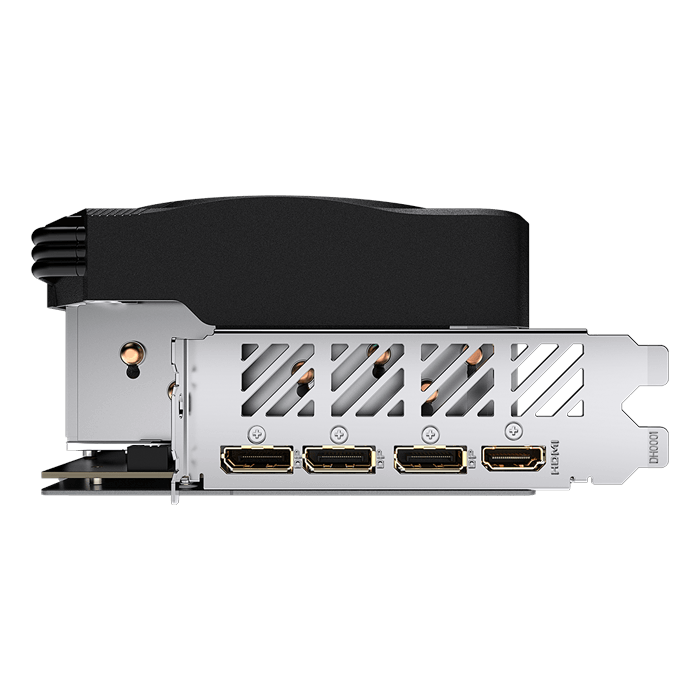

DisplayPort 1.4 *3
HDMI 2.1 *1
1. Quick guide
2. Warranty registration
3. Anti-sag bracket
4. Anti-sag bracket installation guide
5. One 16-pin to four 8-pin power adaptor
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
