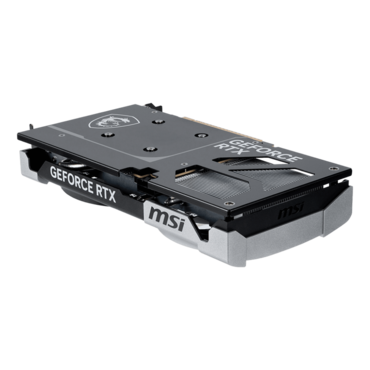

GeForce RTX™ 5060 Ti 16G VENTUS 2X PLUS, 2572 - 2587MHz, 16GB GDDR7, Graphics Card
- SKU: 19004645
- Manufacturer: MSI
- MPN: RTX 5060 Ti 16G VENTUS 2X PLUS
- Availability: CONTACT US
Price
$570.39
- Powered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clock:
Extreme Performance: 2587 MHz (MSI Center)
Boost: 2572 MHz - STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

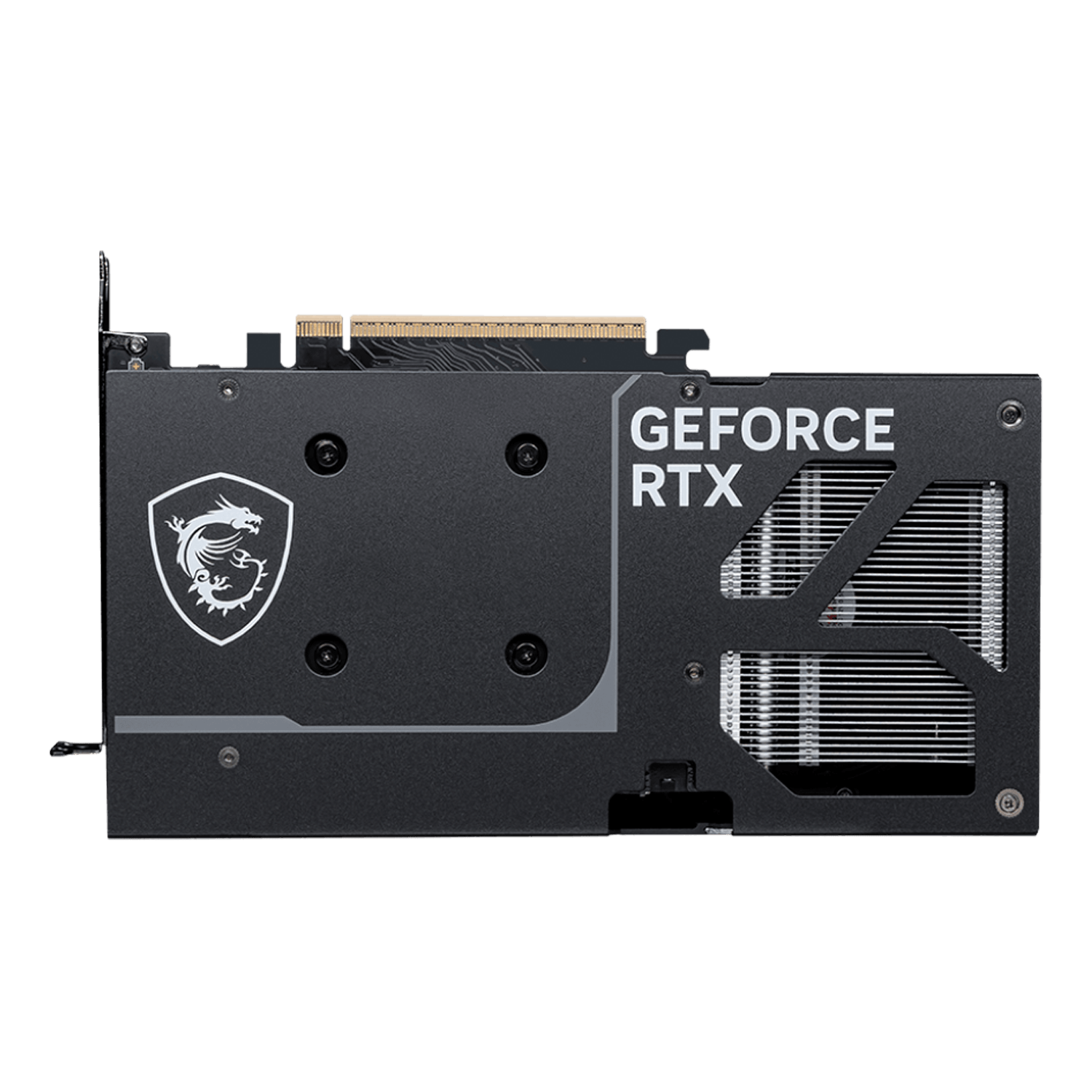

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Marketing Name | GeForce RTX™ 5060 Ti 16G VENTUS 2X PLUS |
| Model Name | G506T-16V2P |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks |
Extreme Performance: 2587 MHz (MSI Center) Boost: 2572 MHz |
| CUDA® CORES | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |
| Output |
DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 180 W |
| Power connectors | 8-pin x1 |
| Recommended PSU | 600 W |
| Card Dimension (mm) | 227 x 126 x 41 mm |
| Weight (Card / Package) | 600 g / 862 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
