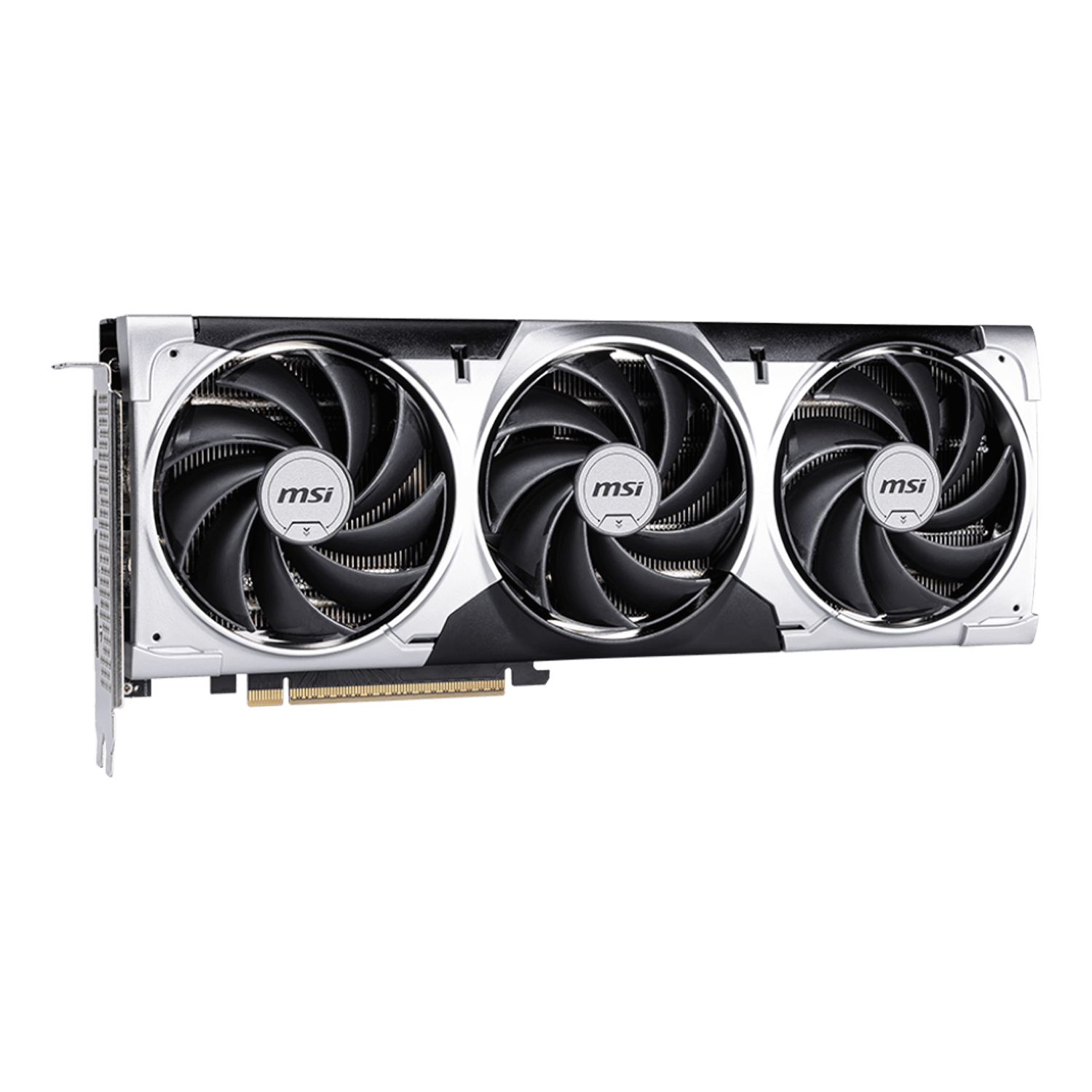

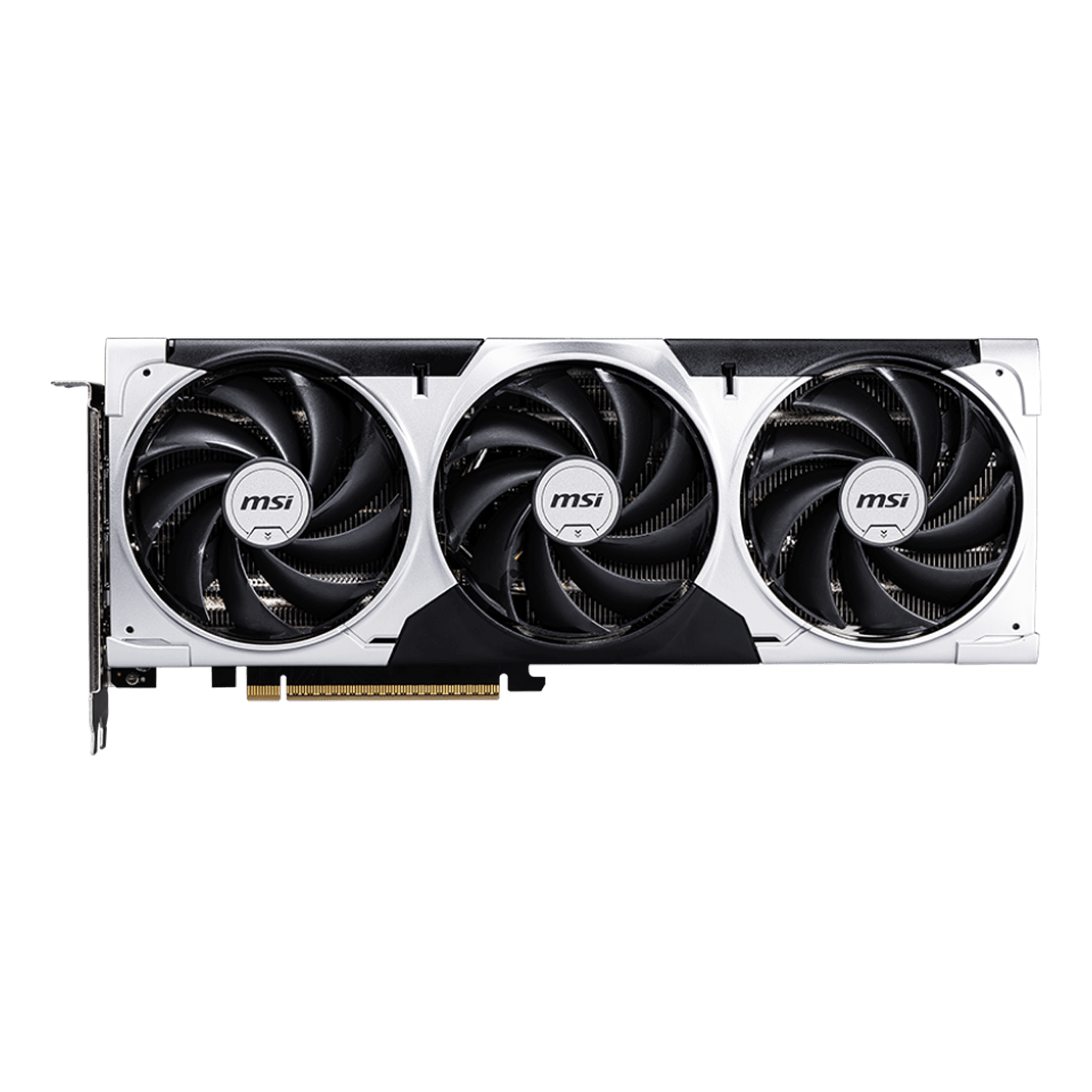

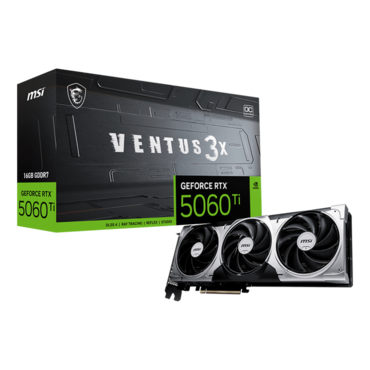

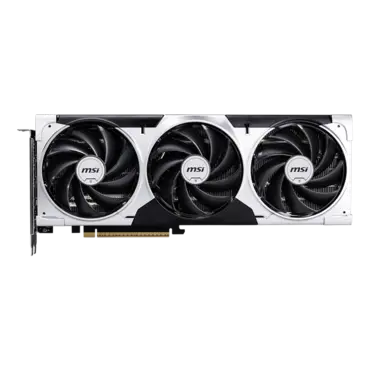

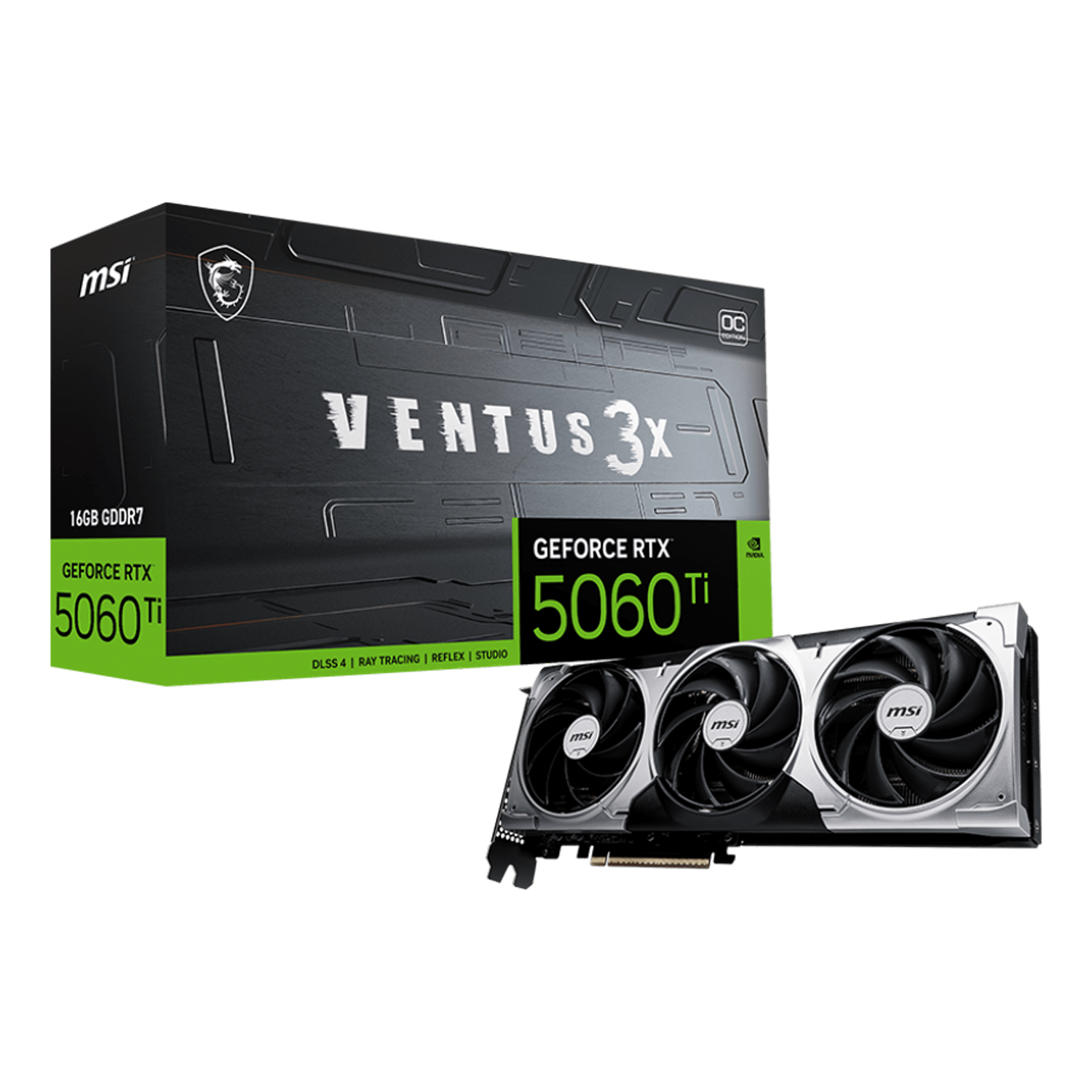

GeForce RTX™ 5060 Ti 16G VENTUS 3X OC, 2602 - 2617MHz, 16GB GDDR7, Graphics Card
- SKU: 18790861
- Manufacturer: MSI
- MPN: G506T-16V3C
- Availability: CONTACT US
GeForce RTX™ 5060 Ti 16G VENTUS 3X OC, 2602 - 2617MHz, 16GB GDDR7, Graphics Card
TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Solid Baseplate: A solid baseplate transfers heat from the GPU to all heat pipes for better cooling.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

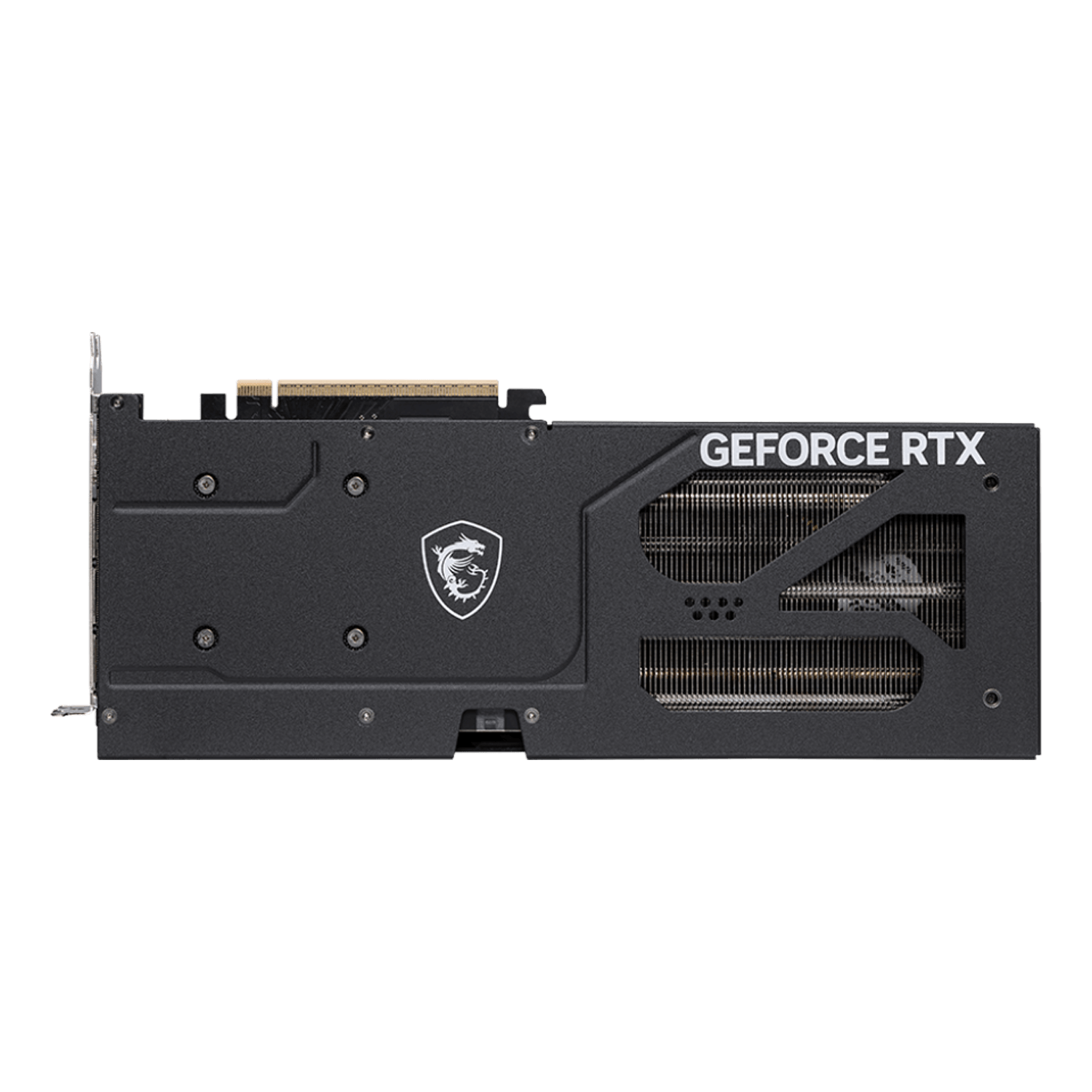

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Marketing Name | GeForce RTX™ 5060 Ti 16G VENTUS 3X OC |
| Model Name | G506T-16V3C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
| Cores | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |

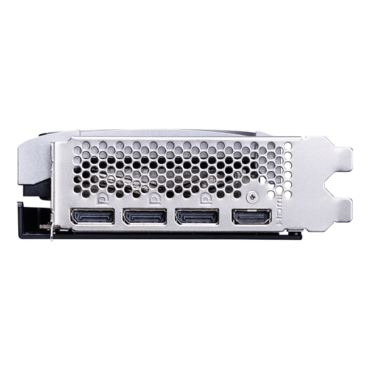

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 180 W |
| Power Connectors | 8-pin x 1 |
| Recommended PSU (W) | 600 W |
| Card Dimension (mm) | 306 x 121 x 44 mm |
| Weight (Card / Package) | 860 g / 1229 g |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC™ technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
| UPC | 0824142421048 |
