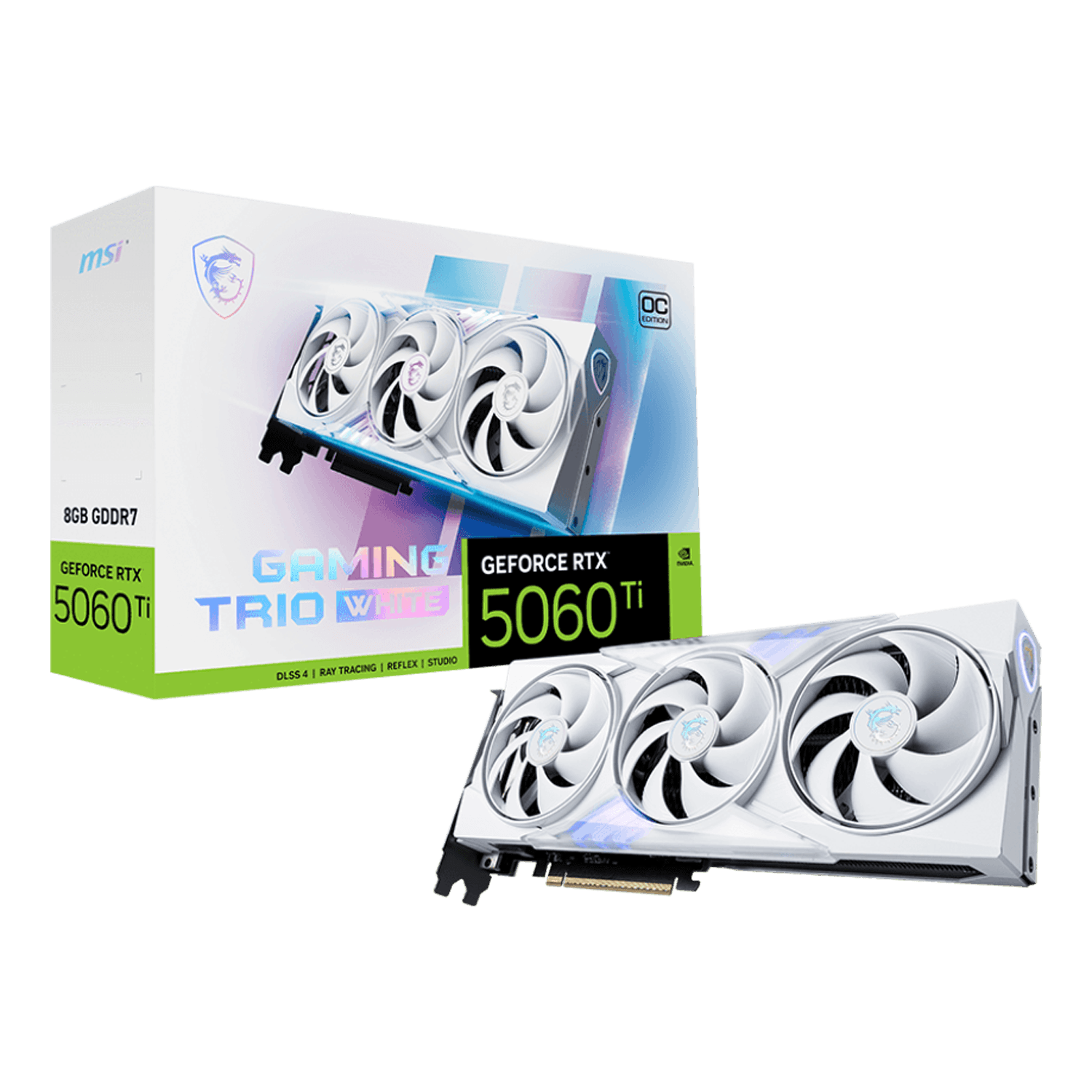

GeForce RTX™ 5060 Ti 8G GAMING TRIO OC WHITE, 2647 - 2662MHz, 8GB GDDR7, Graphics Card
Strength and Artistry
Building on MSI's heritage, GAMING TRIO embodies the passion of gamers with a sleek exterior that erupts with vibrant lights amidst bold lines and sharp edges. LED lighting is diffused through a frosted cover and a dragon totem that radiate energy.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clocks:
Extreme Performance: 2662 MHz (MSI Center)
Boost: 2647 MHz - TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

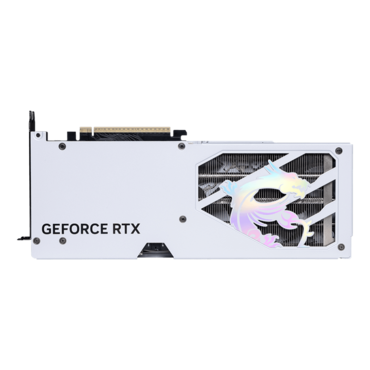

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Marketing Name | GeForce RTX™ 5060 Ti 8G GAMING TRIO OC WHITE |
Model Name | G506T-8GTCW |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
Interface | PCI Express® Gen 5 x16 (uses x8) |
Core Clocks | Extreme Performance: 2662 MHz (MSI Center) Boost: 2647 MHz |
Cores | 4608 Units |
Memory Speed | 28 Gbps |
Memory | 8GB GDDR7 |
Memory Bus | 128-bit |

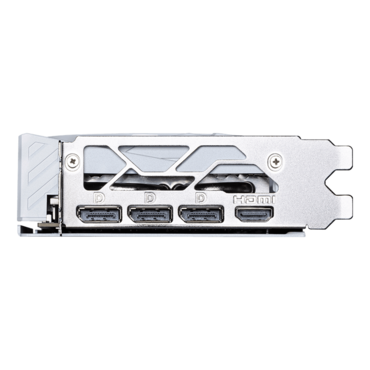

Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
HDCP Support | Yes |
Power Consumption | 180 W |
Power Connectors | 16-pin x 1 |
Recommended PSU (W) | 600 W |
Card Dimension (mm) | 300 x 125 x 44 mm |
Weight (Card / Package) | 839 g / 1345 g |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
G-SYNC™ Technology | Yes |
Digital Maximum Resolution | 7680 x 4320 |
UPC | 0824142422120 |
