- Powered by the NVIDIA Blackwell architecture and DLSS 4
- IceStorm 3.0 Advanced Cooling
- Vapor Chamber
- BladeLink Fans
- Reinforced Metal Mid-Frame
- FREEZE Fan Stop, Active Fan Control
- SPECTRA RGB Lighting

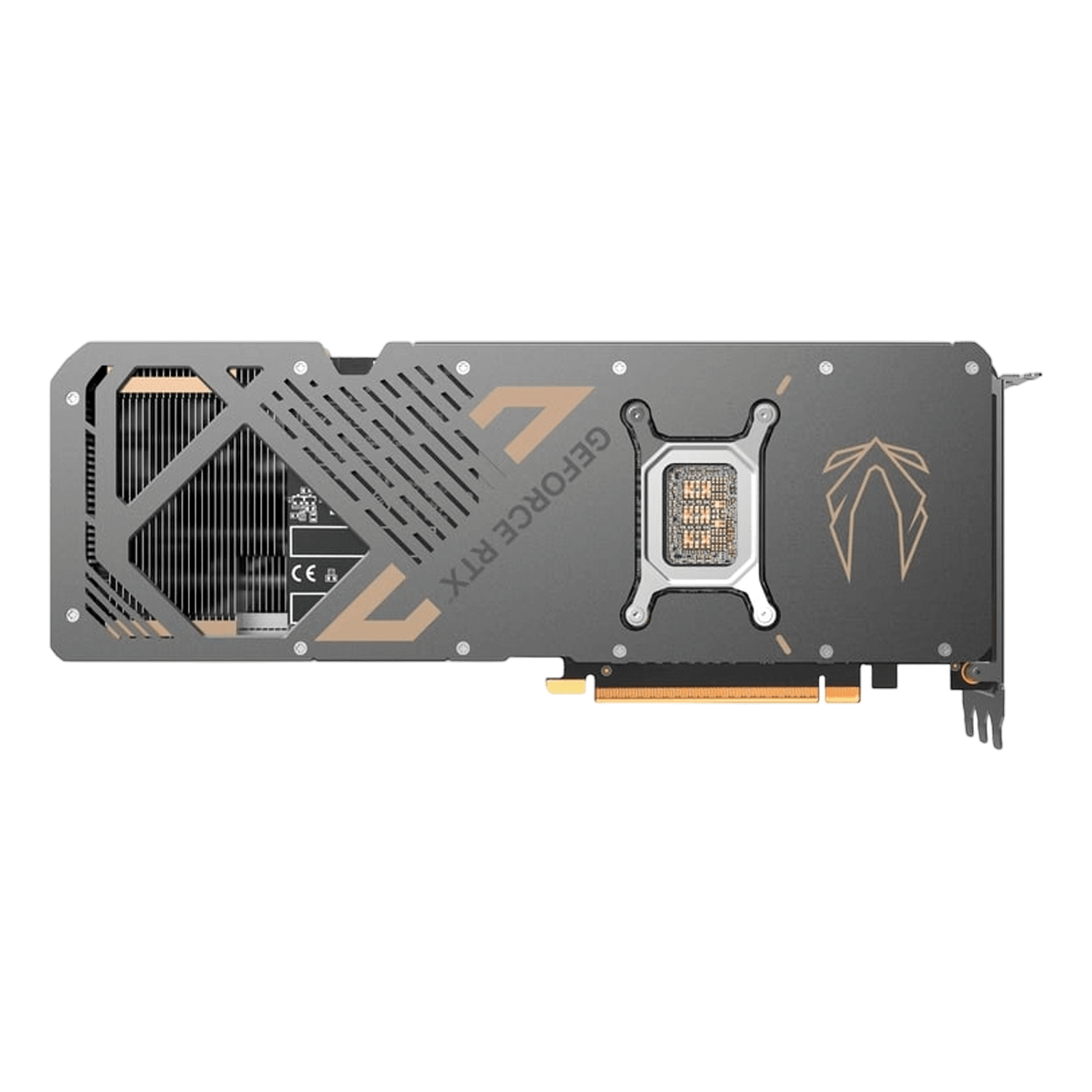

- Metal Backplate
- Bundled with GPU Support Bracket
- 12V-2x6 Safety Light
GPU | NVIDIA GeForce RTX 5080 GPU |
CUDA cores | 10752 |
Video Memory | 16GB GDDR7 |
Memory Bus | 256-bit |
Engine Clock | 2640 MHz |
Memory Clock | 30 Gbps |
PCI Express | PCI Express 5.0 x16 |
Display Outputs |
3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) 1 x HDMI® Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) |
HDCP Support | 2.3 |
Multi Display Capability | Quad Display |
Recommended Power Supply | 850W |
Power Consumption | 360W *High power consumption, please carefully read your PSU manual before installation. |
Power Input | 1 x 12v-2x6 power input |
DirectX | Microsoft DirectX® 12 Ultimate |
OpenGL | 4.6 |
Cooling | IceStorm 3.0 |
Slot Size | 2.5 |
SLI | No |
Supported OS | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
Card Length | 303.5mm x 115.8mm x 55.7mm / 11.9" x 4.6" x 2.2" |
Accessories |
User Manual 3 x 8-pin-to-16-pin cable GPU Support Stand |
