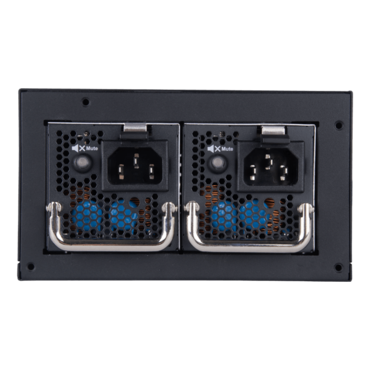

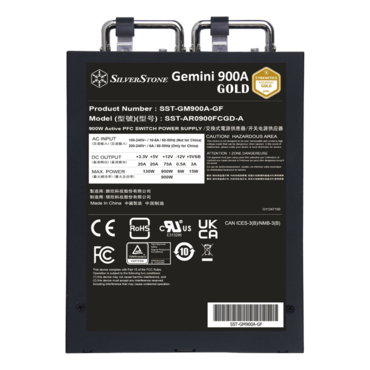

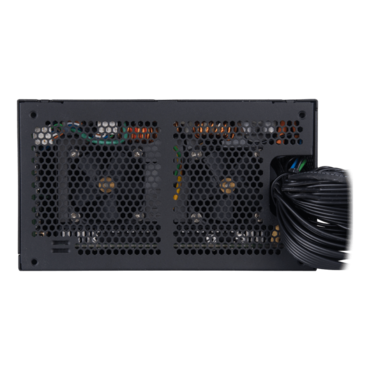

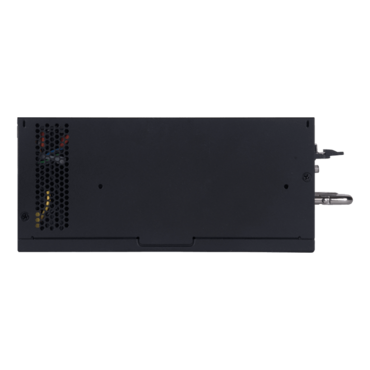

Gemini 900A, 80 PLUS Gold 900W, No Modular, ATX Redundant Power Supply
ATX form factor
Enables easy upgrade to desktop PCs, NAS/storage PCs and workstations into redundant systems.
Product No. | SST-GM900A-GF | ||||
Model (safety certification) | SST-AR0900FCGD-A | ||||
Color | Black | ||||
Max. DC Output | 900W | ||||
Power density | 918W per liter | ||||
Load Range | |||||
Output | +3.3V | +5V | +12V | +5VSB | -12V |
Max.(Amps) | 20A | 20A | 75A | 3.0A | 0.5A |
Min.(Amps) | 1A | 1A | 1A | 0.1A | 0A |
Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 200mV |
Combined +3.3V & +5V | 130W | ||||
Combined +12V | 900W | ||||
Input Voltage | 90 ~ 264 Vrms | ||||
Input Frequency Range | 47Hz ~ 63Hz | ||||
PFC | Active PFC (PF>0.9 at full load) | ||||
Efficiency | ≥89% & <91% overall efficiency | ||||
MTBF | 100,000 hours | ||||
Operating temperature | 0°C ~ 50°C | ||||
Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection |
||||
Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 4 x 8 / 6-Pin PCIe connectors 3 x SATA connectors 9 x 4-Pin Peripheral connectors 1 x 9-Pin USB connector |
||||
Cooling System | 40mm DC fans | ||||
Noise Level | 72 dBA maximum | ||||
LED indicator | |||||
Modular Status | indicator | ||||
No AC power to all PSU | OFF | ||||
AC present / only standby output on | Green blinking | ||||
Power supply DC output ON and OK | Solid green | ||||
Power supply failure | Solid red | ||||
Certification | Cybenetics Gold | ||||
Form factor | 1+1 ATX redundant | ||||
Dimension | 150mm (W) x 86mm (H) x 201mm (D) (Housing with bracket, without handle) 150mm (W) x 86mm (H) x 190mm (D) (Housing without bracket) 140mm (W) x 40mm (H) x 175mm (D) (Module only without handle) |
||||
Weight | 3.06 kg |
