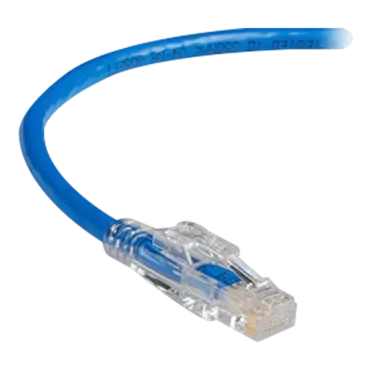

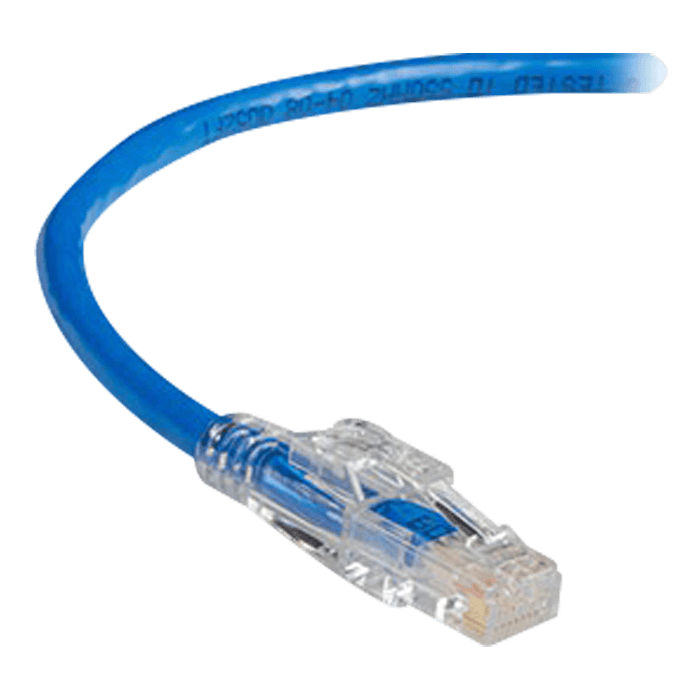

GigaTrue 3 3-ft Blue Network Patch Cable, Cat 6, TAA
TAA GigaTrue 3 CAT6 550-MHz Patch Cable (UTP), Lockable, Slimline, Blue, 3-ft. (0.9-m). This C6PC80-BL-03 cable is one-of-a-kind cables give you the ability to lock down critical network ports when you need to—without buying new patch cords.
- Use for all your network connections.
- Insert the optional Locking Pin to lock down ports.
- Tested to 550 MHz.
- Guaranteed for life!
- Prevent unauthorized personnel from disrupting vital network connections.
- Protect publicly accessible network connections.
- Avoid downtime from accidental disconnects.
- Cables stay locked in place—until YOU take them out.
- GigaTrue 3 Locking Pins
- Removal Tool
- GigaTrue CAT6 Patch Panels
- GigaTrue CAT6 Jacks
- GigaTrue2 CAT6 Jacks
- GigaStation Wallplates
- GigaStation2 Wallplates
- GigaStation2 Surface-Mount Housings
ACR | 20.5 dB at 100 MHz; 0 dB at 250 MHz |
ACRF | 27.8 dB at 100 MHz; 19.8 dB at 250 MHz 13.0 at 550 MHz |
Capacitance Unbalance | Pair to ground: 330 pF/100 m, maximum |
Conductor Gauge | 24 AWG, stranded, UTP, CM |
DC Resistance Unbalance | 5% maximum |
Diameter | 0.22" (5.7 mm) |
Delay Skew | 40 ns/100 m (328 ft.) maximum |
Jacket | PVC, CM |
Impedance | 100 ± 15 ohms at 100 MHz; 100 ± 22 ohms at 100-550 MHz |
Insertion Loss | 23.8 dB at 100 MHz; 39.3 dB at 250 MHz; 62.2 dB at 550 MHz |
Mutual Capacitance | 56 pF/m, maximum |
NEXT | 44.3 dB at 100 MHz; 38.3 dB at 250 MHz; 33.2 dB at 550 MHz |
Propagation Delay | 550 MHz, 535.5 ns/100 m maximum |
PS-ACR | 18.5 dB at 100 MHz |
PS-ACRF | 24.8 dB at 100 MHz; 16.8 at 250 MHz; 10.0 at 550 MHz |
PS-NEXT | 42.3 dB at 100 MHz; 36.3 dB at 250 MHz; 31.2 dB at 550 MHz |
Resistance (Maximum) | 9.09 ohms/100 m (328 ft.) |
Return Loss | 19.0 dB at 100 MHz; 15.6 dB at 250 MHz |
Standards | TIA/EIA-568-C.2 Category 6; ISO/IEC 11801 Class E; UL® 444; EN71-3, EPA 3050B; 2002/95/EC RoHS |
Structured Return Loss | 22.5 dB at 100 MHz; 20.5 dB at 250 MHz |
