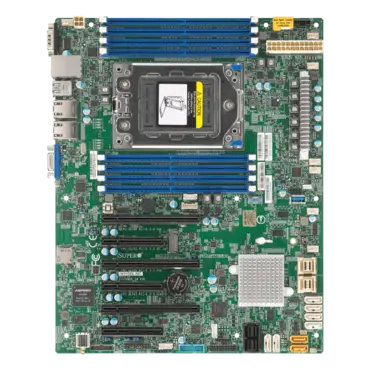

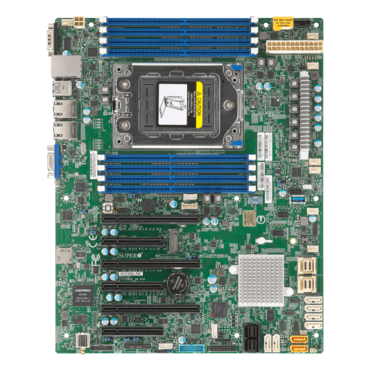

H11SSL-i, AMD SoC, SP3, DDR4-2666 1TB RDIMM / 8, M.2 SATA, SuperDOM, VGA, GbLAN / 2, ATX OEM

SKU: 11741796

Manufacturer: SUPERMICRO

MPN: MBD-H11SSL-I-B

Availability: Available


Price: $398.09
or as low as $13/month
Quantity:
  • Single AMD EPYC™ 7000-Series Processor
  • 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
  • Expansion slots: 3 PCI-E 3.0 x16 3 PCI-E 3.0 x8
  • 16 SATA3, 1 M.2
  • Dual Gigabit Ethernet LAN Ports
  • ASPEED AST2500 BMC graphics
  • Up to 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) Up to 4 USB 2.0 ports (2 rear + 2 via header)
  • 7 PWM 4-pin Fans with tachometer status monitoring
Product SKUs
MBD-H11SSL-i-B
  • H11SSL-i (Bulk Pack)
Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.5cm x 24.4cm)
Processor/Chipset
CPU
  • Single AMD EPYC™ 7000-series Processor
  • Socket SP3
Cores
  • Up to 32 Cores
Chipset
  • System on Chip
System Memory
Memory Capacity
  • 8 DIMM slots
  • Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
  • SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • 2 1GbE LAN via Intel® I210
  • 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 16 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports
    (2 rear + 2 via header + 1 Type A)
  • 4 USB 2.0 ports (2 rear + 2 via header)
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • 1 TPM 2.0 header
Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x8
  • 3 PCI-E 3.0 x16
M.2
  • Interface: PCI-E 3.0 x4
  • Form factor: 2280, 22110
Chassis ( Optimized for H11SSL-i )
1U
  • SC512F-350B1
  • SC515-350
  • SC813MFTQC-350CB2
  • SC813MFTQC-R407CB
2U
  • SC213AC-R1K23LPB
  • SC216BE1C4-R1K23LPB
  • SC825TQC-R740LPB
  • SC826BE1C4-R1K23LPB
3U
  • SC836BE1C-R1K23B
4U?/?Tower
  • SC846BE1C-R1K23B
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Management
Software
  • Super Doctor 5
  • Watch Dog
  • NMI
  • SUM
  • IPMI 2.0, KVM with dedicated LAN
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby
  • CPU switching voltage regulator
  • Supports system management utility
  • VBAT
FAN
  • Up to 7-fan status tachometer monitoring
  • Up to 7 4-pin fan headers
  • Dual Cooling Zone
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 7x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • UID
Operating Environment / Compliance
Environmental Specifications
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
