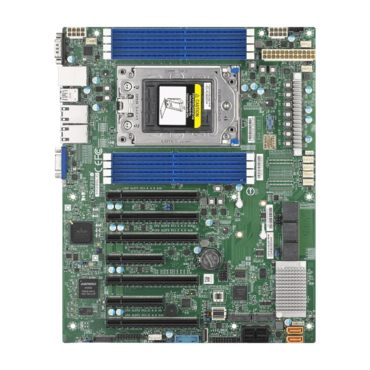

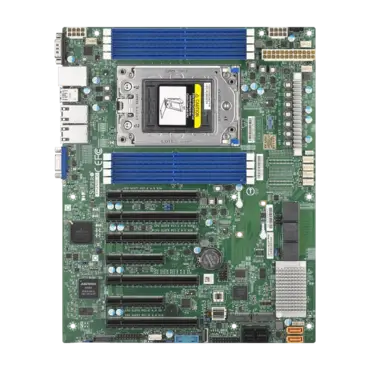

H12SSL-C-B, AMD SoC, SP3, DDR-3200 2TB 3DS LRDIMM / 8, VGA, GbLAN / 2, ATX OEM

SKU: 13754778

Manufacturer: SUPERMICRO

MPN: MBD-H12SSL-C-B

Availability: Low Stock


Price: $645.09
or as low as $21/month
Quantity:
  • Single AMD EPYC™ 7002 Series Processor
  • 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
  • Expansion slots:
    • 5 PCI-E 4.0 x16
    • 2 PCI-E 4.0 x8
    • M.2 Interface: 2 PCI-E 4.0 x4
    • M.2 Form Factor: 2280, 22110
    • M.2 Key: M-key
  • 8 SATA3, Broadcom 3008 SAS3 (12 Gbps) controller for 8 SAS3 ports, 2 M.2
  • 2 Gigabit Ethernet LAN Ports
  • ASPEED AST2500 BMC graphics
  • Up to 6 USB 3.0 ports (4 rear + 2 via header)
  • 7 PWM 4-pin Fans with tachometer status monitoring
Product SKUs
MBD-H12SSL-C
  • H12SSL-C
MBD-H12SSL-C-O
  • H12SSL-C (Retail Pack)
Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.5cm x 24.4cm)
Processor/Chipset
CPU
  • Single AMD EPYC™ 7002 series Processor
  • Socket SP3
Cores
  • Up to 64 Cores
Chipset
  • System on Chip
System Memory
Memory Capacity
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
  • SATA3 (6 Gbps)
SAS
  • Broadcom 3008 SAS3 (12 Gbps) controller
  • RAID 0, 1, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • Dual gigabit LAN via Broadcom BCM5720
  • 1 Realtek RTL8211F PHY (dedicated IPMI)
VGA
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 8 SATA3 (6 Gbps) ports
SAS
  • 8 SAS3 (12 Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.0 ports
    (4 rear + 2 via header)
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connectors
  • 1 TPM 2.0 header
Expansion Slots
PCI-Express
  • 5 PCI-E 4.0 x16
  • 2 PCI-E 4.0 x8
M.2
  • Interface: 2 PCI-E 4.0 x4
  • Form factor: 2280, 22110
  • Key: M-key
Chassis ( Optimized for H12SSL-C )
1U
  • SC813MFTQC-350CB2
  • SC813MFTQC-R407CB
2U
  • SC213AC-R1K23LPB
  • SC216BE1C4-R1K23LPB
  • SC825MBTQC-R802LPB
  • SC825TQC-R802LPB
  • SC826BE1C4-R1K23LPB
3U
  • SC835TQC-R802B
  • SC836BE1C-R1K23B
4U
  • SC846BE1C-R1K23B
System BIOS
BIOS Type
  • AMI 256Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Management
Software
  • SuperDoctor 5
  • Watch Dog
  • NMI
  • SUM
  • IPMI 2.0, KVM with dedicated LAN
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby
  • CPU switching voltage regulator
  • Supports system management utility
  • VBAT
FAN
  • Up to 7-fan status tachometer monitoring
  • Up to 7 4-pin fan headers
  • Dual Cooling Zone
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 7x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • UID
Operating Environment / Compliance
Environmental Specifications
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
