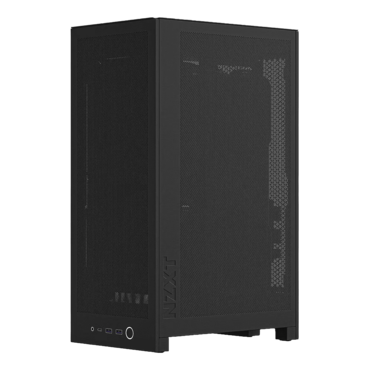

H2 Flow, Tempered Glass, No PSU, Mini-ITX, Black, Mini Tower Case
- SKU: 19902348
- Manufacturer: NZXT
- MPN: CI-H21FB-01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
H2 Flow, Tempered Glass, No PSU, Mini-ITX, Black, Mini Tower Case
The H2 Flow is a mighty, compact vertical mini-ITX case designed to save space while showcasing top-tier components. Smart cable management, tool-less access, dual top fans, and a premium PCIe 5.0 riser cable make the building experience fast and simple.
- Liquid Cooling Support: Handles up to a 280?mm radiator, ensuring lower temperatures so system performance consistently thrives.
- 331 mm GPU Capacity: Fits modern graphics cards with ease, delivering top-tier power in a clean, compact 20.7?L footprint.
- Ultra-Fine Mesh Panels: Mesh on all sides maximizes air intake while filtering dust, keeping core components clear and running optimally.
- Hybrid Glass-and-Mesh Side: Unique two-piece panel features tempered glass and mesh, displaying the build without compromising thermal efficiency.
- Two F120Q CV (3-pin DC) Fans Included: Two pre-installed 120 mm fans on the top deliver convenient and immediate exhaust.
- Tool-Less Access Panels: Panels pop off without tools, making every upgrade, cleaning session, or adjustment quick and completely seamless.
- Integrated Cable Routing: Built-in routing points and included Velcro straps simplify organization, leading to a much tidier look and superior internal airflow.
- PCIe 5.0 Riser Cable: A premium riser cable is included, making vertical GPU mounting easy while providing reliable, lightning-fast bandwidth.
| Dimensions | |
| Height | 435 mm (17.1 in) |
| Width | 181 mm (7.1 in) |
| Depth | 263 mm (10.4 in) |
| Weight | 4.55 kg (10.03 lb) |
| Volume | 20.7 L |
| General | |
| Enclosure Type | Small Form Factor Case |
| Motherboard Compatibility | Mini-ITX |
| Rear-Connecting Motherboard Support (BTF, Project Zero) | No |
| Power Supply Type | SFX, SFX-L |
| Materials | Steel, tempered glass |
| Fan Support | |
| Total Fan Mounts | 4 x 120 mm / 2 x 140 mm |
| Front | 2 x 120 mm / 2 x 140 mm |
| Top | 2 x 120 mm |
| Radiator Support | |
| Front | Up to 280 mm |
| Clearance | |
| CPU Cooler Height | Up to 75 mm |
| GPU Length | Up to 331 mm |
| GPU Thickness | Up to 65 mm |
| GPU Width | Up to 150 mm |
| PSU Length | Up to 130 mm |
| Front Radiator + Fan Thickness | Up to 60 mm |
| Panels | |
| Front | Steel (mesh) |
| Right Side | Steel (solid and mesh) |
| Left Side | Tempered glass and mesh panel |
| Front I/O | |
| USB 3.2 Type-A | 2 |
| USB 3.2 Gen2x2 Type-C | 1 |
| Headset Jack | 1 |
| Expansion Slots | |
| Standard-Vertical | 3 |
| Drive Bays | |
| 2.5" | 2 (Up to 8.5 mm) |
| 3.5" | - |
| Cable Management | |
| Fixed Velcro Straps | Yes |
| Included Zip Ties | Yes |
| Riser Cable | |
| Compatibility | PCIe Gen 5.0 x16 |
| Length | 260 mm |
| Fan Specs | |
| Model | F120Q (Case Version) |
| Quantity | 2 |
| Speed | 1,350 ± 150 RPM |
| Airflow | 60.2 CFM |
| Static Pressure | 1.05 mmH2O |
| Noise | 24.1 dBA |
| Fan Connector | 3-pin |
| Product Info | |
| Model Number | CI-H21FB-01 |
| UPC | 810074848404 |
| EAN | 5056547208800 |
