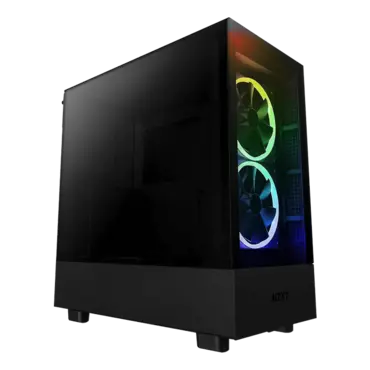

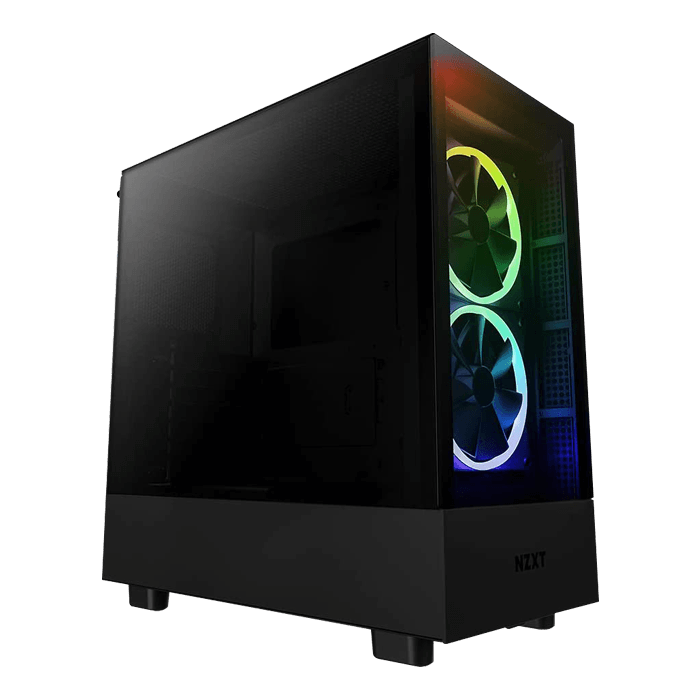

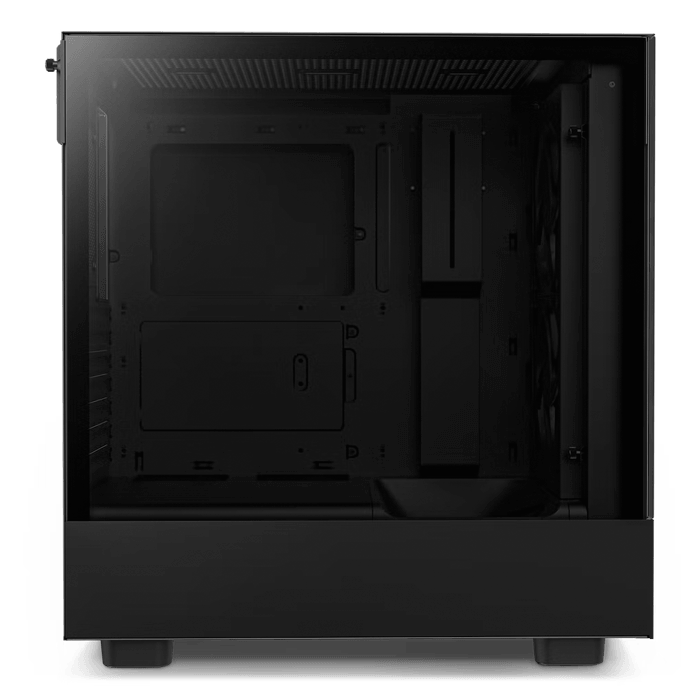

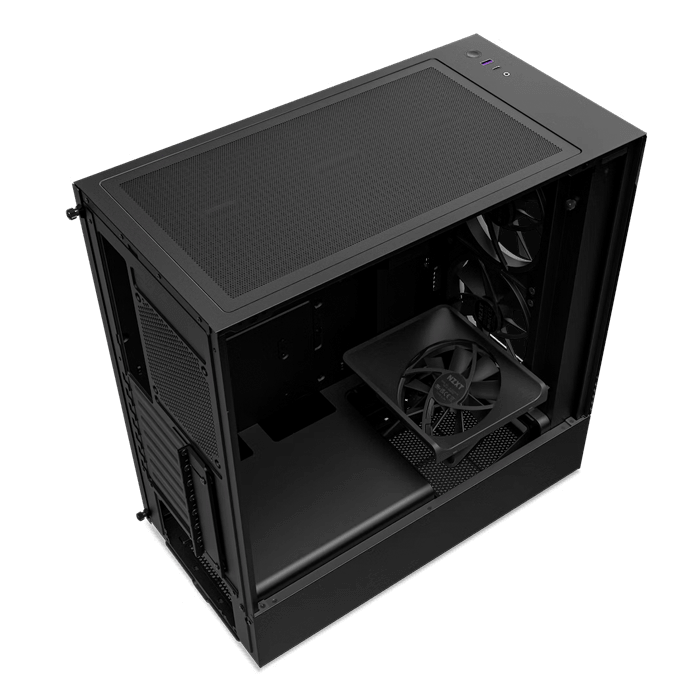

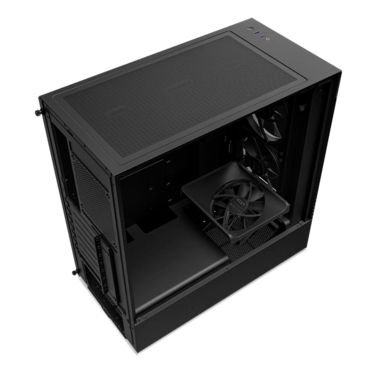

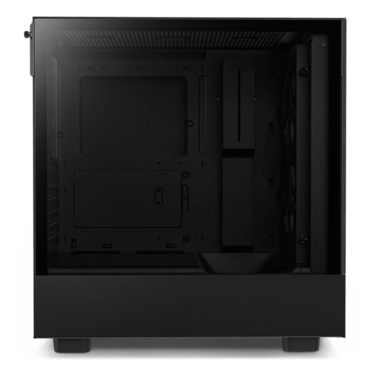

H5 Elite, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
Quantity:
- SKU: 15227739
- Manufacturer: NZXT
- MPN: CC-H51EB-01
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$176.59
The H5 Elite Black (CC-H51EB-01) features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.
- Pre-installed fan on bottom inside panel is angled to cool GPU
- Tempered glass front panel and built-in RGB controller
- Perforated top panel provides optimal ventilation
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels
- Front panel supports 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F140 RGB fans & one F120Q fan
| KEY SPECS | |
| Motherboard Support: | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
| Enclosure Type: | Mid-Tower |
| Case Material: | SGCC Steel, Tempered Glass |
| DIMENSIONS | |
| Height: | 464 mm (With Feet) |
| Width: | 227 mm |
| Depth: | 446 mm |
| Weight: | 8.1 kg |
| COMPATIBILITY & CLEARANCE | |
| Max CPU Cooler Clearance: | Up to 165mm |
| Max GPU Clearance: | Up to 265mm |
| Front Radiator Clearance: | 45mm |
| Cable Management: | Up to 23mm |
| FRONT I/O PORTS | |
| USB 3.2 Gen 1 Type-A: | 1 |
| USB 3.2 Gen 2 Type-C: | 1 |
| Headset Audio Jack: | 1 |
| INCLUDED ACCESSORIES | |
| Installation screws: | 1 |
| Cable ties: | 10 |
| RGB Lighting Controller: | NZXT RGB Connector 3 (Support up to 120 LEDs) |
| EXPANSION SLOTS | |
| Standard: | 7 |
| DRIVE BAYS | |
| 2.5": | 1+1 |
| 3.5": | 1 |
| FAN SUPPORT | |
| Front: | 2 x F Series RGB 140mm (Case Version) included |
| Top: | 2 x 120mm |
| Rear: | 1 x 120mm |
| Bottom: | 1 x F Series Quiet 120mm (Case Version) included |
| Filters: | All Air Intakes |
| RADIATOR SUPPORT | |
| Front: | Up to 280mm |
| Top: | Up to 240mm |
| Rear: | Up to 120mm |
| FAN SPECS | |
| Model: | F140 RGB Fan |
| Speed: | 500 - 1800 RPM |
| Airflow: | 24.85 - 89.48 CFM |
| Static Pressure: | 0.94 - 3.39 mm-H2O |
| Noise: | 20 - 32.5 dBA |
| Fan Connector: | 4-pin |
| FAN SPECS | |
| Model: | F120Q Airflow Fan (Case Version) |
| Speed: | 1200 ± 240 RPM |
| Airflow: | 62.18 CFM |
| Static Pressure: | 1.05 mm-H2O |
| Noise: | 25.1 dBA |
| Fan Connector: | 3-pin |
| GENERAL | |
| Warranty: | 2 Years |
| Model Number: | CC-H51EB-01(Black) |
| UPC: | 815671019455 (Black) |
| EAN: | 5060301697014 (Black) |
