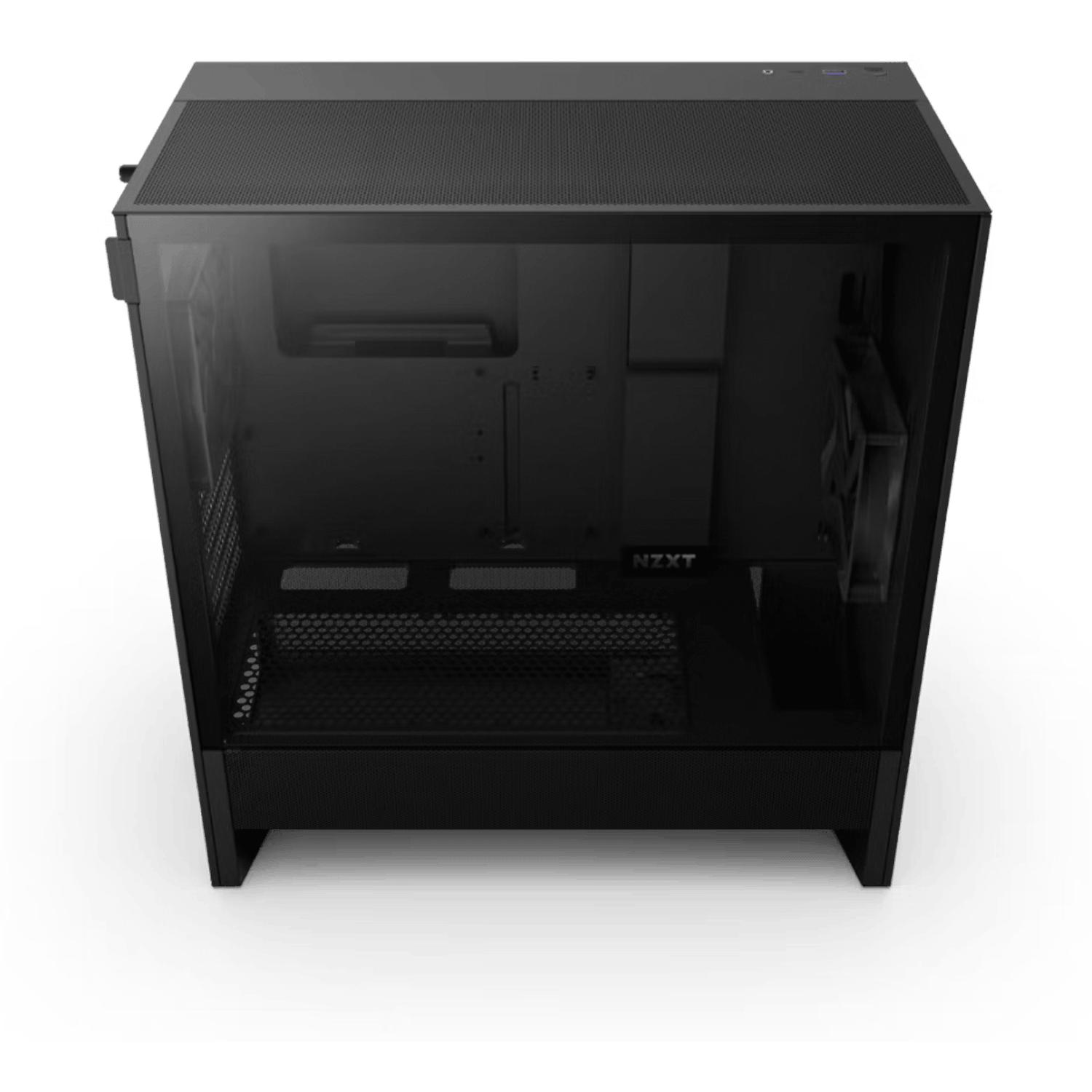

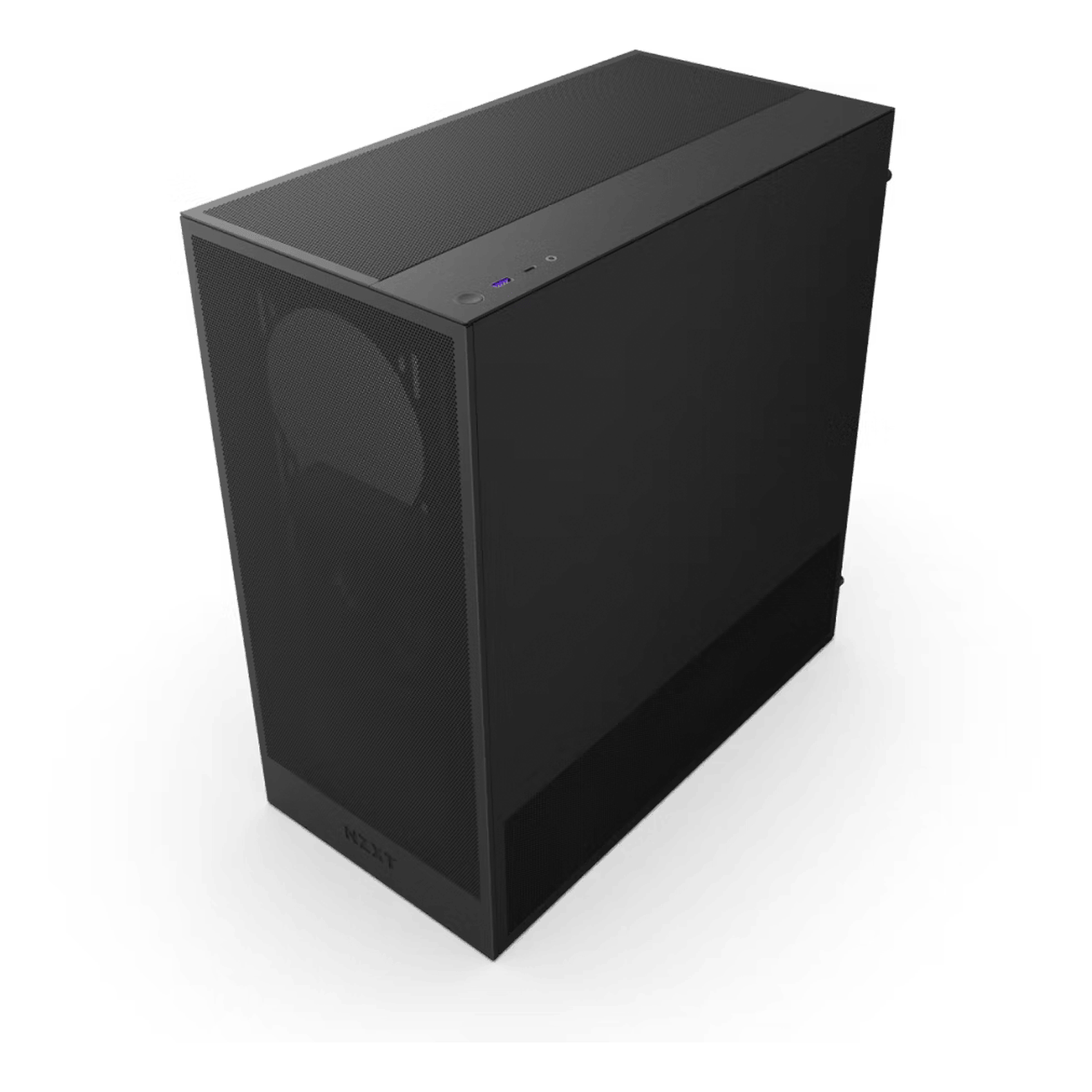

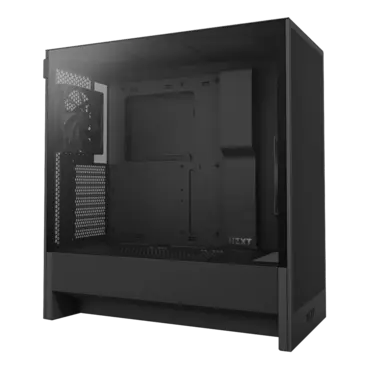

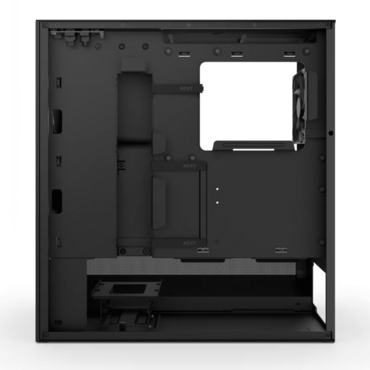

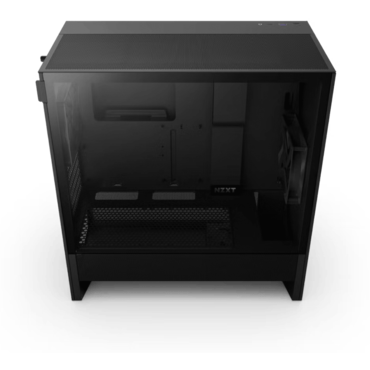

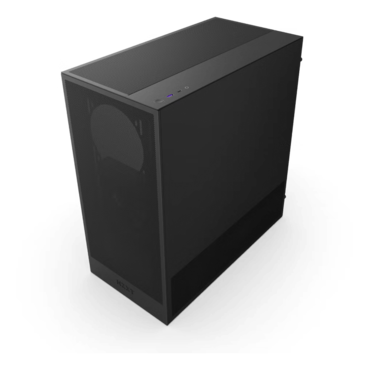

H5 Flow (2024), Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
- SKU: 17959275
- Manufacturer: NZXT
- MPN: CC-H52FB-01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$130.15
| Key Specs | |
| Motherboard Support | E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) |
| Dimensions | |
| Height (with feet) | 465 mm / 18.31 in |
| Width | 225 mm / 8.86 in |
| Depth | 430 mm / 16.93 in |
| Weight | 7.28 kg / 16.04 lb |
| Compatibility & Clearance | |
| CPU Cooler Height | Up to 170 mm |
| GPU Length | Up to 410 mm |
| PSU Length | Up to 200 mm |
| Cable Management | Up to 28.7 mm |
| Top Radiator | Up to 240 mm (280 mm with low-profile memory) |
| Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness | Up to 55 mm |
| Front Ports | |
| USB 3.2 Type-A | 1 |
| USB 3.2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5" | 2 |
| 3.5" | 1 |
| Fan Support | |
| Front | 3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included) |
| Top | 2 x 120 mm / 2 x 140 mm |
| Bottom | 2 x 120 mm |
| Rear | 1 x 120 mm (1 x F120Q Case Version included) |
| Radiator Support | |
| Front | Up to 360 mm |
| Top | Up to 240 mm (280mm with low-profile memory only) |
| Fan Specs | |
| Model | F120Q (Case Version) |
| Speed | 1,350 ± 150 RPM |
| Airflow | 60.2 CFM |
| Static | 1.05 mm-H2O |
| Noise | 24.1 dBA |
| Fan Connector | 3-pin |
| General | |
| Warranty | 2 years |
| Model Number | CC-H52FW-01(White) / CC-H52FB-01 (Black) |
| UPC | 810074845908 (White) / 810074845915 (Black) |
| EAN | 5056547205847 (White) / 5056547205854 (Black) |
