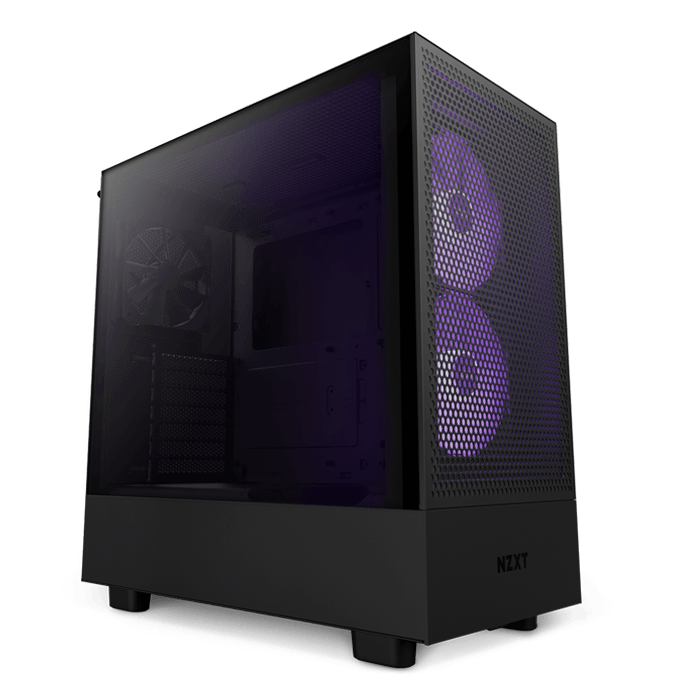

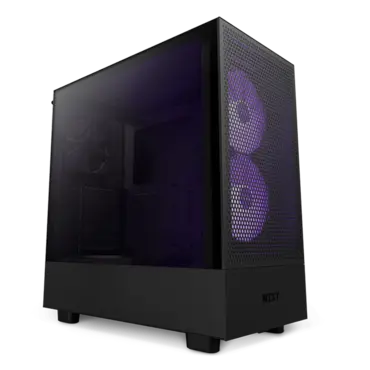

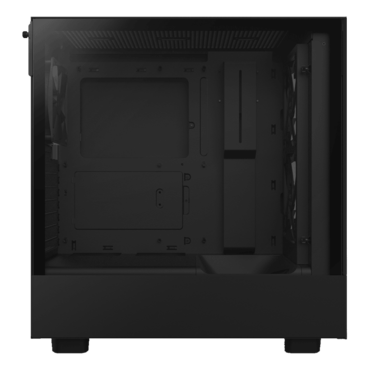

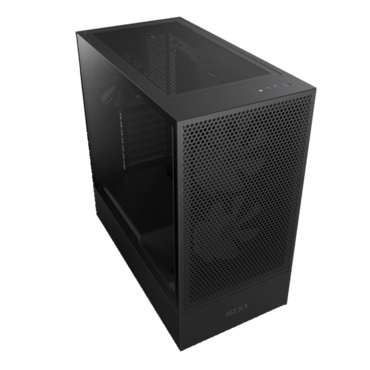

H5 Flow RGB, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
Quantity:
- SKU: 16064011
- Manufacturer: NZXT
- MPN: CC-H51FB-R1
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$166.73
H5 Flow RGB, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
The H5 Flow RGB features two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans so this compact mid-tower stays cooler than cool. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

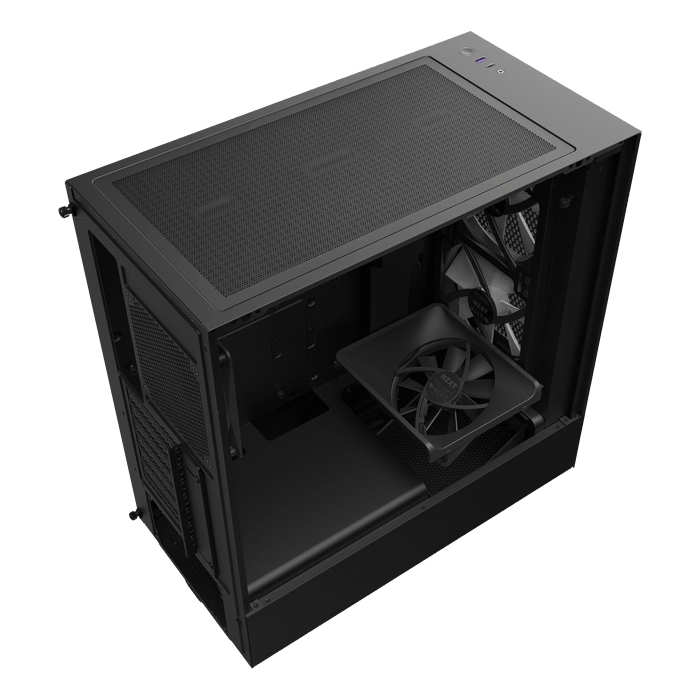

- Dedicated fan on bottom inside panel is angled to cool GPU
- Perforated front panel provides optimal ventilation
- Intuitive cable management system with wide channels, hooks, & straps
- Tool less access to front and side panels
- Front panel supports up to 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans
- Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
- Two color options (Matte Black, Matte White)
| Key Specs | |
| Motherboard Support: | Mini-ITX, Micro-ATX, ATX |
| Enclosure Type: | Mid-Tower |
| Case Material (White): | SGCC Steel, Ultra-clear Tempered Glass |
| Case Material (Black): | SGCC Steel, Dark Tinted Tempered Glass |
| Dimensions | |
| Height (With Feet): | 464mm |
| Height (Without Feet): | 448mm |
| Width: | 227mm |
| Depth: | 446mm |
| Weight: | 7.36 kg |
| Compatibility & Clearance | |
| Max CPU Cooler Clearance: | Up to 165mm |
| Max GPU Clearance: | Up to 365mm |
| Front Radiator Clearance: | 45mm |
| Cable Management: | Up to 23mm |
| PSU Clearance: | Up to 185mm |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A: | 1 |
| USB 3.2 Gen 2 Type-C: | 1 |
| Headset Audio Jack: | 1 |
| Expansion Slots | |
| Standard: | 7 |
| Vertical : | 0 |
| Drive Bays | |
| 2.5": | 1+1 |
| 3.5": | 1 |
| Fan Support | |
| Front: | 2 x 120mm / 2 x 140mm (2 x F Series RGB Core 140mm (Case Version) included) |
| Top: | 2 x 120mm |
| Rear: | 1 x F Series Quiet 120mm (Case Version) included |
| Bottom: | 1 x F Series Quiet 120mm (Case Version) included |
| Filters: | All Air Intakes |
| Radiator Support | |
| Front: | Up to 280mm |
| Top: | Up to 240mm |
| Rear: | Up to 120mm |
| Fan Specs | |
| Model: | F140 RGB Core Fan (Case Version) |
| Speed: | 1200 ± 120 RPM |
| Airflow: | 61.74 CFM |
| Static Pressure: | 2.06mm-H2O |
| Noise: | 29.05 dBA |
| Fan Connector: | 3-pin |
| Fan Specs | |
| Model: | F120Q Airflow Fan (Case Version) |
| Speed: | 1200 ± 120 RPM |
| Airflow: | 62.18 CFM |
| Static Pressure: | 1.05 mm-H2O |
| Noise: | 25.1 dBA |
| Fan Connector: | 3-pin |
| General | |
| Warranty: | 2 Years |
| Model Number: | CC-H51FW-R1 (White) / CC-H51FB-R1 (Black) |
| UPC: | 810074843645 (White) / 810074843638 (Black) |
| EAN: | 5056547203560 (White) / 5056547203553 (Black) |
