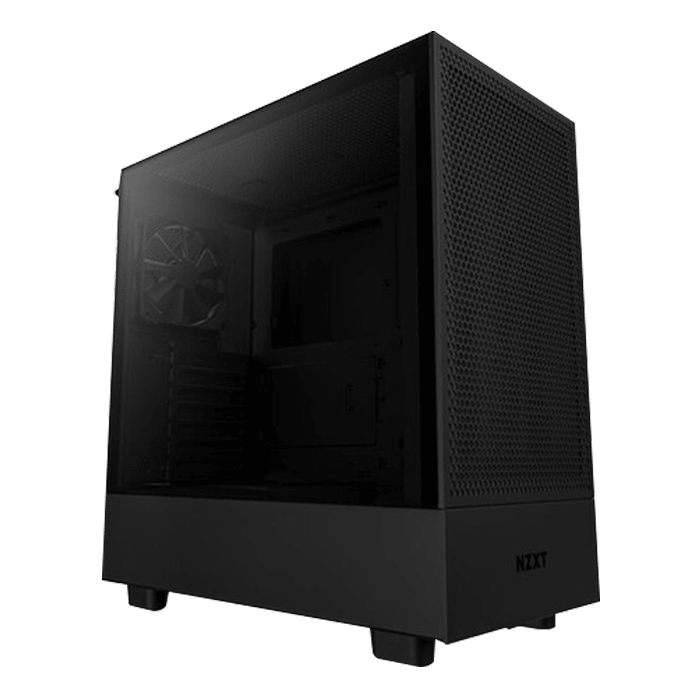

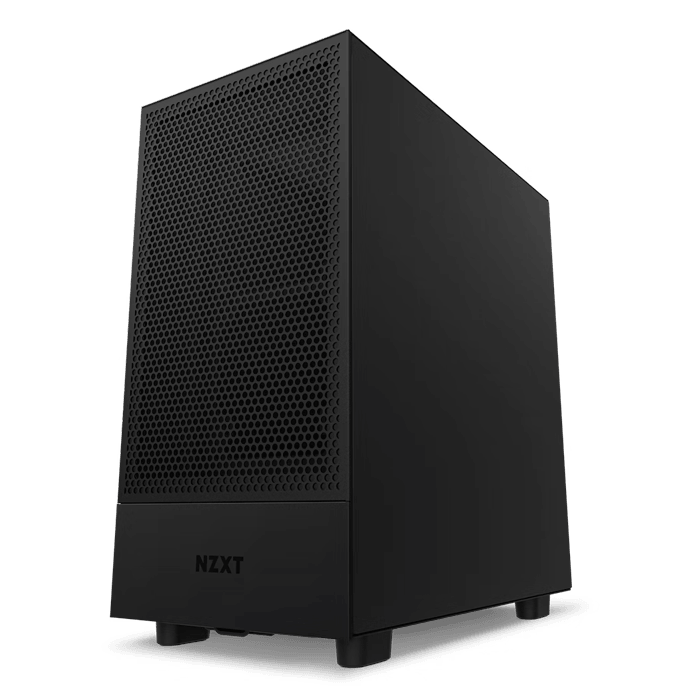

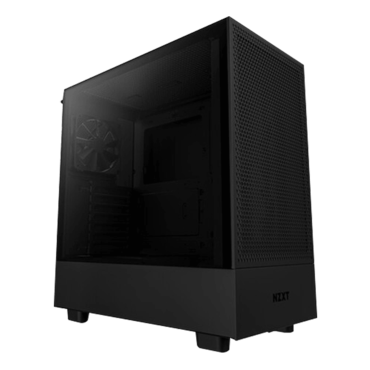

The H5 Flow Black (CC-H51FB-01) features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
KEY SPECS | |
Motherboard Support: | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
Enclosure Type: | Mid-Tower |
Case Material: | SGCC Steel, Tempered Glass |
DIMENSIONS | |
Height: | 464mm (With Feet) |
Width: | 227mm |
Depth: | 446mm |
Weight: | 7.01 kg |
COMPATIBILITY & CLEARANCE | |
Max CPU Cooler Clearance: | Up to 165mm |
Max GPU Clearance: | Up to 265mm |
Front Radiator Clearance: | 45mm |
Cable Management: | Up to 23mm |
FRONT I/O PORTS | |
USB 3.2 Gen 1 Type-A: | 1 |
USB 3.2 Gen 2 Type-C: | 1 |
Headset Audio Jack: | 1 |
EXPANSION SLOTS | |
Standard: | 7 |
Vertical: | 0 |
DRIVE BAYS | |
2.5": | 1+1 |
3.5": | 1 |
FAN SUPPORT | |
Front: | 2 x 120mm / 2 x 140mm |
Top: | 2 x 120mm |
Rear: | 1 x F Series Quiet 120mm (Case Version) included |
Bottom: | 1 x F Series Quiet 120mm (Case Version) included |
RADIATOR SUPPORT | |
Front: | Up to 280mm |
Top: | Up to 240mm |
Rear: | Up to 120mm |
FAN SPECS | |
Model: | F120Q (Case Version) |
Speed: | 1200 ± 240RPM |
Airflow: | 62.18 CFM |
Static: | 1.05 mm - H2O |
Noise: | 25.1 dBA |
Fan Connector: | 3-pin |
GENERAL | |
Warranty: | 2 Years |
Model Number: | CC-H51FB-01 (Black) |
UPC: | 815671019431 (Black) |
EAN: | 5060301696987 (Black) |
