H5 Flow, Tempered Glass, No PSU, ATX, White, Mid Tower Case
Quantity:
- SKU: 15227924
- Manufacturer: NZXT
- MPN: CC-H51FW-01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$130.83

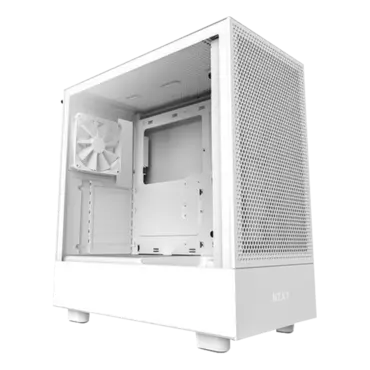

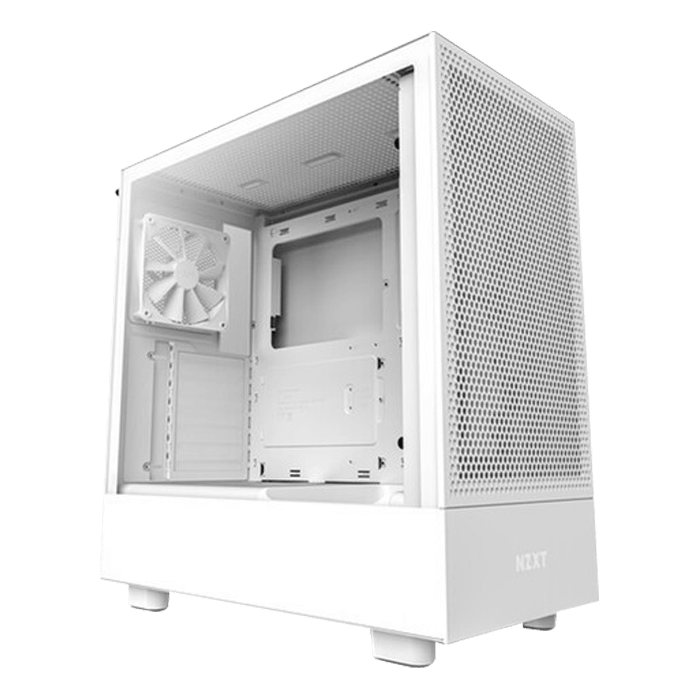

The H5 Flow White (CC-H51FW-01) features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
- Dedicated fan on bottom inside panel is angled to cool GPU
- Perforated front panel provides optimal ventilation
- Intuitive cable management system with wide channels, hooks, & straps
- Tool less access to front and side panels
- Front panel supports up to 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F120Q fans
| KEY SPECS | |
| Motherboard Support: | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
| Enclosure Type: | Mid-Tower |
| Case Material: | SGCC Steel, Tempered Glass |
| DIMENSIONS | |
| Height: | 464mm (With Feet) |
| Width: | 227mm |
| Depth: | 446mm |
| Weight: | 7.01 kg |
| COMPATIBILITY & CLEARANCE | |
| Max CPU Cooler Clearance: | Up to 165mm |
| Max GPU Clearance: | Up to 265mm |
| Front Radiator Clearance: | 45mm |
| Cable Management: | Up to 23mm |
| FRONT I/O PORTS | |
| USB 3.2 Gen 1 Type-A: | 1 |
| USB 3.2 Gen 2 Type-C: | 1 |
| Headset Audio Jack: | 1 |
| EXPANSION SLOTS | |
| Standard: | 7 |
| Vertical: | 0 |
| DRIVE BAYS | |
| 2.5": | 1+1 |
| 3.5": | 1 |
| FAN SUPPORT | |
| Front: | 2 x 120mm / 2 x 140mm |
| Top: | 2 x 120mm |
| Rear: | 1 x F Series Quiet 120mm (Case Version) included |
| Bottom: | 1 x F Series Quiet 120mm (Case Version) included |
| RADIATOR SUPPORT | |
| Front: | Up to 280mm |
| Top: | Up to 240mm |
| Rear: | Up to 120mm |
| FAN SPECS | |
| Model: | F120Q (Case Version) |
| Speed: | 1200 ± 240RPM |
| Airflow: | 62.18 CFM |
| Static: | 1.05 mm - H2O |
| Noise: | 25.1 dBA |
| Fan Connector: | 3-pin |
| GENERAL | |
| Warranty: | 2 Years |
| Model Number: | CC-H51FW-01 (White) |
| UPC: | 815671019448 (White) |
| EAN: | 5060301697007 (White) |
