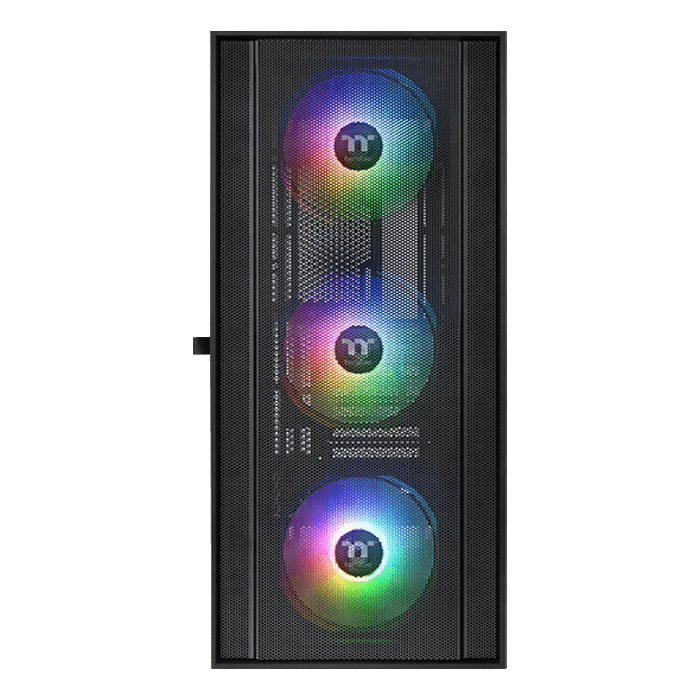

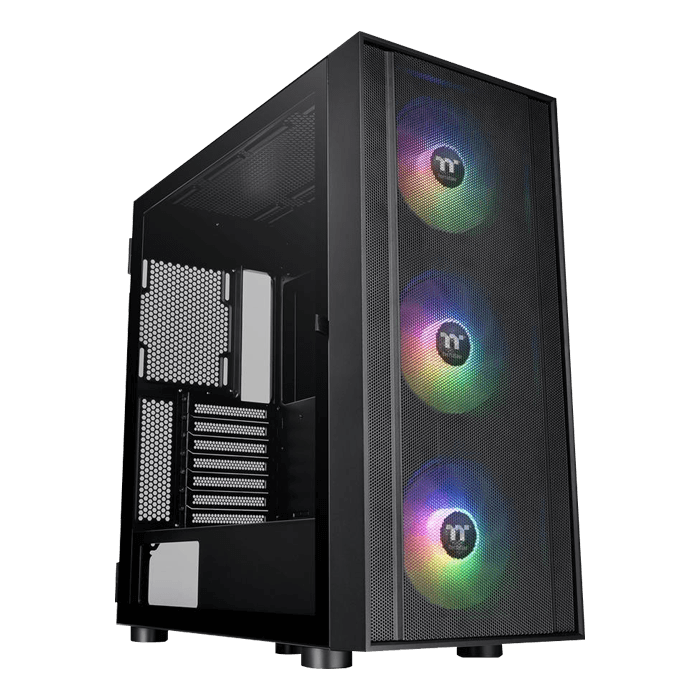

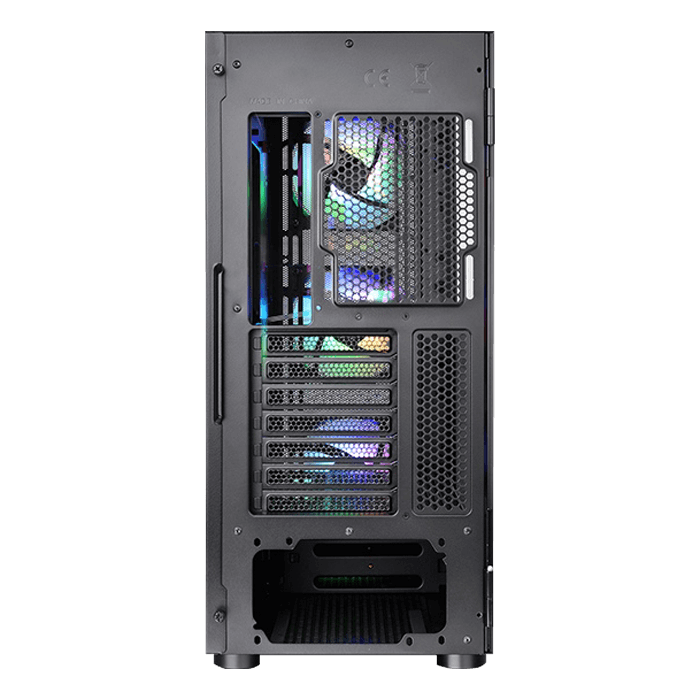

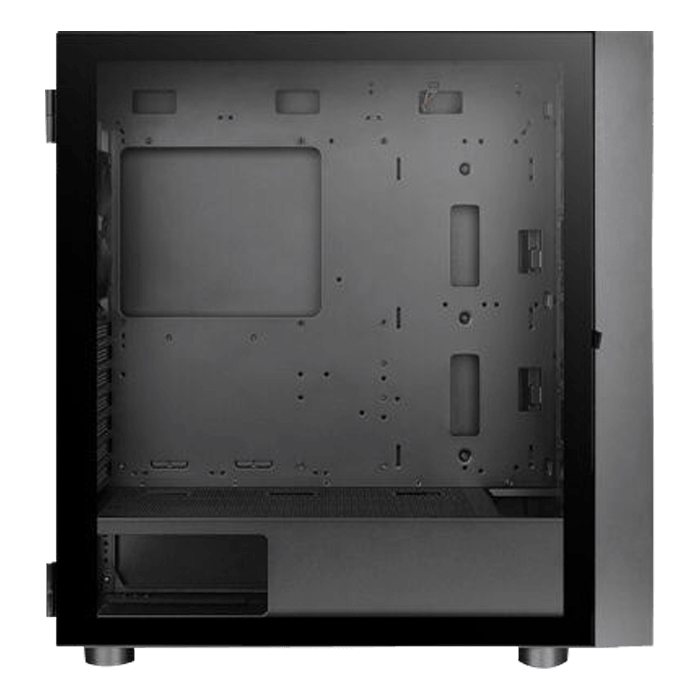

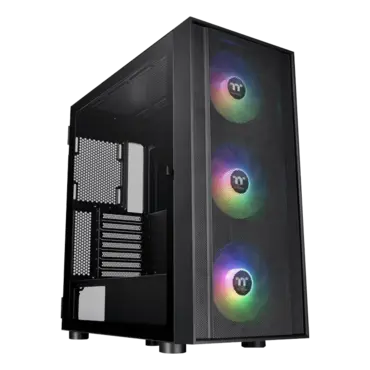

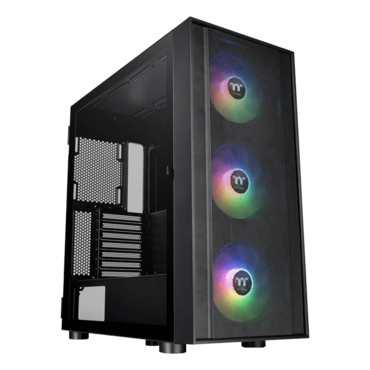

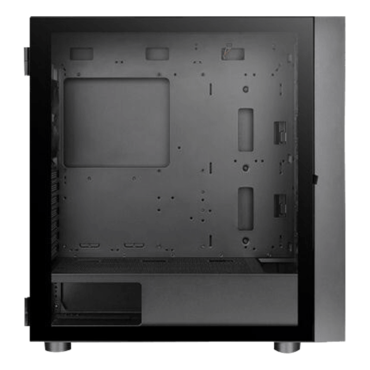

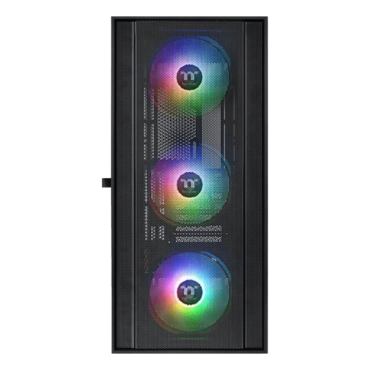

H570 TG ARGB, Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
Quantity:
- SKU: 16152138
- Manufacturer: THERMALTAKE
- MPN: CA-1T9-00M1WN-01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$127.91
H570 TG ARGB, Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
H570 TG ARGB mid-tower chassis is the latest edition of our H series. It can support up to E-ATX (12“ x 13”) Motherboards, and it comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, which can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be fitted in the chassis and up to 360mm radiator can be placed at the top and the front of the H570 TG ARGB mid-tower chassis.
| P/N | CA-1T9-00M1WN-01 |
| Series | H Series |
| Model | H570 TG ARGB |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 487 x 216 x 463.6 mm (19.2 x 8.5 x 18.3 inch) |
| Net Weight | 7.5 kg / 16.5 lbs. |
| Side Panel | 4 mm Tempered Glass x 1 |
| Color | Black |
| Material | SPCC |
| Cooling System | Front(intake): 120 x 120 x 25 mm ARGB fan (1000rpm, 27.2 dBA) x 3 |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| I/O Port | USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 375mm PSU length limitation: 180mm |
