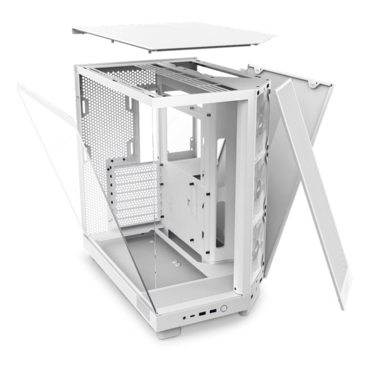

H6 Flow, Tempered Glass, No PSU, ATX, Matte White, Mid Tower Case
Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.
- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Key Specs | |
Motherboard Support: | ATX, Micro-ATX, Mini-ITX |
Enclosure Type: | Mid-Tower |
Case Material: | SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only) |
Dimensions | |
Height (with feet): | 435 mm / 17.13 in |
Width: | 287 mm / 11.3 in |
Depth: | 415 mm / 16.34 in |
Weight: | 9.4 kg |
Compatibility & Clearance | |
CPU Cooler Height: | 163 mm / 6.42 in |
GPU Length: | 365 mm / 14.37 in |
PSU Length: | 200 mm / 7.87 in |
Cable Management: | 91 mm / 3.58 in |
Top Radiator: | 30 mm / 1.18 in |
Front I/O Ports | |
USB 3.2 Gen 1 Type-A: | 2 |
USB 3.2 Gen 2 Type-C: | 1 |
Headset Audio Jack: | 1 |
Expansion Slots | |
Standard: | 7 |
Vertical: | 0 |
Drive Bays | |
2.5": | 2 |
3.5": | 1 |
Fan Support | |
Front-Right: | 3 x 120 mm (3 x F120Q included) |
Top: | 3 x 120 mm / 2 x 140 mm |
Bottom: | 2 x 140 mm |
Rear: | 1 x 120 mm |
Filters: | High-Performance Mesh |
Radiator Support | |
Top: | Up to 360 mm |
Rear: | Up to 120 mm |
Fan Specs | |
Model: | F120Q Airflow Fan (Case Version) |
Speed: | 1200 ± 240RPM |
Airflow: | 62.18 CFM |
Static: | 1.05 mm - H2O |
Noise: | 25.1 dBA |
Fan Connector: | 3-pin |
General | |
Warranty: | 2 Years |
Model Number: | CC-H61FW-01 (White) / CC-H61FB-01 (Black) |
UPC: | 810074844130 (White) / 810074844147 (Black) |
EAN: | 5056547204048 (White) / 5056547204055 (Black) |
