| Processor System |
CPU |
LGA1700 Socket for Intel® Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors |
| Max. 125W TDP |
| CHIPSET |
Intel® H610 chipset |
| Memory |
Technology |
Up to DDR4 2400/2666/2933/3200 MHz |
| Max. |
64GB |
| Socket |
2 x U-DIMM |
| Display |
HDMI |
1, Supports HDMI 2.1 up to 4096 x 2160 @ 60 Hz |
| VGA |
1, up to 1092 x 1200 @ 60 Hz |
| DP |
1, up to 4096 x 2160 @ 60 Hz |
| Triple Display |
DP+HDMI+VGA(default) |
| Expansion Slot |
PCIe x16 |
1 x PCIe 5.0 x16 slot |
| PCIe x4 |
1 x PCIe 3.0/2.0 x16 slot (x4 mode) 1 x PCIe 3.0/2.0 x1 slot |
| PCI |
4 x PCI slot |
| M.2 |
1 x M.2 Socket 3 with M key, type 2242/2260/2280(SATA / PCIe x 1 mode) |
| Ethernet |
Speed |
10/100/1000Mbps |
| Controller |
1 x Intel® I219V, 1 x Intel® I210AT |
| Connector |
2 x RJ-45 |
| Audio |
Codec |
Realtek ALC897 High Definition Audio |
| Connector |
Line-Out, Mic-In |
| Storage |
SATA port |
4 x SATA Gen 3.0, up to 6Gb/s |
| M.2 |
1 x M.2 Socket 3 with M key, type 2242/2260/2280(SATA/PCIe x 1 mode) |

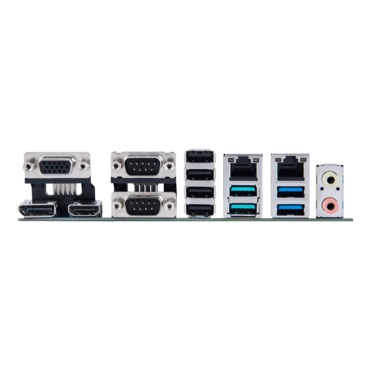

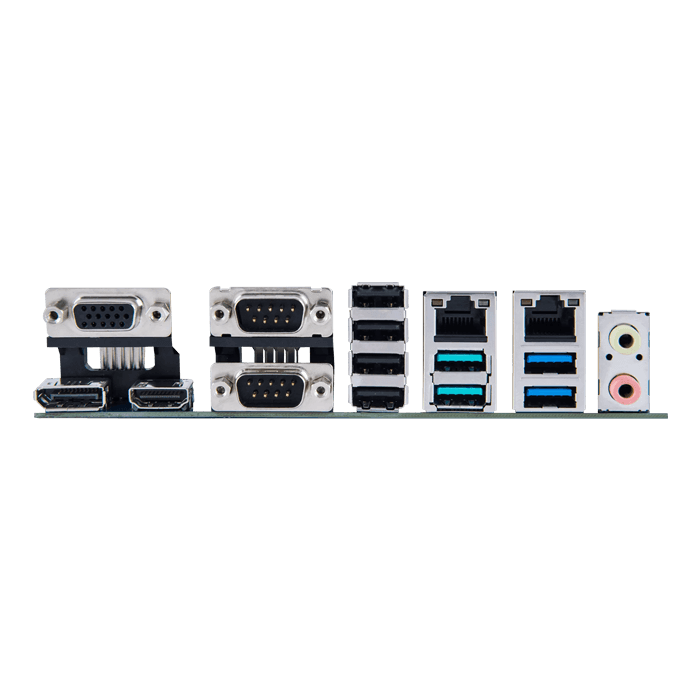

| Rear I/O |
HDMI |
1 |
| VGA |
1 |
| DP |
1 |
| USB 3.2 |
4(2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1) |
| USB 2.0 |
4 |
| Ethernet |
2 |
| Serial Port |
2(RS232/422/485) |
| Audio jack |
2 |
| Internal Connector |
Serial Port |
4 (RS232) |
| USB2.0 |
1 x Header Support Additional 2 x USB2.0 Connectors |
| CPU Fan Connector |
1 (PWM Mode) |
| Chassis Fan Header |
2 (PWM Mode) |
| Chassis Intrusion Header |
1 |
| Front Panel Audio Header (AAFP) |
1 |
| System Panel Header |
1 (10-1 Pin) |
| Buzzer |
1 |
| Clear CMOS Jumper |
1 |
| Speaker Connector |
1 (4-pin) |
| COM Debug Header |
1 |
| I2C Header |
1 |
| Parallel |
1 |
| GPIO Header |
1 (8 Bit) |
| PS/2 |
1 |
| AT/ATX Select Header |
1 |
| Power Connector |
2 X 4-pin ATX Power Connector, 1 X 24-pin ATX Power Connector |
| Watchdog Timer |
H/W |
YES |
| Security |
TPM |
1 x SPI TPM header |
| Power |
Power Type |
both ATX/AT mode |
| Operating System |
Microsoft Windows |
Windows® 10 (64bit ) / Win10 IoT Enterprise |
| Linux |
Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE |
| Environment |
Operating Temperature |
0~60° C |
| Non-Operating Temperature |
-40~85° C |
| Relative Humidity |
10%~95% |
| Dimension |
Form Factor |
ATX |
| Certification |
Safety |
CE, FCC |
