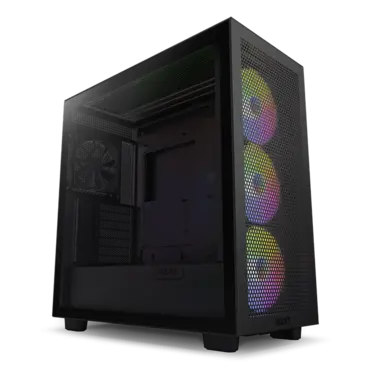

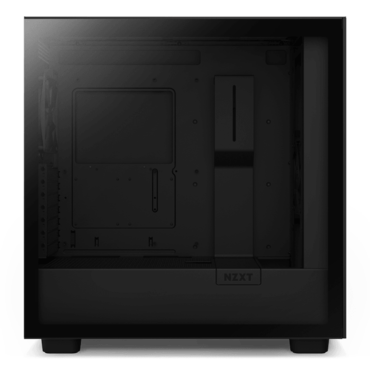

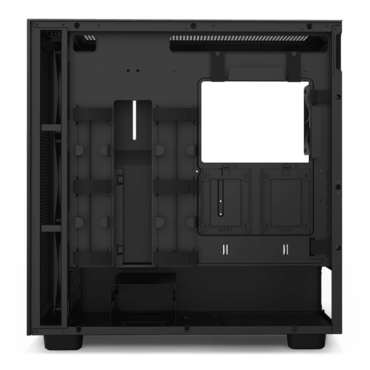

H7 Flow RGB, Tempered Glass, No PSU, ATX, Black, Mid Tower Case

  • SKU: 16063993
  • Manufacturer: NZXT
  • MPN: CM-H71FB-R1
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
H7 Flow RGB, Tempered Glass, No PSU, ATX, Black, Mid Tower Case

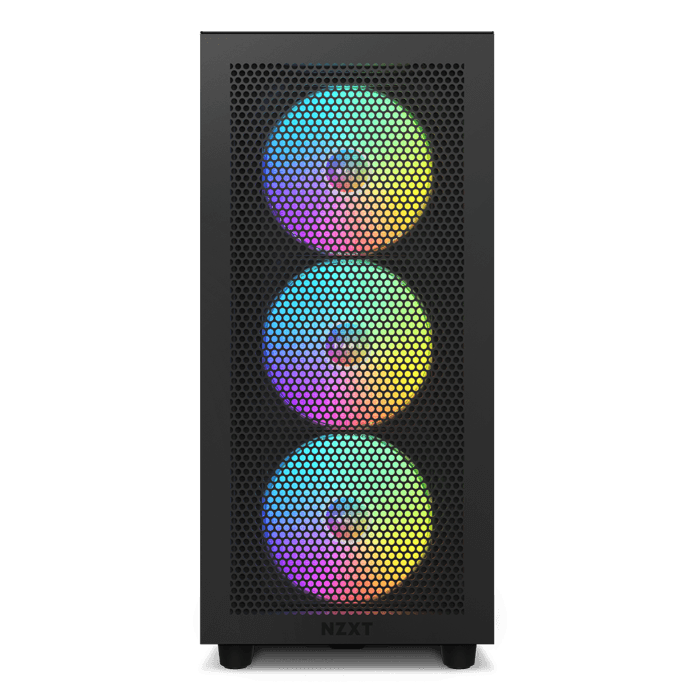

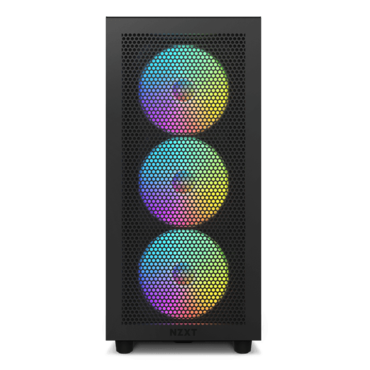

The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.

  • Includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan
  • Perforated front & top panels enable maximum thermal performance

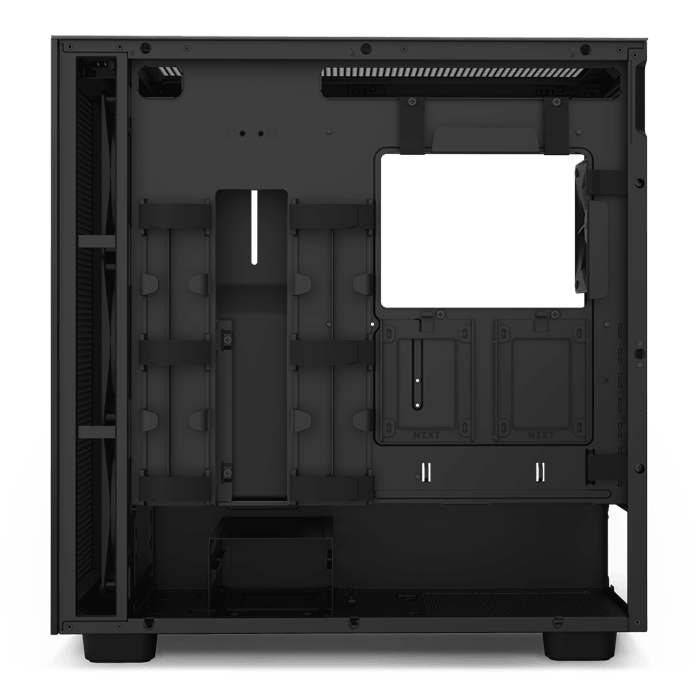

  • Intuitive cable management system with wide channels, hooks, & straps

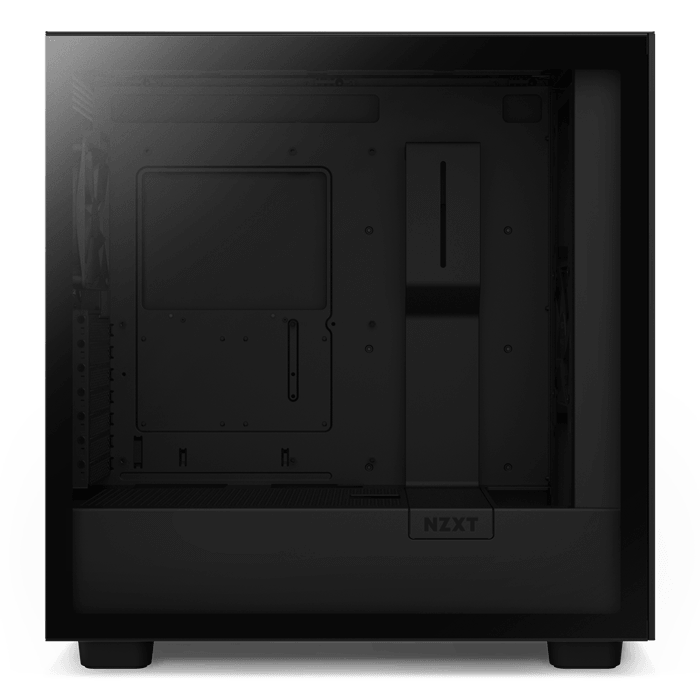

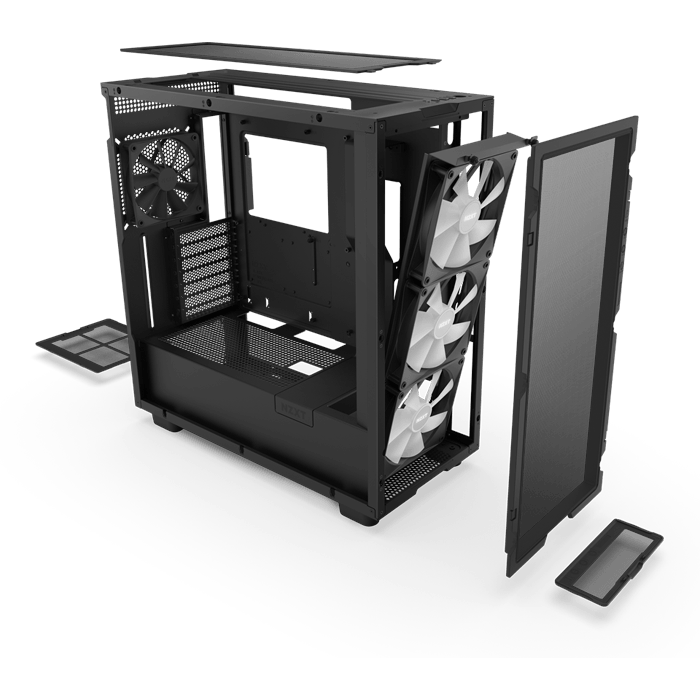

  • Tool-less access to front & side panels (tinted panels on black variant only)
  • Front & top support radiators up to 360mm
  • Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
  • Supports vertical GPU mounting (Sold Separately)
  • Two color options (Matte Black, Matte White)
  • Two top-mounted USB 3.2 Type-A ports
  • One top-mounted USB 3.2 Type-C port
Key Specs
Motherboard Support: Mini-ITX, Micro-ATX, ATX
Enclosure Type: Mid-Tower
Case Material (White): SGCC Steel, Ultra-clear Tempered Glass
Case Material (Black): SGCC Steel, Dark Tinted Tempered Glass
Height (With Feet): 505mm
Height (Without Feet): 480mm
Width: 230mm
Depth: 480mm
Weight: 10.57kg
Compatibility & Clearance
Max CPU Cooler Clearance: Up to 185mm
Max GPU Clearance: Up to 400mm
Front Radiator Clearance: 60mm
Top Radiator Clearance: 30mm
Cable Management: 18-22mm
PSU Clearance: Up to 200mm
Front I/O Ports
USB 3.2 Gen 1 Type-A: 2
USB 3.2 Gen 2 Type-C: 1
Headset Audio Jack: 1
Expansion Slots
Standard: 7
Vertical: 0
Drive Bays
2.5": 4+2
3.5": 2
Fan Support
Front: 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included)
Top: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included)
Filters: All Air Intakes
Radiator Support
Front: Up to 360mm with Push/Pull
Top: Up to 360mm
Rear: Up to 140mm
Fan Specs
Model: F140 RGB Core Fan (Case Version)
Speed: 1200 ± 120 RPM
Airflow: 61.74 CFM
Static: 2.06mm-H2O
Noise: 29.05 dBA
Fan Connector: 3-pin
Fan Specs
Model: F120Q (Case Version)
Speed: 1200 ± 240RPM
Airflow: 62.18 CFM
Static: 1.05 mm - H2O
Noise: 25.1 dBA
Fan Connector: 3-pin
Warranty: 2 Years
Model Number: CM-H71FW-R1 (White) / CM-H71FB-R1 (Black)
UPC: 810074843621 (White) / 815671019431 (Black) / 810074843614 (Black)
EAN: 5056547203546 (White) / 5056547203539 (Black) / 5060301697045 (Black)
