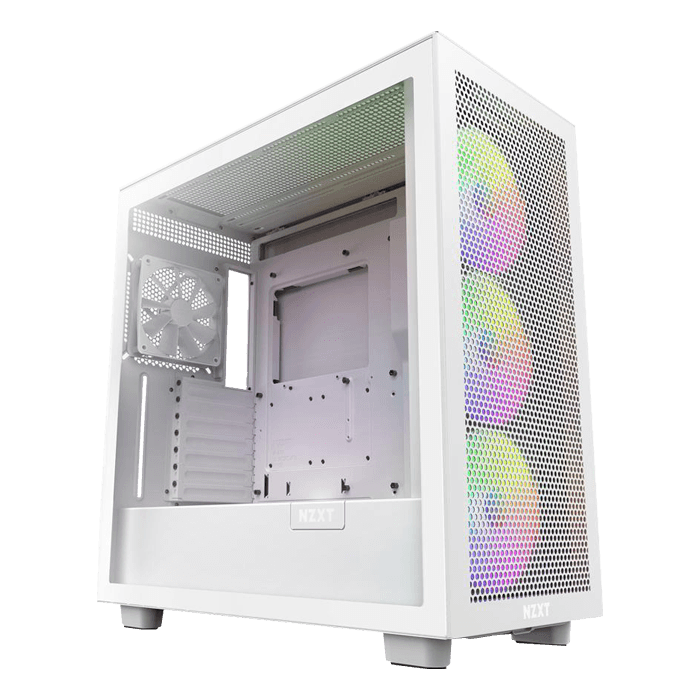

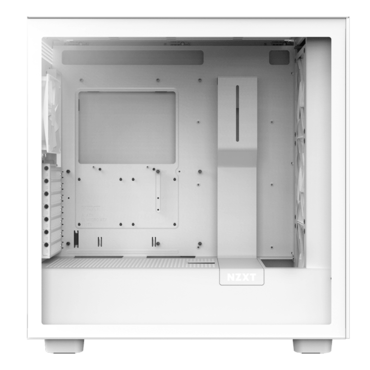

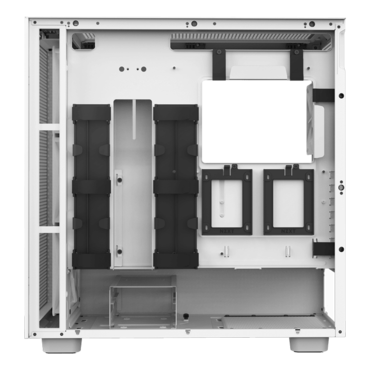

H7 Flow RGB, Tempered Glass, No PSU, ATX, White, Mid Tower Case
Quantity:
- SKU: 16064006
- Manufacturer: NZXT
- MPN: CM-H71FW-R1
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$134.88
H7 Flow RGB, Tempered Glass, No PSU, ATX, White, Mid Tower Case

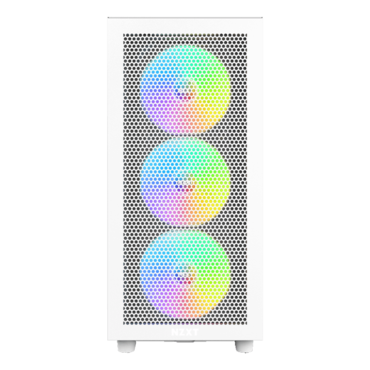

The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.
- Includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan
- Perforated front & top panels enable maximum thermal performance
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels (tinted panels on black variant only)
- Front & top support radiators up to 360mm
- Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
- Supports vertical GPU mounting (Sold Separately)
- Two color options (Matte Black, Matte White)
- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
| Key Specs | |
| Motherboard Support: | Mini-ITX, Micro-ATX, ATX |
| Enclosure Type: | Mid-Tower |
| Case Material (White): | SGCC Steel, Ultra-clear Tempered Glass |
| Case Material (Black): | SGCC Steel, Dark Tinted Tempered Glass |
| Dimensions | |
| Height (With Feet): | 505mm |
| Height (Without Feet): | 480mm |
| Width: | 230mm |
| Depth: | 480mm |
| Weight: | 10.57kg |
| Compatibility & Clearance | |
| Max CPU Cooler Clearance: | Up to 185mm |
| Max GPU Clearance: | Up to 400mm |
| Front Radiator Clearance: | 60mm |
| Top Radiator Clearance: | 30mm |
| Cable Management: | 18-22mm |
| PSU Clearance: | Up to 200mm |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A: | 2 |
| USB 3.2 Gen 2 Type-C: | 1 |
| Headset Audio Jack: | 1 |
| Expansion Slots | |
| Standard: | 7 |
| Vertical: | 0 |
| Drive Bays | |
| 2.5": | 4+2 |
| 3.5": | 2 |
| Fan Support | |
| Front: | 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included) |
| Top: | 3 x 120mm / 2 x 140mm |
| Rear: | 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included) |
| Filters: | All Air Intakes |
| Radiator Support | |
| Front: | Up to 360mm with Push/Pull |
| Top: | Up to 360mm |
| Rear: | Up to 140mm |
| Fan Specs | |
| Model: | F140 RGB Core Fan (Case Version) |
| Speed: | 1200 ± 120 RPM |
| Airflow: | 61.74 CFM |
| Static: | 2.06mm-H2O |
| Noise: | 29.05 dBA |
| Fan Connector: | 3-pin |
| Fan Specs | |
| Model: | F120Q (Case Version) |
| Speed: | 1200 ± 240RPM |
| Airflow: | 62.18 CFM |
| Static: | 1.05 mm - H2O |
| Noise: | 25.1 dBA |
| Fan Connector: | 3-pin |
| General | |
| Warranty: | 2 Years |
| Model Number: | CM-H71FW-R1 (White) / CM-H71FB-R1 (Black) |
| UPC: | 810074843621 (White) / 815671019431 (Black) / 810074843614 (Black) |
| EAN: | 5056547203546 (White) / 5056547203539 (Black) / 5060301697045 (Black) |
