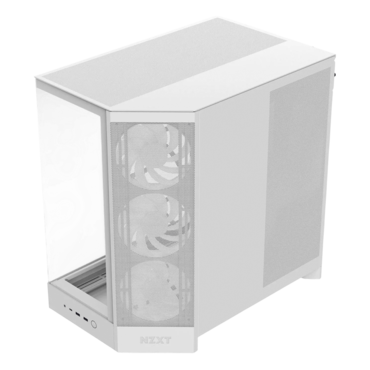

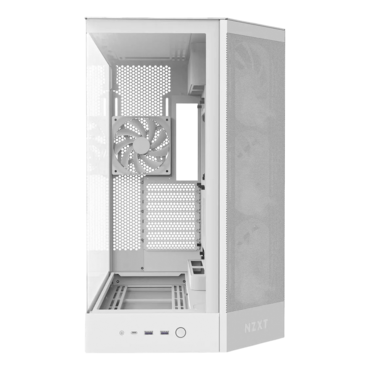

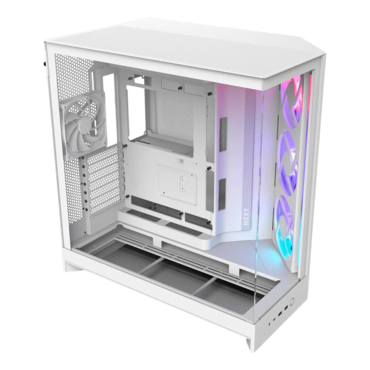

H9 Flow RGB, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case
- SKU: 19294518
- Manufacturer: NZXT
- MPN: CM-H92FW-R1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$196.62
- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
- Pre-Installed Fans: Includes one F420 RGB Core single-frame fan unit in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
| Dimensions | |
| Height | 506 mm (19.9 in) |
| Width | 315 mm (12.4 in) |
| Depth | 481 mm (18.9 in) |
| Volume | 76.7 L |
| Weight | 12.6 kg (27.78 lb) |
| General | |
| Enclosure Type | Mid-tower |
| Motherboard Compatibility | E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX |
| Rear-Connecting Motherboard Support (BTF, Project Zero) | Yes (ATX) |
| Materials | SGCC steel, clear tempered glass (white), tinted tempered glass (black) |
| Clearance | |
| CPU Cooler Height | 165 mm |
| GPU Length | Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right) |
| PSU Length | 200 mm |
| Top Radiator & Fan Thickness | Up to 80 mm (360 mm) Up to 62 mm (420 mm) |
| Front I/O Ports | |
| USB 3.2 Type-A | 2 |
| USB 3.2 Gen2x2 Type-C | 1 |
| Headset Jack | 1 |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5" | 4+2 |
| 3.5" | 2 |
| Fan Support | |
| Front-Right | 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included) |
| Top | 3 x 120 mm / 3 x 140 mm |
| Bottom | 3 x 120 mm / 3 x 140 mm |
| Rear | 1 x 120 mm (1 x F120Q (CV) included) |
| Radiator Support | |
| Front-Right | Up to 420 mm |
| Top | Up to 420 mm |
| Bottom | Up to 360 mm |
| Rear | Up to 120 mm |
| Fan Specs - F420 RGB Core | |
| Model | F420 RGB Core |
| Speed | 2,000 ± 200 RPM |
| Airflow | 98.61 CFM |
| Static Pressure | 3.2 mmH2O |
| Noise | 34.5 dBA |
| Fan Connector | 8-pin w/ splitter |
| Fan Specs - F120Q (CV) | |
| Model | F120Q (CV) |
| Speed | 1,350 ± 150 RPM |
| Airflow | 60.2 CFM |
| Static Pressure | 1.05 mmH2O |
| Noise | 24.1 dBA |
| Fan Connector | 3-pin |
| Warranty | |
| Warranty | 2 years |
| Product Info | |
| Model Number | CM-H92FW-R1 CM-H92FB-R1 CM-H92FW-R2 CM-H92FB-R2 |
| UPC | 810074847865 810074847872 815671019516 815671019523 |
| EAN | 5056547207650 5056547207667 5056547208862 5056547208879 |
