HAF 500 Tempered Glass, No PSU, ATX, Black, Mid Tower Case
HOMECOMING CLASSIC
Cooler Master’s classic HAF series is making a return with HAF 500. Built for high airflow and peak performance, the HAF 500 boasts iconic 200mm large intake ARGB fans, ensuring unparalleled intake and cooling efficiency. The chassis features a dedicated GPU fan, adjustable to various GPU lengths. Ample clearance for dual 360mm radiators on the top and front panel accommodates the most advanced water cooling setups.
Tool-less side panels and a removable top panel facilitates simplified, hassle-free component installation without the need to struggle with small spaces.

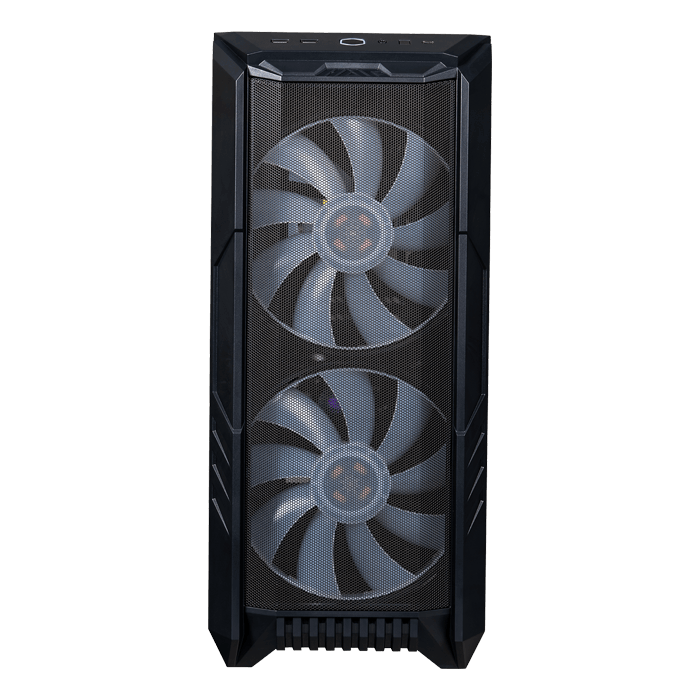

- Mesh Front Panel
- Dual 200mm ARGB Fans
- Rotatable GPU Fan
- USB 3.2 Gen 2 Type C Support
- Screwless & Tool-Free TG Side Panel Design
- Removable Top Panel
- Versatile Cooling Options
Exterior Color | Black |
Materials - Outlook | Steel, Mesh, Plastic |
Materials - Side Panel | Tempered Glass, Steel |
Dimensions (L x W x H) | 516 x 224 x 510mm (incl. Protrusions) |
Motherboard Support | ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 14.1", may impact cable management and case features, remove cable cover and GPU fan bracket features) |
Expansion Slots | 7 |
5.25" Drive Bays | N/A |
2.5" / 3.5" Drive Bays (combo) | 2 |
2.5" Drive Bays | 2 |
I/O Panel | 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x USB 3.2 Gen 2 Type-C, 1x single Audio Jack, 1x Reset/ARGB button |
ARGB Controller | ARGB Hub |
Pre-installed Fans - Front | 2x 200mm ARGB Fan |
Pre-installed Fans - Rear | 1x 120mm SickleFlow PWM ARGB |
Pre-installed Fans - Others | 1x 120mm SickleFlow PWM (GPU Fan) |
Fan Support - Top | 3x 120mm, 2x 140mm, 2x 200mm |
Fan Support - Front | 3x 120mm, 2x 140mm, 2x 200mm, *200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness |
Fan Support - Rear | 1x 120mm |
Fan Support - Top on HDD cage | 1x 120mm |
Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm |
Radiator Support - Front | 120mm, 140mm, 200mm, 240mm, 280mm, 360mm |
Radiator Support - Rear | 120mm |
Clearance - CPU Cooler | 167mm/6.5" |
Clearance - PSU | 180mm/7.1" |
Clearance - GFX | 410mm/16.1" |
Cable Routing - Behind Motherboard Tray | 30mm |
Dust Filters | Top, Bottom |
Power Supply Support | Bottom mount, ATX |
Warranty | 2 years |
Series | HAF Series |
Size | Mid Tower |
