| Lifecycle |
Active |
| Distributor Inventory |
No |
| Brackets |
Full height and low profile |
| Devices Supported |
SAS/SATA: 1024, NVMe: 32 |
| Generation |
12 Gb/s |
| Host Bus Type |
x8 lane PCI Express 4.0 |
| Internal Connectors |
2 x8 SFF-8654 (SlimSAS) |
| Internal Ports |
16 |
| I/O Controller |
SAS3816 |
| Management Software |
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| MTBF |
> 5,000,000 hours at 40° C |
| Operating Humidity |
20% to 80% Non-condensing |
| Operating Temperature°C |
0°C to 55°C |
| OS Support |
Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| Physical Dimensions |
Low profile 6.127” x 2.712” |
| Regulatory Certifications |
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438),
USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
|
| Typical Power |
8.9W |
| Warranty |
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
| What's in the box |

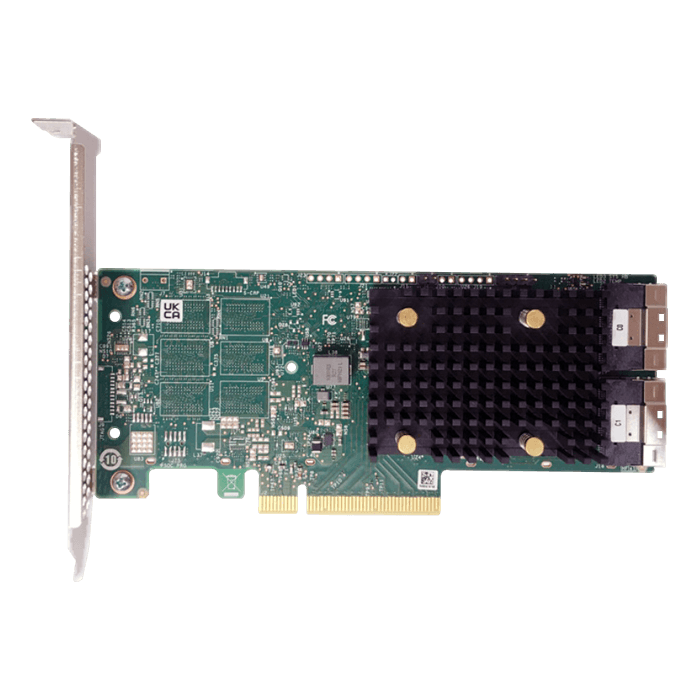

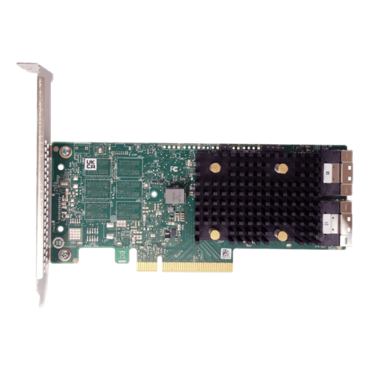

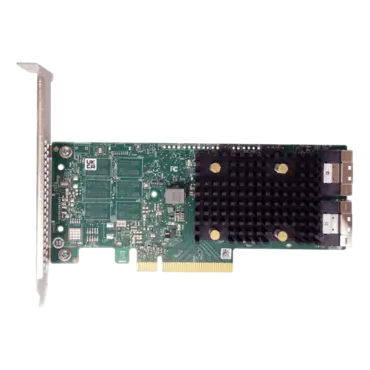

9500-16i HBA, Low Profile Bracket, Bracket, FH (attached) |
