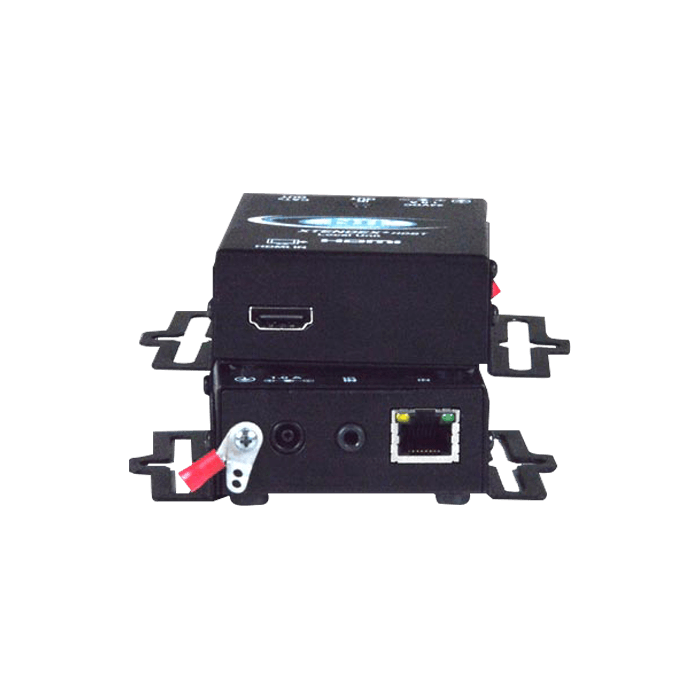

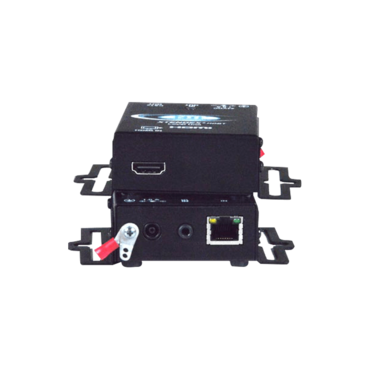

HDMI HDBase-T Extender with IR via One CAT6a/7 to 600 feet

Quantity:
  • SKU: 12660405
  • Manufacturer: NTI
  • MPN: st-c6hd-hdbt
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$346.15
Quantity:
HDMI HDBase-T Extender with IR via One CAT6a/7 to 600 feet
HDMI Extender HDBase-T IR Single CAT5 1080p Digital Audio 328 feet
HDMI HDBase-T Extender via One CAT6a/7
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200
  • Only one power supply necessary to power both local and remote units
  • Local Unit
    • Compatible with a computer or HDTV video source with HDMI output.
    • ST-C6HD-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.
    • ST-C6HDE-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one female RJ45 port for RS232; one female RJ45 100BaseT Ethernet port for connecting network device such as a 100Base-T router, hub, or smart Blu-Ray player; one female RJ45 port for sending/receiving HD video, audio, IR, DDC, Ethernet, and RS232 signals.
    Remote Unit
    • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
    • ST-C6HD-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.
    • ST-C6HDE-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one female RJ45 port for RS232; one female RJ45 100BaseT Ethernet port for connecting network device such as a 100Base-T router, hub, or smart TV; one female RJ45 port for sending/receiving HD video, audio, IR, DDC, Ethernet, and RS232 signals.
    Dimensions
    • ST-C6HD-HDBT WxDxH (in): 2.54x3.08x1.08
    • ST-C6HDE-HDBT (in): 6.06x3.05x1.08
    Power
    • Powered from a single power supply attached to either the local or remote unit.
    • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
    Environmental
    • Operating temperature: 32 to 122°F (0 to 50°C).
    • Storage temperature: -20 to 140°F (-30 to 60°C).
    • Operating/storage relative humidity: 17 to 90% non-condensing RH.
    Max Distance
    • 450 feet (137 meters) over CAT5e/6 cable.
    • 600 feet (183 meters) over CAT6a/7 cable (23 AWG).
    Cables
    • Use HD-xx-MM cable to connect an HDMI source or display.
    • Use DVI-HD-xx-MM cable to connect a DVI source or display.
    • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
      • CAT5e/6 solid: up to 450 feet.
      • CAT6a/7 solid (23 AWG): up to 600 feet.
    Regulatory Approvals
    • CE, RoHS
    Warranty
    • Two years
