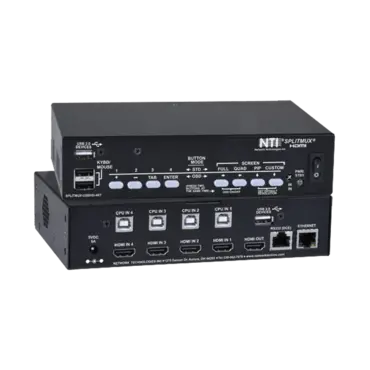

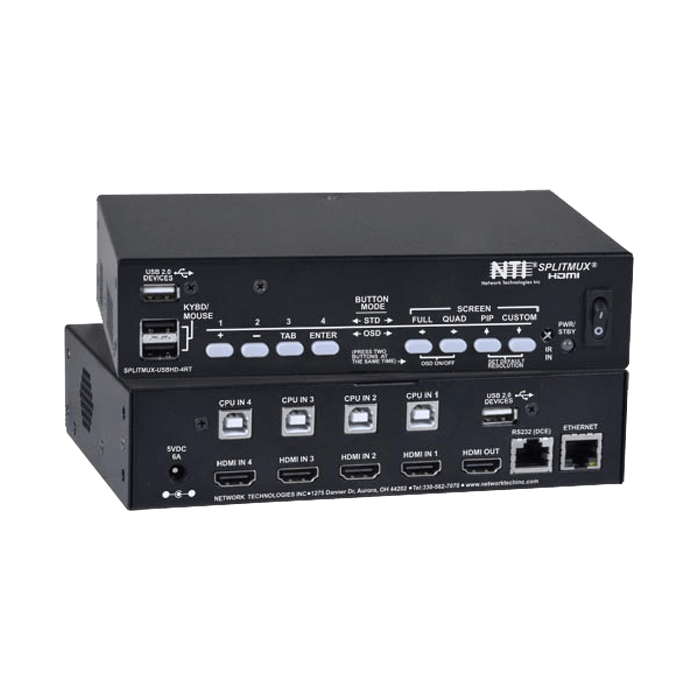

HDMI Quad Screen Splitter/Multiviewer with Built-In USB KVM Switch, 1RU Rackmount

SKU: 12658958

Manufacturer: NTI

MPN: splitmux-usbhd-4rt-r

Availability: Unknown


Price: $1,674.17
or as low as $54/month
Quantity:
HDMI Quad Screen Multiviewer with Built-In KVM Switch, 1RU Rackmount
  • Display video from four HDMI/DVI computers simultaneously on a single monitor
  • Quad, Picture in Picture, Full Screen, and Custom display modes
  • Supports 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200
  • Specifications
  • Hosts
    • Four female HDMI connectors.
    • Four female USB Type B connectors.
    • Supports USB computers.
      • Boots PCs, SUNs, and MACs simultaneously.
    • Supported video input resolutions:
      • 2K Cinema (2048x1080 @ 60Hz)
      • HDTV resolutions to 1080p
      • Computer resolutions to 1920x1200.
    • Supports HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
    • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
    • A DVI source can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the multiviewer.
      • Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
    • Supports HDCP 1.2
    Monitor
    • One female HDMI connector.
    • Supported video output resolutions:
      • 2K Cinema (2048x1080 @ 60Hz)
      • HDTV resolutions to 1080p
      • Computer resolutions to 1920x1200
    • HDMI-embedded audio switching (four-channel stereo, non-mixing or one channel stereo, mixing).
      • Switch audio independently of video from connected HDMI sources.
      • Multiple audio sources can be simultaneously active in any display mode or preset layout.
    • A DVI display can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the display.
      • Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
    • Latency:
      • 50mS at 60Hz
      • 60mS at 50Hz
      • 100mS at 30Hz
      • 120mS at 25Hz
      • 125mS at 24Hz
    • Supports HDCP 1.2
    Devices
    • Two female USB Type A connectors for keyboard and mouse.
      • Keyboard and mouse are hot-pluggable.
    • Two female USB Type A connectors for USB peripheral devices (printers, scanners, security cameras, flash drives, etc.)
      • Connect any type of USB device - fully transparent USB connectors.
      • Switch USB 2.0 devices between connected computers.
      • In Full Screen mode, USB touch screen monitors can be used to control the connected active computer.
    • Provides support for high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
    Protocols
    • HTTP, HTTPS
    • TCP/IP, DHCP, UDP, ARP
    • IPV4
    Power
    • 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
    • Power consumption: 20W
    Dimensions
    • SPLITMUX-USBHD-4RT (desktop)
      • WxDxH (in): 7.35x4.98x1.75 (187x126x45 mm)
    • SPLITMUX-USBHD-4RT-R (1RU rackmount) and SPLITMUX-USBHD-4RT-2R (1RU dual side-by-side rackmount)
      • WxDxH (in):
        • Without rackmount kit: 7.35x4.98x1.75 (187x126x45 mm)
        • With rackmount kit: 19x4.98x1.75 (483x126x45 mm) (excludes cable tray)
      • Can be mounted so that the front panel buttons are facing the front or back of the rack.
      • Includes cable management tray.
        • Adds 3.37" to the depth.
    Environmental
    • Operating temperature: 32°F to 122°F (0°C to 50°C).
    • Storage temperature: -22°F to 140°F (-30°C to 60°C).
    • Operating and storage relative humidity: 17 to 90% non-condensing RH.
    Regulatory Approval
    • CE, RoHS
    • TAA compliant
    Warranty
    • Two years
    Package Includes
    • Multiviewer
    • One power adapter
    • One DB9 female to RJ45 female adapter
    • One 5ft CAT5e super flat cable
    • One IR remote control
    • Manual
    Compatible NTI Products
    • Combine NTI's video converters and splitters for multiple video sources and display signals
      • DVI-D to HDMI Single Link Interface Cable
        (DVI-HD-xx-MM).
        • The cable does not pass audio to the multiviewer.
      • DVI + Stereo Audio to HDMI Converter
        (DVIA-HD-CNVTR-LC)
      • DVI + Digital Audio to HDMI Converter
        (DVI-HD-CNVTR)
      • Composite Video + Audio to HDMI Converter (CVA-HD-LC)
      • VGA + Audio to HDMI Converter Cable
        (VGAA-HD-ULC)
      • VGA/Component Video/HDMI Scaler/Converter (PCHD-HDMI-SCALER)
