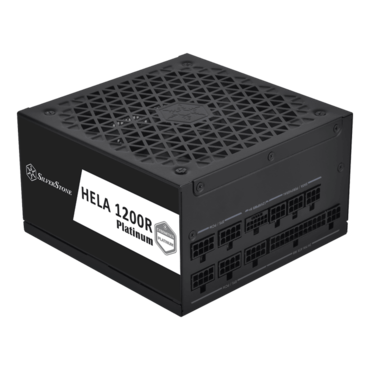

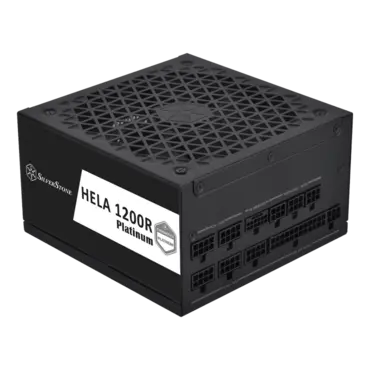

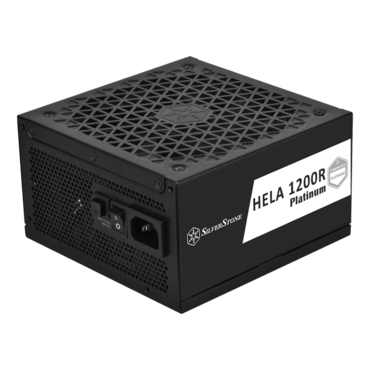

HELA 1200R, 80 PLUS Platinum 1200W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 15335656
- Manufacturer: SILVERSTONE
- MPN: SST-HA1200R-PM
- Availability: LOW STOCK
Starting At
$279.44
HELA 1200R, 80 PLUS Platinum 1200W, Fully Modular, ATX Power Supply
12VHPWR PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems.
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0 specification standard
- Cybenetics Platinum efficiency certification
- 24/7 continuous power output with 50?operating temperature
- Fully Modular design
- All Japanese electrolytic capacitors

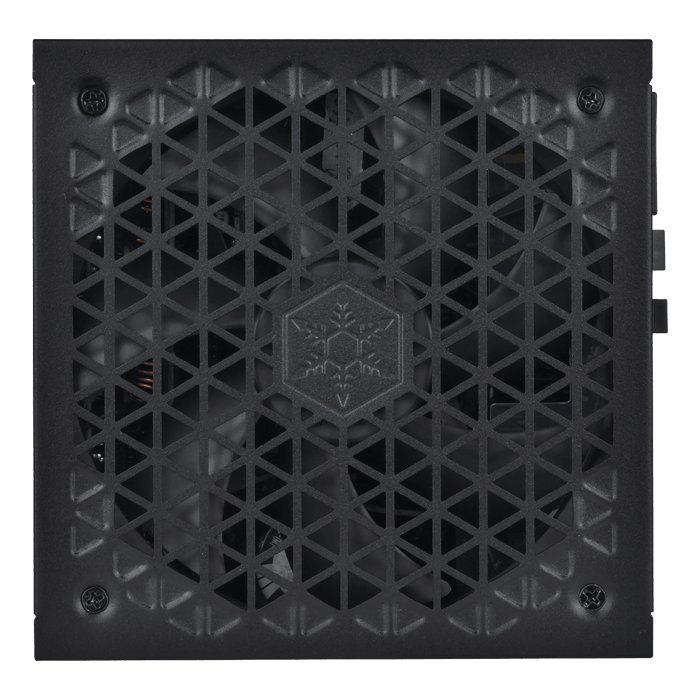

- Ultra silent 135mm FDB fan with semi-fanless function

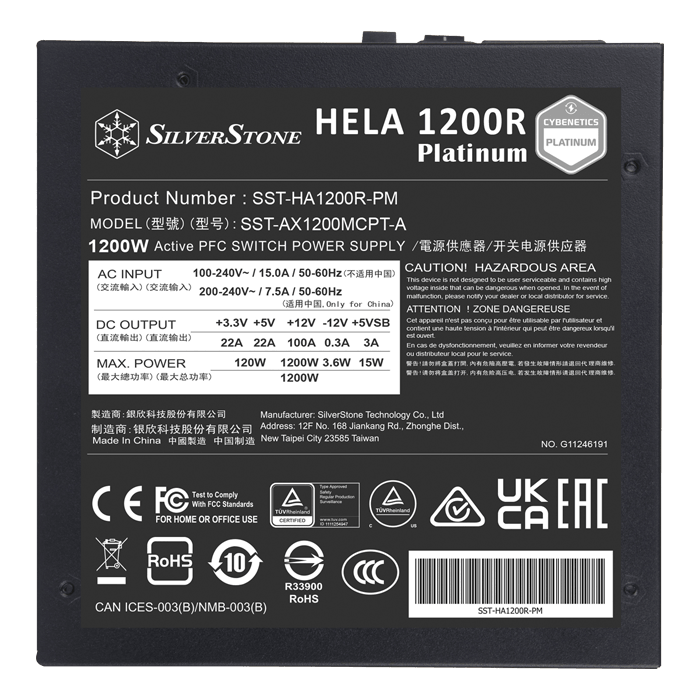

| Product No. | SST-HA1200R-PM | ||||
| Model (safety certification) | SST-AX1200MCPT-A | ||||
| Color | Black (lead-free paint) | ||||
| Max. DC Output | 1200W | ||||
| Power density | 620W per liter | ||||
| Load Range | |||||
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|
Max.(Amps)
|
22A | 22A | 100A | 2.5A | 0.3A |
|
Min.(Amps)
|
0A | 0A | 0A | 0A | 0A |
|
Range (%)
|
±3% | ±3% | ±5/-7% | ±5% | ±5% |
|
Line Reg.(%)
|
±1% | ±1% | ±1% | ±1% | ±1% |
|
Ripple(mVp-p)
|
30mV | 30mV | 70mV | 40mV | 40mV |
| Combined +3.3V & +5V | 120W | ||||
| Combined +12V | 1200W | ||||
| Input Voltage | 90 ~ 264 Vrms | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC (PF>0.95 at full load) | ||||
| Efficiency | ≥87% & <89% overall efficiency | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 50°C | ||||
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |
||||

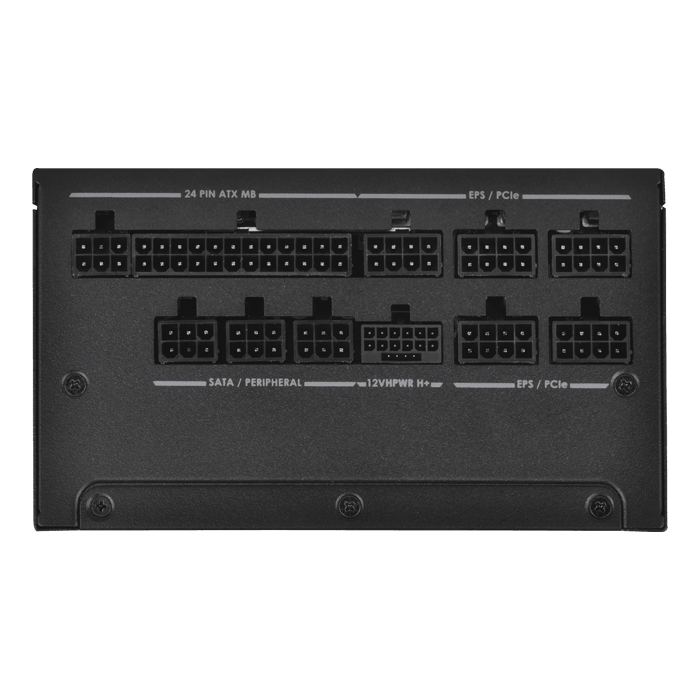

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 6 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12VHPWR connector 12 x SATA connectors 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |
||||
| Cooling System | Silent 135mm FDB fan | ||||
| Form factor | ATX (PS2) | ||||
| Noise Level | 0 dBA minimum | ||||
| Dimension | 150 mm (W) x 86 mm (H) x 150 mm (D) 5.91" (W) x 3.39" (H) x 5.91" (D) |
||||
| Weight | 2.9 kg | ||||
| Certification | Cybenetics Platinum | ||||

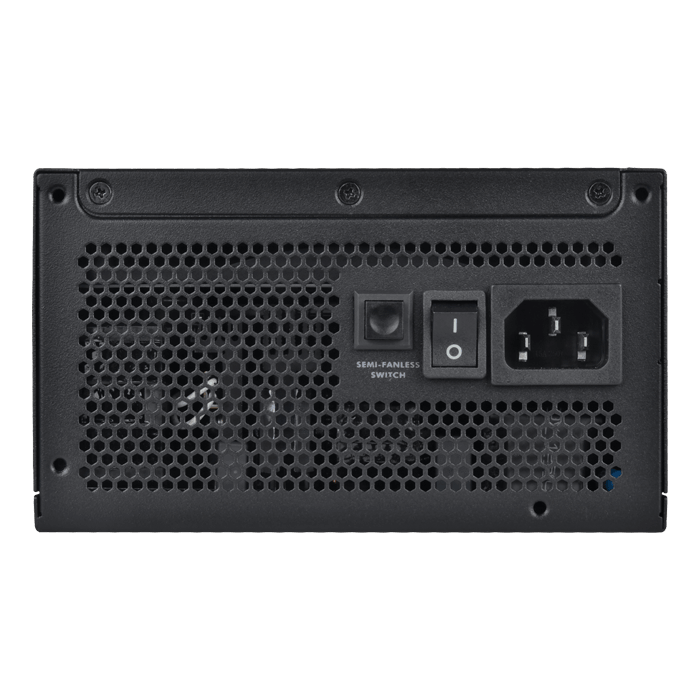

| Other | Switch on rear side to activate / de-activate semi-fanless mode GPU Support list |
||||
