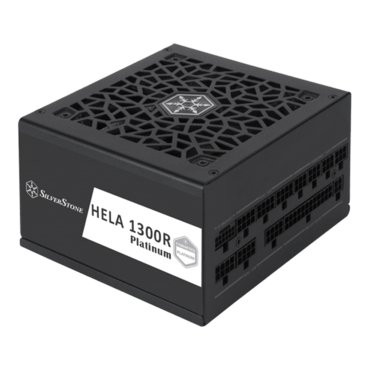

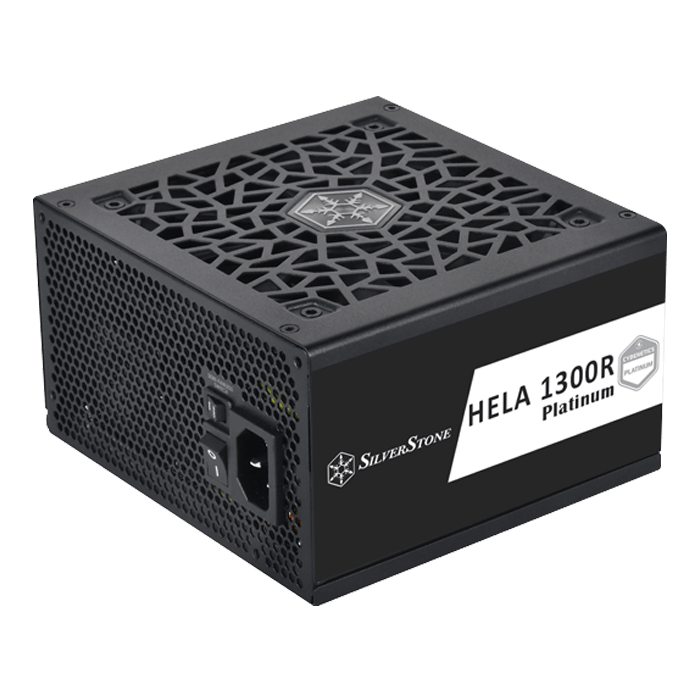

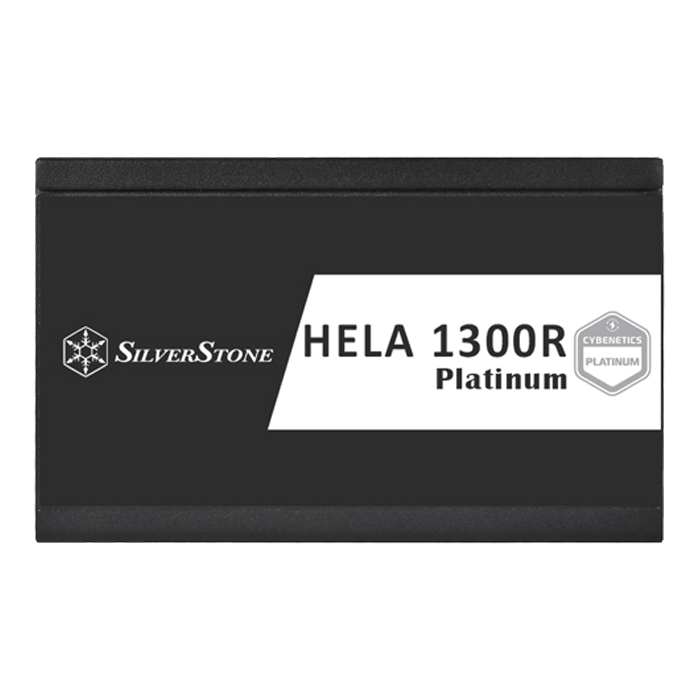

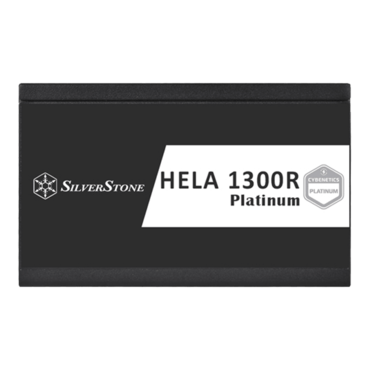

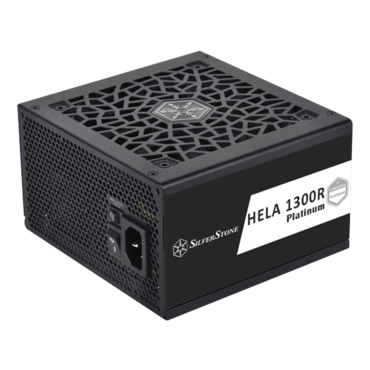

HELA 1300R, 80 PLUS Platinum 1300W, Fully Modular, ATX Power Supply
- SKU: 15768845
- Manufacturer: SILVERSTONE
- MPN: HA1300R-PM
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
HELA 1300R, 80 PLUS Platinum 1300W, Fully Modular, ATX Power Supply
Cybenetics Platinum 1300W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply
- Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
- High efficiency with Cybenetics Platinum certification
- Super flexible black flat cables
- 100% modular cables
- 24/7 continuous power output with 50? operating temperature
- All Japanese electrolytic capacitors
- Silent running 120mm FDB fan with semi-fanless and delayed shut-off function
- 180° angled SATA connectors designed for stack mounted hard drives

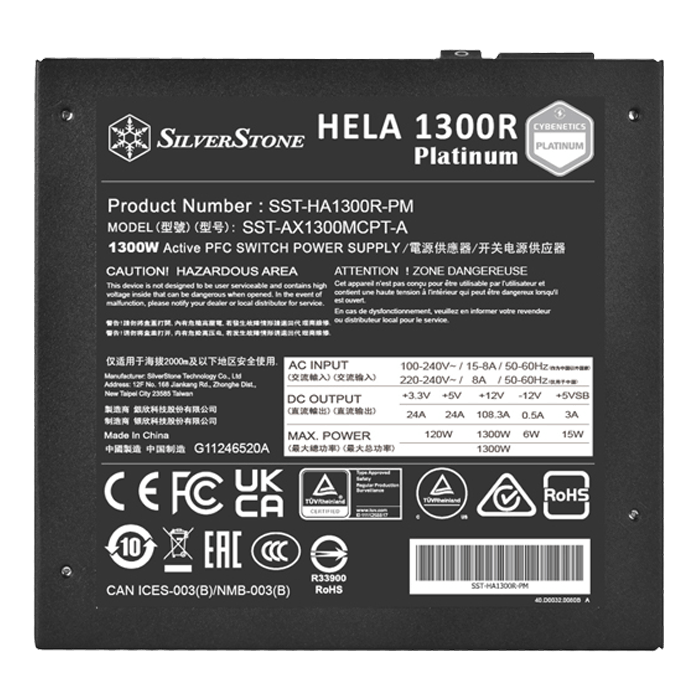

| Product No. | SST-HA1300R-PM | ||||||||||||||||||||||||||||||||||||||||||
| Model (safety certification) | SST-AX1300MCPT-A | ||||||||||||||||||||||||||||||||||||||||||
| Color | Black (lead-free paint) | ||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output | 1300W | ||||||||||||||||||||||||||||||||||||||||||
| Power density | 720W per liter | ||||||||||||||||||||||||||||||||||||||||||
| Load Range |
|
||||||||||||||||||||||||||||||||||||||||||
| Combined +3.3V & +5V | 120W | ||||||||||||||||||||||||||||||||||||||||||
| Combined +12V | 1300W | ||||||||||||||||||||||||||||||||||||||||||
| Input Voltage | 90 ~ 264 Vrms | ||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||||||||||||||||||||||||||||||||||||||||
| PFC | Active PFC (PF>0.9 at full load) | ||||||||||||||||||||||||||||||||||||||||||
| Efficiency | ≥89% & <91% overall efficiency | ||||||||||||||||||||||||||||||||||||||||||
| MTBF | 100,000 hours | ||||||||||||||||||||||||||||||||||||||||||
| Operating temperature | 0°C ~ 50°C | ||||||||||||||||||||||||||||||||||||||||||
| Protection |
Over Current Protection Over Power Protection Over Voltage Protection Over Temperature Protection Short Circuit Protection Under Voltage Protection No load operation |
||||||||||||||||||||||||||||||||||||||||||
| Connectors |

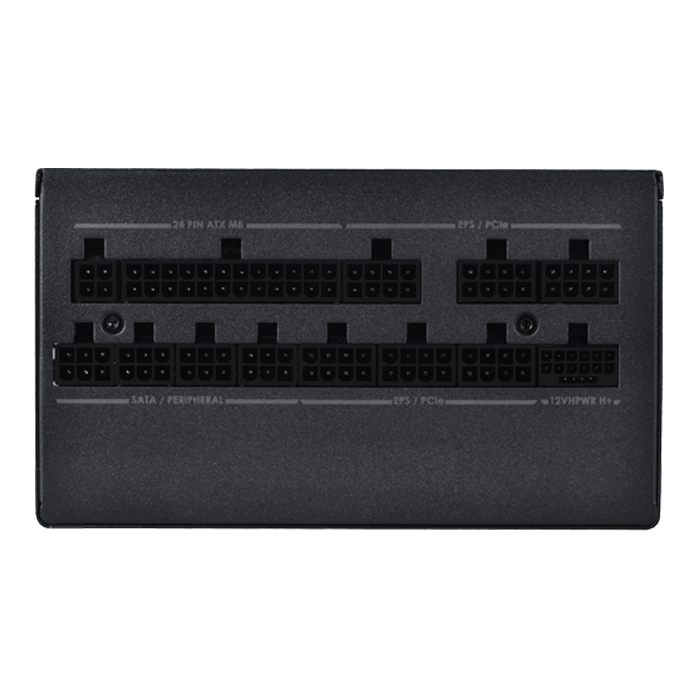

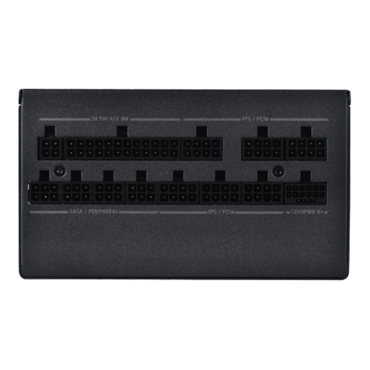

1 x 24 / 20-Pin motderboard connector 2 x 4-Pin + 4-Pin ATX 12V connector 1 x 12+4-Pin 12VHPWR connector 8 x 8 / 6-Pin PCIe connectors 8 x SATA connectors 6 x 4-Pin Peripheral connectors 2 x 4-Pin Floppy connectors |
||||||||||||||||||||||||||||||||||||||||||

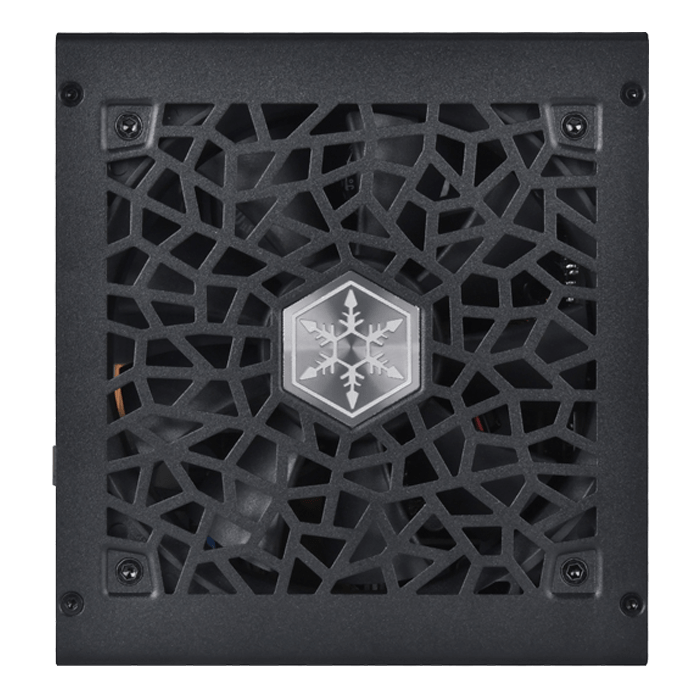

| Cooling System | Silent 120mm FDB fan | ||||||||||||||||||||||||||||||||||||||||||
| Noise Level | 0 dBA minimum | ||||||||||||||||||||||||||||||||||||||||||
| Certification | Cybenetics Platinum | ||||||||||||||||||||||||||||||||||||||||||
| Form factor | ATX (PS2) | ||||||||||||||||||||||||||||||||||||||||||
| Dimension | 150mm (W) x 86mm (H) x 140mm (D) | ||||||||||||||||||||||||||||||||||||||||||
| Weight | 2.93 kg | ||||||||||||||||||||||||||||||||||||||||||
| Otder | GPU Support list | ||||||||||||||||||||||||||||||||||||||||||
