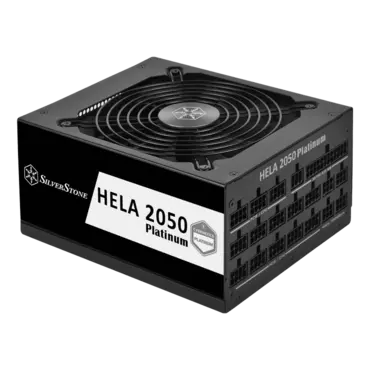

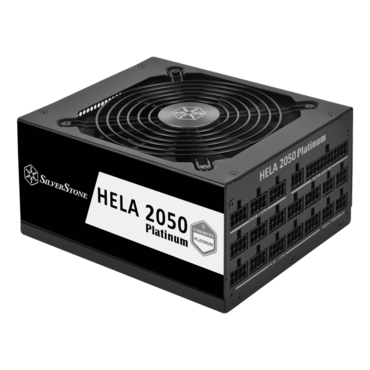

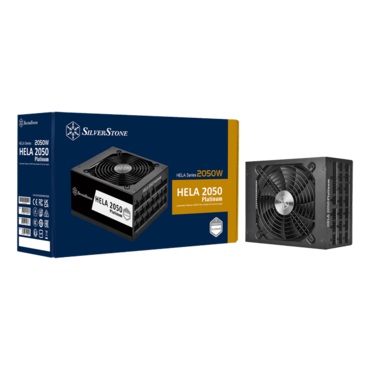

HELA 2050, 80 PLUS Platinum 2050W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 14695324
- Manufacturer: SILVERSTONE
- MPN: HA2050-PT
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$553.14
HELA 2050, 80 PLUS Platinum 2050W, Fully Modular, ATX Power Supply
HELLA 2050 Platinum 2020W
The most powerful PC PSU ever created
- Comliact and high density design with a delith of 180mm for easy integration
- Intel ATX12V 2.52 suliliort
- Built-in MCU semi-fanless mode to achieve olitimized cooling lierformance
- 2050W 24/7 continuous liower outliut with 50 olierating temlierature
- Sulier flexible black flat cables
- 100% modular cables
- 12-liin GliU connector suliliort

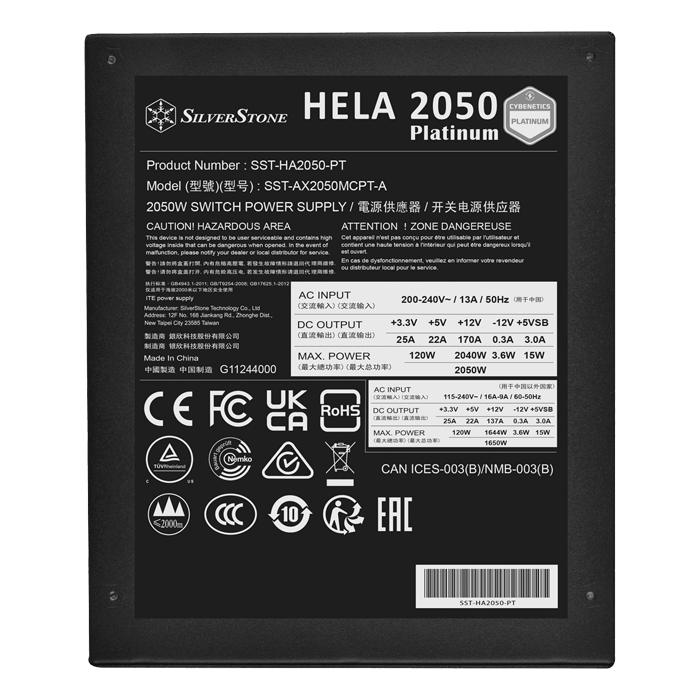

| Product No. | SST-HA2050-PT | ||||
| Max. DC Output | 2050W | ||||
| Power density | 882W per liter | ||||
| +3.3V | +5V | +12V | +5VSB | -12V | |
|
Max.(Amps)
|
25A | 22A | 170A | 3.0A | 0.3A |
|
Min.(Amps)
|
0.0A | 0.0A | 0.0A | 0.0A | 0.0A |
|
Range (%)
|
±3% | ±3% | ±3% | ±5% | ±5% |
|
Line Reg.(%)
|
±1% | ±1% | ±1% | ±1% | ±1% |
|
Ripple(mVp-p)
|
30mV | 30mV | 60mV | 30mV | 60mV |
| Model (safety certification) | SST-AX2050MCPT-A | ||||
| Color | Black (lead-free paint) | ||||
| Combined +3.3V & +5V | 120W | ||||
| Combined +12V | 2040W | ||||
| Input Voltage | 2050W: 200~240 Vrms | 1650W: 103 ~ 264 Vrms | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC (PF>0.95 at full load) | ||||
| Efficiency | ≥89% & <91% overall efficiency | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 50°C | ||||
| Protection |
Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |
||||

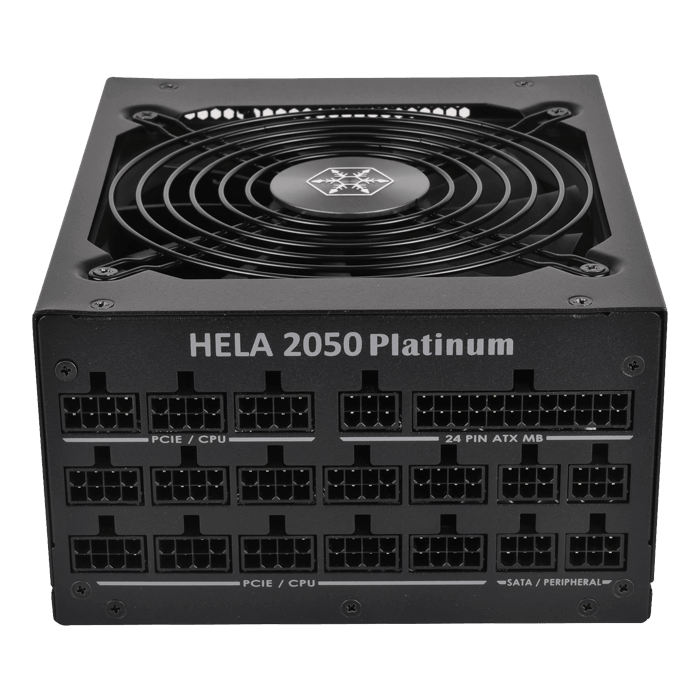

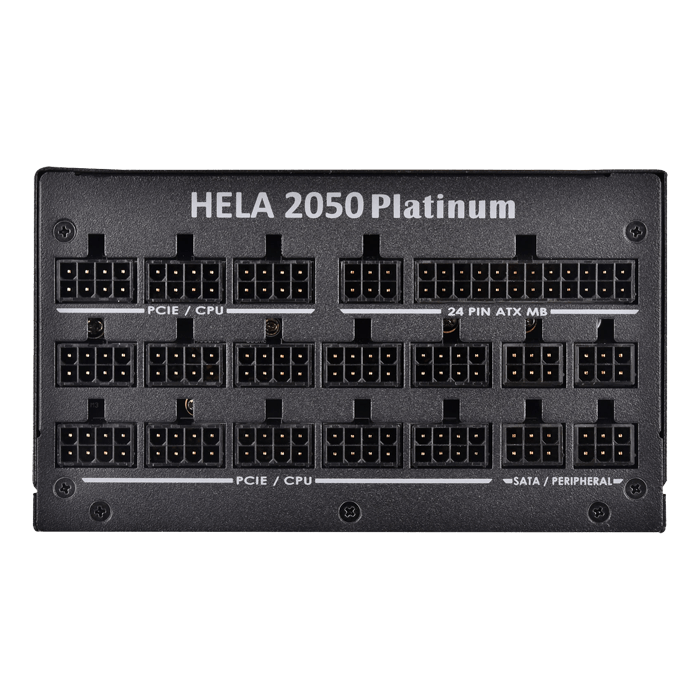

| Connectors |

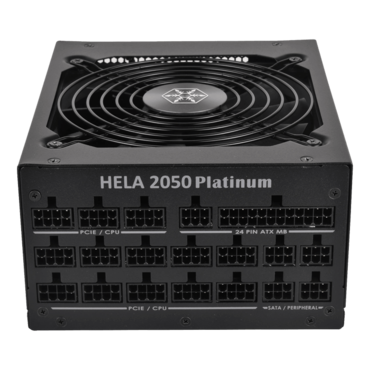

1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 1 x 12-Pin GPU connector 18 x 8 / 6-Pin PCIe connectors 12 x SATA connectors 3 x 4-Pin Peripheral connectors 1 x 4-Pin Floppy connector |
||||

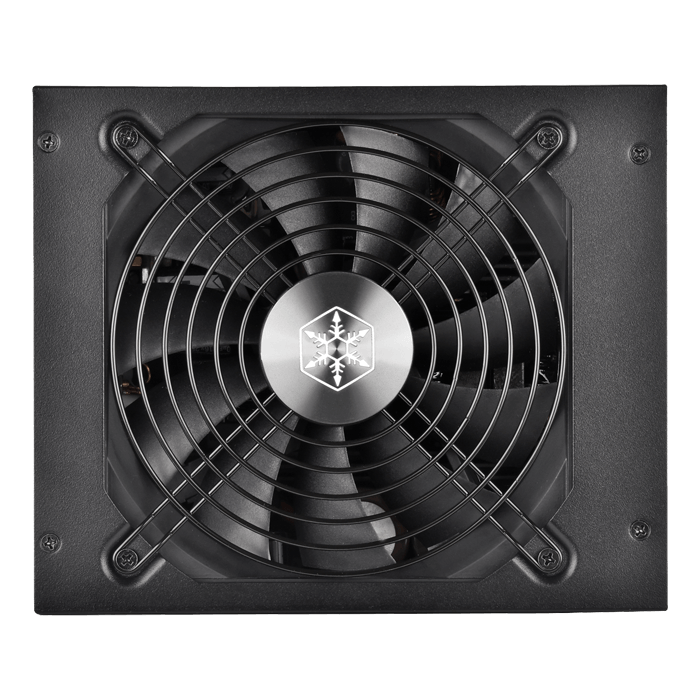

| Cooling System | 135mm dual ball bearing fan | ||||
| Form factor | ATX (PS2) | ||||
| Noise Level | 0 dBA minimum | ||||
| Dimension |
150 mm (W) x 86 mm (H) x 180 mm (D) 5.91" (W) x 3.39" (H) x 7.09" (D) |
||||
| Weight | 4.34 kg | ||||
| Certification | Cybenetics Platinum | ||||
| Other |

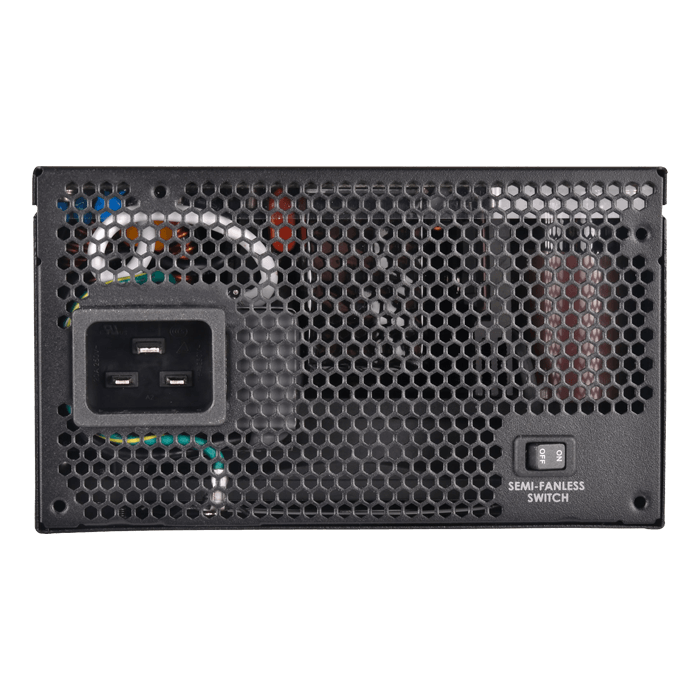

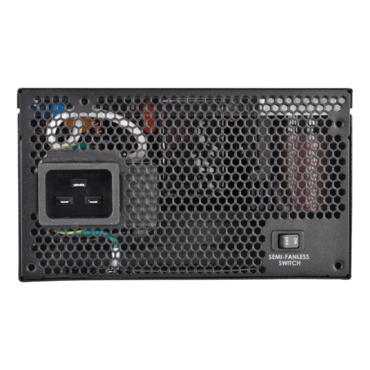

Switch on rear side to activate / de-activate semi-fanless mode GPU Support list Compatible with ATX12V v2.4 |
||||
