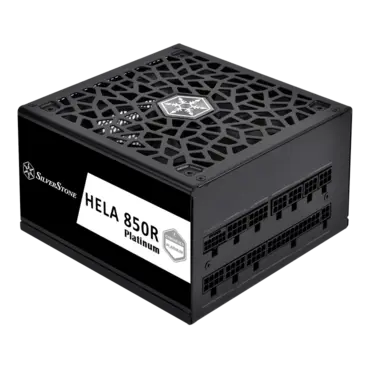

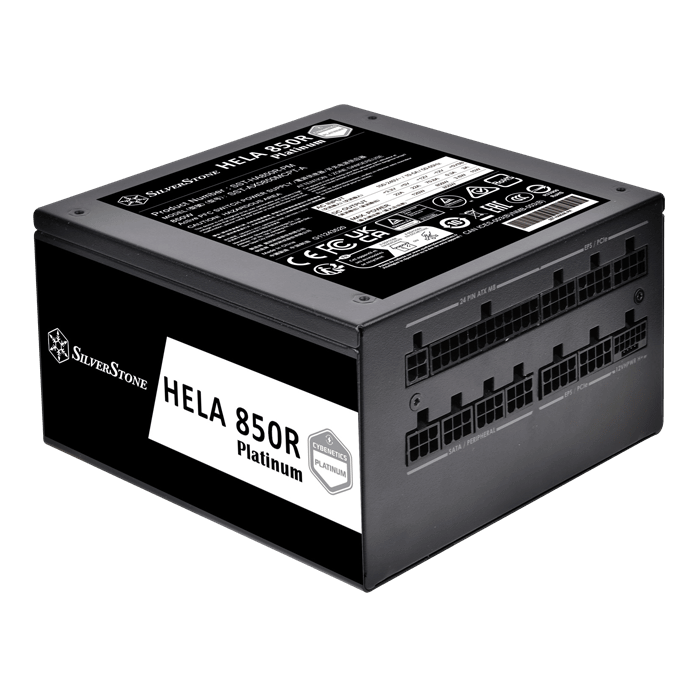

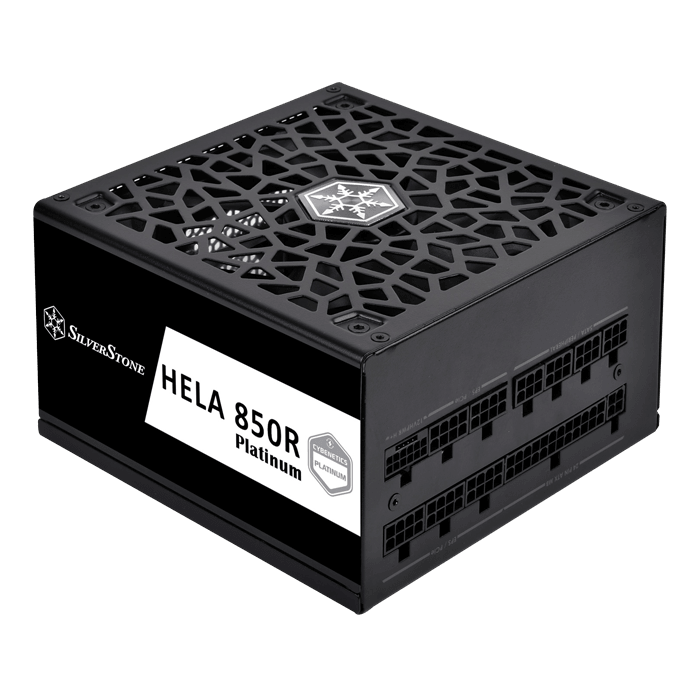

HELA 850R, 80 PLUS Platinum 850W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 15142016
  • Manufacturer: SILVERSTONE
  • MPN: HA850R-PM
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$232.30
Quantity:
  • 100% modular cables
  • Super flexible black flat cables
  • All Japanese electrolytic capacitors
  • Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
  • 24/7 continuous power output with 50? operating temperature
  • 180° angled SATA connectors designed for stack mounted hard drives
  • Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
Product No. SST-HA850R-PT
Color Black (lead-free paint)
Power density 439W per liter
Combined +3.3V & +5V 120W
Input Voltage 90 ~ 264 Vrms
PFC Active PFC (PF>0.9 at full load)
MTBF 100,000 hrs
Protection Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection

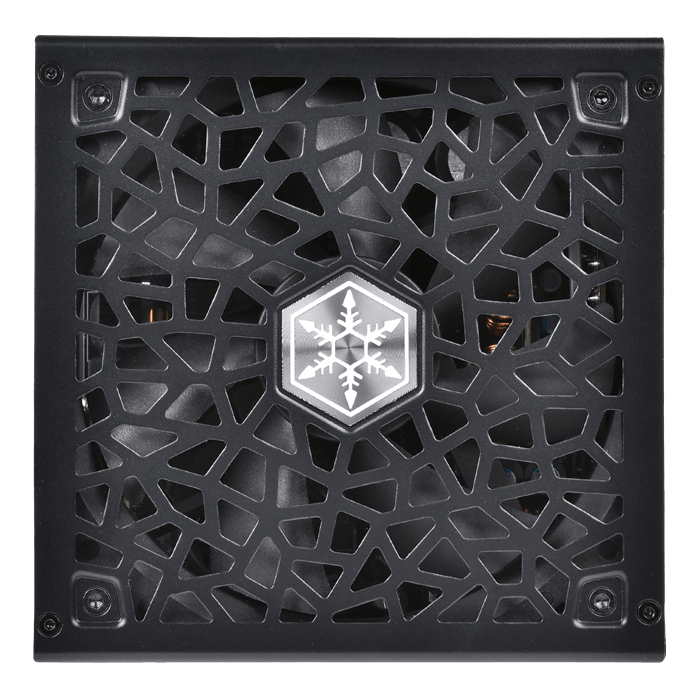

Cooling System Silent 135mm FDB fan
Certification Cybenetics Platinum
Dimension 150 mm (W) x 86 mm (H) x 150 mm (D)
5.91" (W) x 3.39" (H) x 5.91" (D)
Model (safety certification) SST-AX0850MCPT-A
Max. DC Output 850W
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 70.8A 3.0A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5/-7% ±10% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +12V 849.6W
Input Frequency Range 47Hz ~ 63Hz
Efficiency ≥89% & <91% overall efficiency
Operating temperature 0°C ~ 50°C

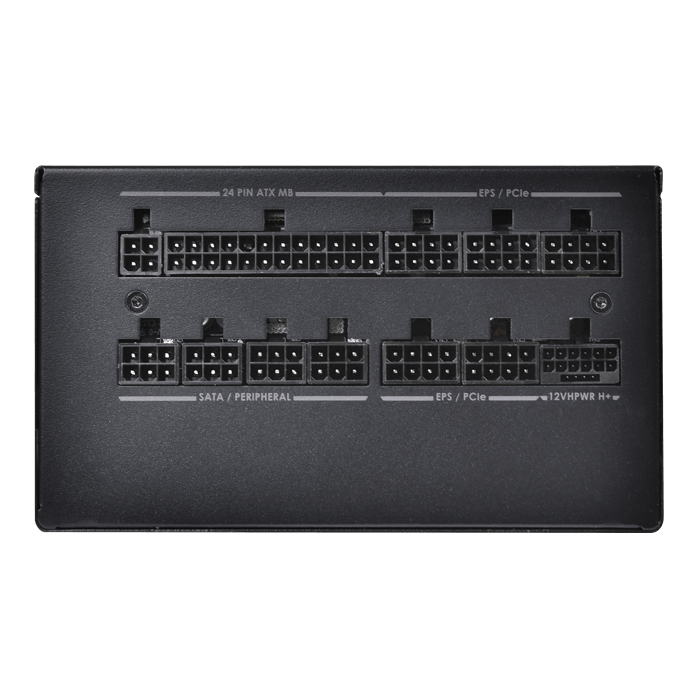

Connectors 1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
1 x 12+4-Pin 12VHPWR connector
5 x 8 / 6-Pin PCIe connectors
8 x SATA connectors
6 x 4-Pin Peripheral connectors
2 x 4-Pin Floppy connectors
Noise Level 0 dBA minimum
Form factor ATX (PS2)
Weight 2.56 kg
