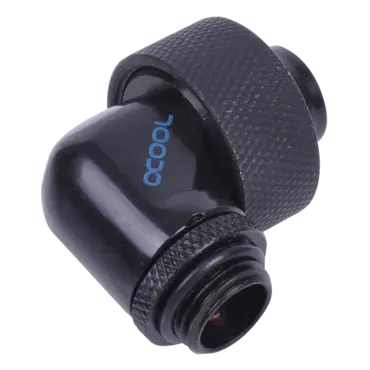

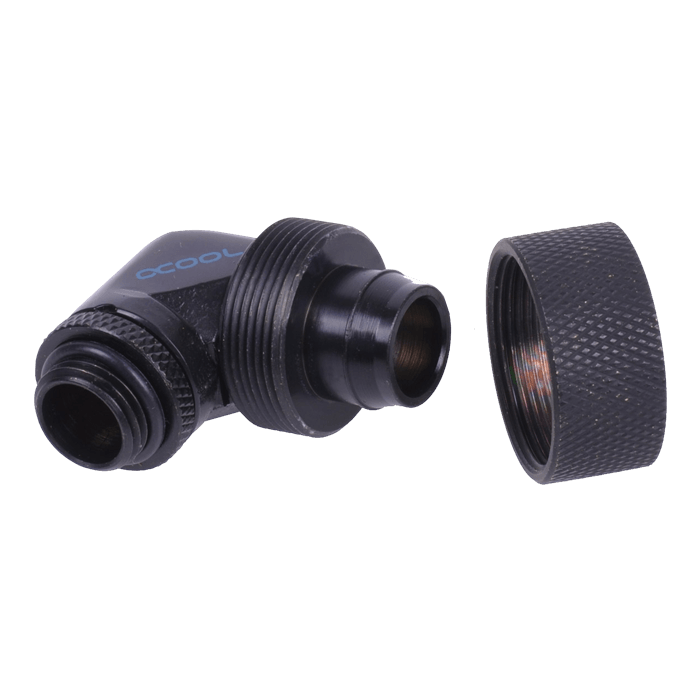

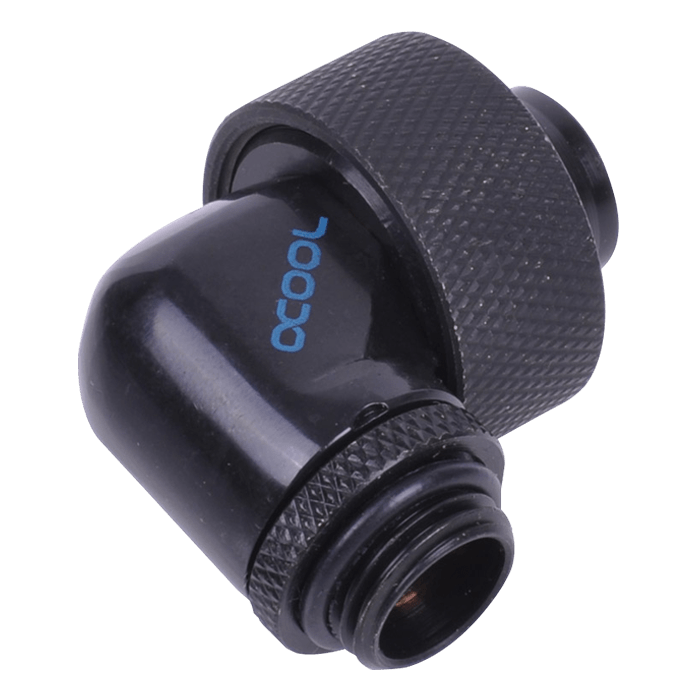

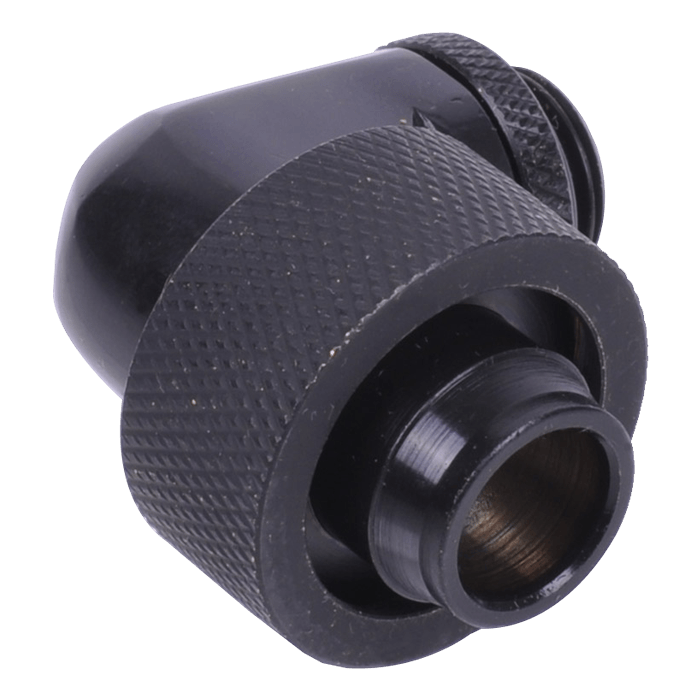

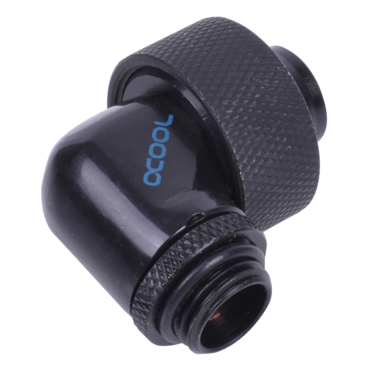

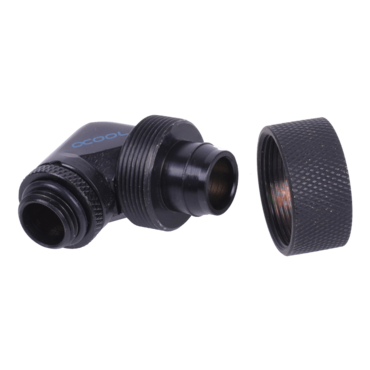

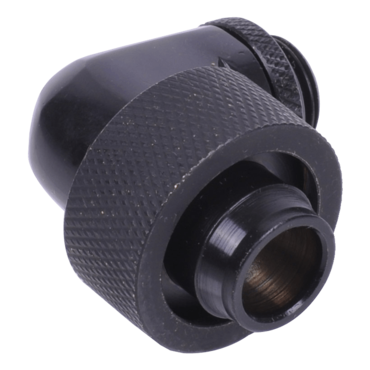

HF 19/13mm (OD 3/4" ID 1/2") Compression Fitting 90° Rotatable G1/4 - Deep Black
SKU: 12565139
Manufacturer: Alphacool
MPN: 17173
Availability: Low Stock
Alphacools's fittings go new ways in looks, quality of manufacturing, colours and choice. The inner diameter of these fittings truly deserves the „high flow“ attribute!
The first three colours, Chrome, Deep Black and Shiny Copper offer something for every taste. The product matching series are designed to look elegant in every system, highlighting the individual design of the computer. The limits are endless with these Alphacool fittings in combination with Alphacool tubing!
With a new process during chromatising the surface finish is completely connected with the brass body, hence ensuring permanent intense colours and peeling of the chrome layer. The Alphacool name in blue lettering on some of the fittings additionally underlines the individuality of these items.
Functionality of this connector:
This connector can be used to connect 19/13mm tubing with a 1/4“ thread. The fitting has a 90° bend and is revooable, making it interesting for comfortable tubing in the system.
Technical specifications:
Material: Brass, chromatized
Colour: Deep Black
Dimensions:31,9 x 35,8 x 26,1mm
Hose size compatibility : 19/13mm
Extent of delivery:
1 x Alphacool HF Screw connector 90° G1/4 outer thread on 19/13 revolvable - Deep Black
| Material: | Brass |
| Color: | black mat |
| Thread length: | 5mm |
| Manufacturer: | Alphacool |
| Compatibility: | Soft tubing (PVC, Silikon, Neoprene) |
| 1. Side: | 19/13mm (ID 1/2" OD 3/4") |
| 2. Side: | G1/4" outer thread |
| Specification: | Shape: 90° angled |
| Rotatable: | Yes - 360° |
