Dimensions | 120 x 120 x 25mm |
Bearing Type | Fluid Dynamic Bearing |
Connector | 4-Pin |
Speed (RPM) | 600 ~ 2000 RPM ± 10% |
Fan Max Air Flow (CFM) | 61.5 CFM ±10% |
Fan Max Static Pressure (mmH2O) | 1.42mm H2O ±10% |
Fan Noise Level (dBA) | 18.17 dBA(avg.) |
Fan Rated Voltage | DC 12V |
Fan Starting Voltage | DC 3.5V |
Fan Operating Voltage | DC 3.5V~12.6V |
Fan Rated Current | 0.2A (Max) |
Fan Power Dissipation | 2.4W |
Fan Protection | Auto-Restart |
MTTF | 230,000 Hours |

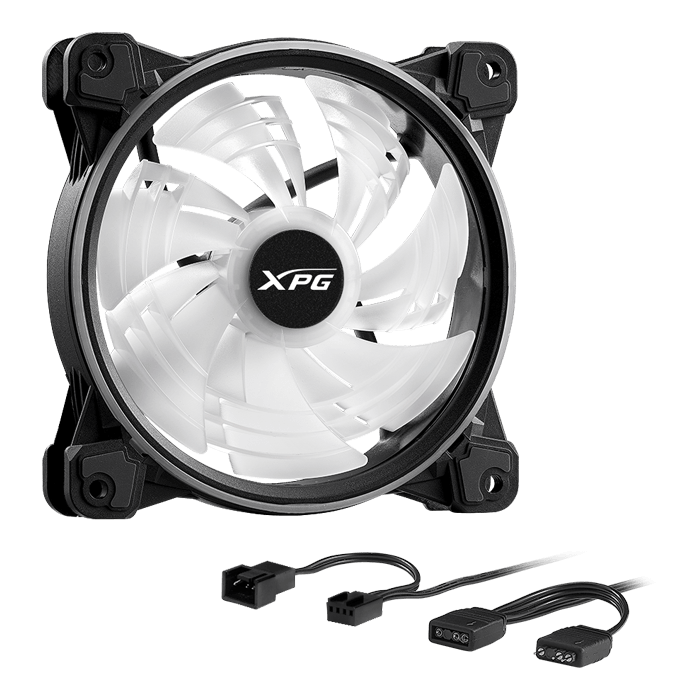

Cable Length | 610mm ± 10% with Daisy-Chain Capable |
Warranty | 2 Years |
Remark |
*Data may vary due to differences in testing equipment and environment, with ±10% tolerance. |
