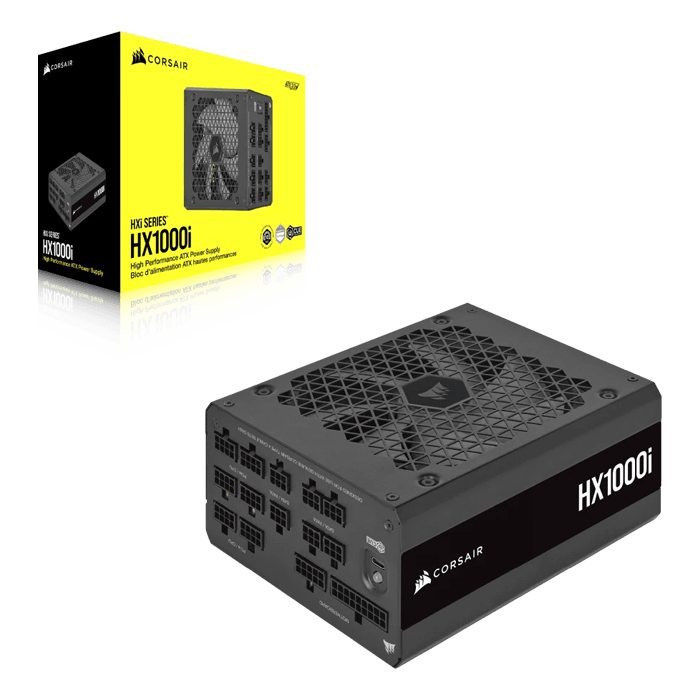

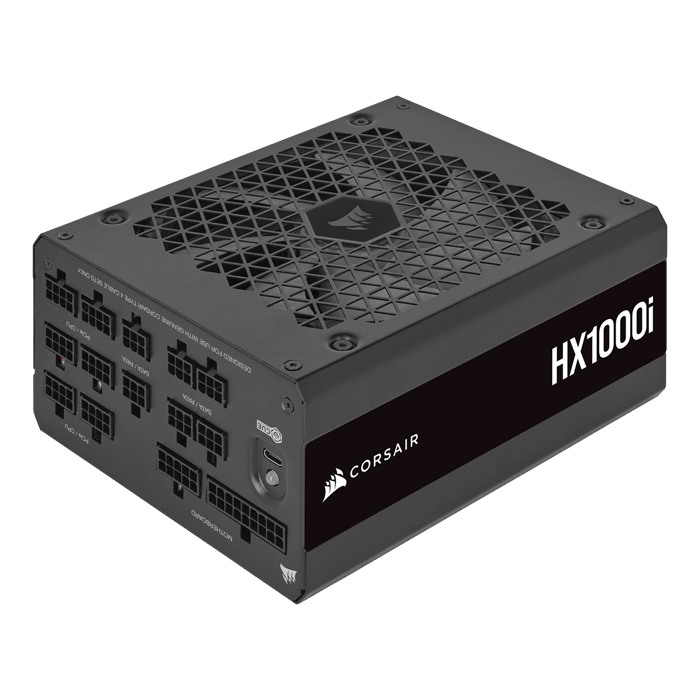

HX1000i, 80 PLUS Platinum 1000W, ATX 3.0, Fully Modular, ATX Power Supply
Quantity:
- SKU: 16217829
- Manufacturer: CORSAIR
- MPN: CP-9020259-NA
- Availability: LOW STOCK
Starting At
$259.99
HX1000i, 80 PLUS Platinum 1000W, ATX 3.0, Fully Modular, ATX Power Supply

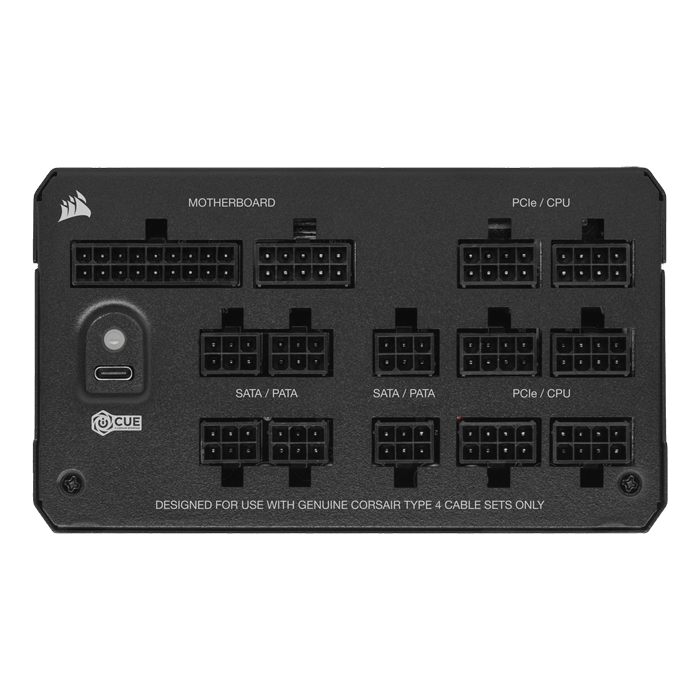

POWERFUL CONNECTIONS

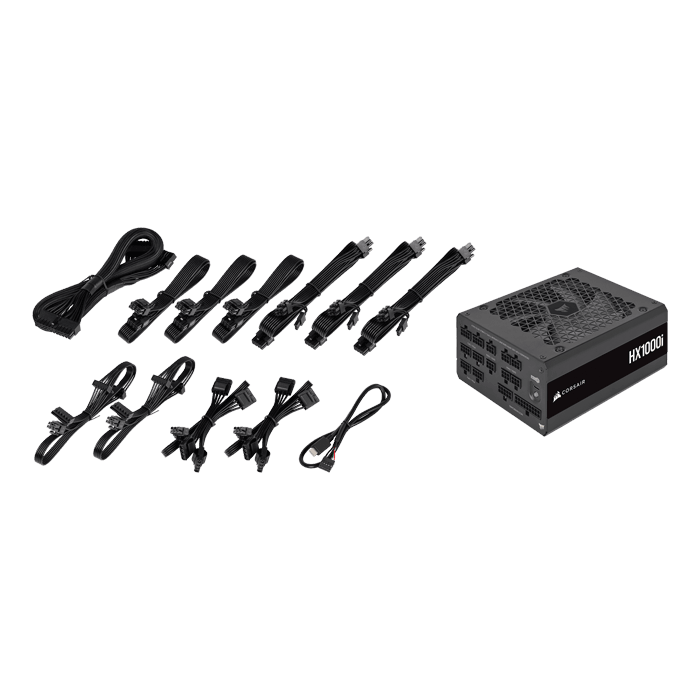

With three EPS12V connectors and fully modular cabling, HXi Series platinum power supplies have every connection needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and processors.
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, HXi Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
- Compatible with NVIDIA 4000 series and AMD® Ryzen 7000 series GPUs

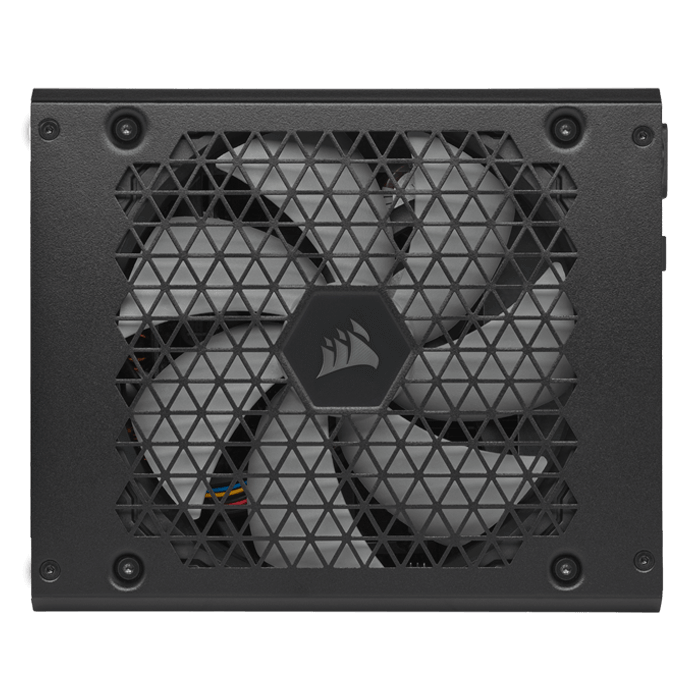

- Magnetic Levitation fan with Zero RPM mode
- 105°C rated 100% Japanese electrolytic capacitors
- 10 year warranty
- ATX 3.0 & PCIe 5.0 certified
| ATX Connector | 1 | |
| ATX12V Version | 3.0 | |
| Cable Type | Sleeved and Flat Black Cables | |
| Continuous Power W | 1000 Watts | |
| EPS Connector | 2 | |
| Fan Bearing Technology | Fluid Dynamic Bearing | |
| Fan Size MM | 140mm | |
| MTBF Hours | 100,000 hours | |
| Multi GPU Ready | Yes | |
| SATA Connector | 8 | |
| PATA Connector | 8 | |
| Modular | Fully | |
| PCIe Connector | 5 | |
| PSU Form Factor | ATX | |
| Zero RPM Mode | Yes | |
| 80 PLUS Efficiency | Platinum | |
| Warranty | 10 Year | |
| Weight | 3.71 | |
| HX1000i POWER TABLE | ||
| MODEL | RPS0131 | |
| PART NO. | CP-9020259/75-005684 | |
| AC INPUT RATING | ||
| AC INPUT | 100–240V | |
| INPUT CURRENT | 13A–6.5A | |
| FREQUENCY | 47~63Hz | |
| MAX LOAD | MAX OUTPUT | |
| +3.3V | 25A | 150W |
| +5V | 25A | |
| +12V | 83.3A | 999.6W |
| +5VSB | 3A | 15W |
| TOTAL POWER | 1000W | |
