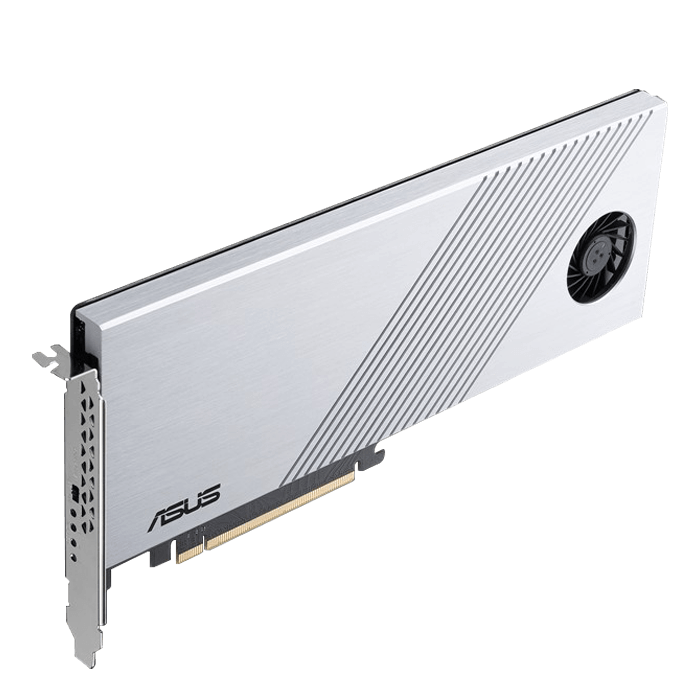

HYPER M.2 X16 GEN 4 CARD, Expansion NVMe M.2 Drives

SKU: 13242608

Manufacturer: ASUS

MPN: HYPER M.2 X16 GEN 4 CARD

Availability: Available


Price: $95.87
or as low as $3/month
Quantity:

RAID on CPU. The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel® X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs*.

  • Two-phase power solution with up to 14-watt output supports the latest NVMe drives
  • Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability

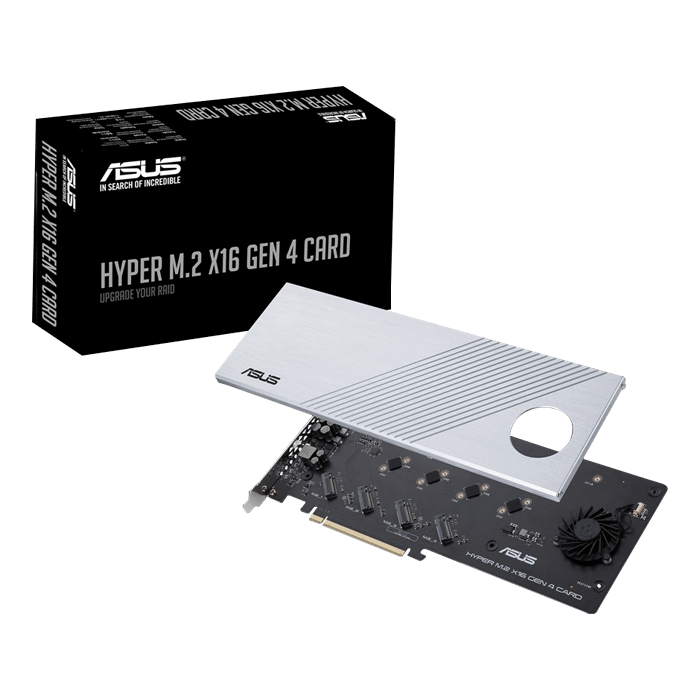

  • Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers
  • Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel® platform RAID-on-CPU functions
  • Also support other vendors’ motherboards via PCIe bifurcation in BIOS setting
Interface PCIe 4.0/3.0 x16 interface, compatible with PCIe x8 and x16 slots, support data transfer rates up to 256 Gbps.
External Connectors Up to 4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0/3.0)*
* Supports PCIe M.2 storage devices only. Maximum SSDs support will vary, depends on different motherboard's design.
LED & Button 1 x M.2 FAN Power Switch
4 x M.2 access LEDs
Features AMD TRX40/X570 Series Motherboard models with PCIe 4.0 support
Supports PCIe 3.0 bandwidth for other RAID on CPU models.

Maximum numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards.
Please see the FAQ link for full compatible lists and further information:
https://www.asus.com/support/FAQ/1037507
Dimentions 27 (L)*12.2(W) *1.5(H)cm
