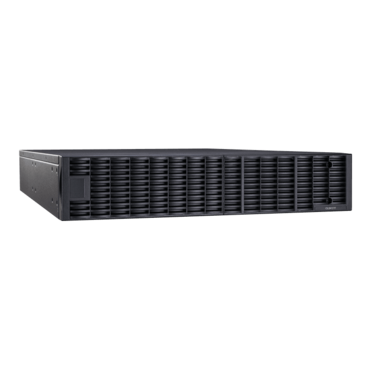

OL6KSTF, 6000VA/6000W, 208V, 7 Outlets, Black, Tower/2U Rackmount Step-Down Transformer
Quantity:
- SKU: 12116727
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OL6KSTF
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,339.95
- Step-down transformer: 6,000 VA / 6,000 W
- Output: 120 V, 208 V, 50/60 Hz
- Power conversion: 208 V from utility, UPS, or generator to 120 V output
- Plug type & cord: 6 ft NEMA L6-30P power cord

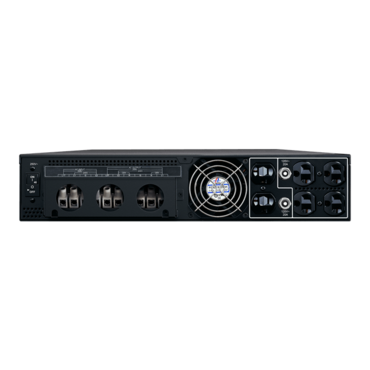

- Outlets: (6) NEMA 5-20R, (1) Hardwire Terminal Block
- Form factor: 2U Rack/Tower convertible
- Overload protection: Output circuit breakers
- Over temperature protection: Yes
- Warranty: Three year
| General | |
| Type | Step-Down Transformer |
| Over Temperature Protection | Yes |
| Input | |
| Nominal Voltage | 200 V to 240 V |
| Frequency | 50/60 Hz |
| Current Rating | 30 A |
| Plug Type | Hardwire (NEMA L6-30P power cord included) |
| Cord Length (ft) | 6 |
| Output | |
| VA | 6,000 (6 kVA) |
| Watts | 6,000 (6 kW) |
| Nominal Voltage | 120 V, 208 V |
| Frequency | 50/60 Hz |
| Outlets – Total | 7 |
| Outlet Type | (6) NEMA 5-20R, (1) Hardwire Terminal Block |
| Overload Protection | Circuit Breaker Protected |
| Physical | |
| Form Factor | Rack / Tower Convertible |
| Enclosure Construction | Steel |
| Rack Mounting Hardware | Included |
| Physical Dimensions | |
| Dimensions (WxHxD, in) | 17.05 x 3.5 x 24 |
| Dimensions (WxHxD, mm) | 433 x 88 x 600 |
| Weight (lb) | 95.5 |
| Weight (kg) | 43.4 |
| Rack Units | 2U |
| Shipping Dimensions | |
| Dimensions (WxHxD, in) | 23.6 x 13 x 35.4 |
| Dimensions (WxHxD, mm) | 600 x 330 x 900 |
| Weight (lb) | 128.19 |
| Weight (kg) | 58 |
| Environmental | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 0% to 90% (non-condensing) |
| Operating Elevation | 0 ft to 10,000 ft (0 m to 3,000 m) |
| Storage Temperature | -4 °F to 113 °F (-20 °C to 45 °C) |
| Storage Relative Humidity | 0% to 95% (non-condensing) |
| Storage Elevation | 0 ft to 50,000 ft (0 to 15,000 m) |
| Thermal Dissipation (100% Load) | 1379 BTU/h |
| Audible noise at 1M from surface of unit | 58 dBA |
| Compatibility | |
| UPS Models |
OL3000RTXL2UHV OL3000RTXL2UHV OL5KRTHD OL6000RT3UPDU OL6KRT OL6KRT3UHW OL6KRTHD OL6KRTHW OL6KRTMB OL8000RT3U OL8000RT3UPDU OL8KRT3UHW OL8KRTHW OL8KRTMB OL10000RT3U OL10000RT3UPDU OL10KRT3HW OL10KRTHW OL10KRTMB |
| Certifications | |
| Safety |
UL 1778 5th Ed. CSA C22.2 NO.107.3-05 |
| Environmental | RoHS Compliant |
| WARRANTY | |
| Extended 2-Year Warranty | Optional WEXT5YR-ACC2C |
| Product Warranty | 3 Years Limited |
