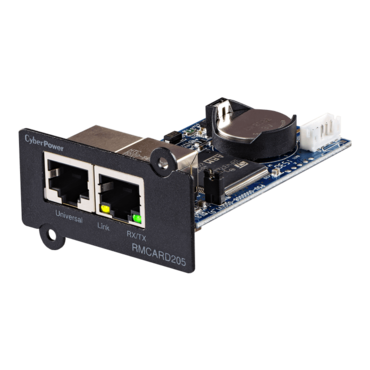

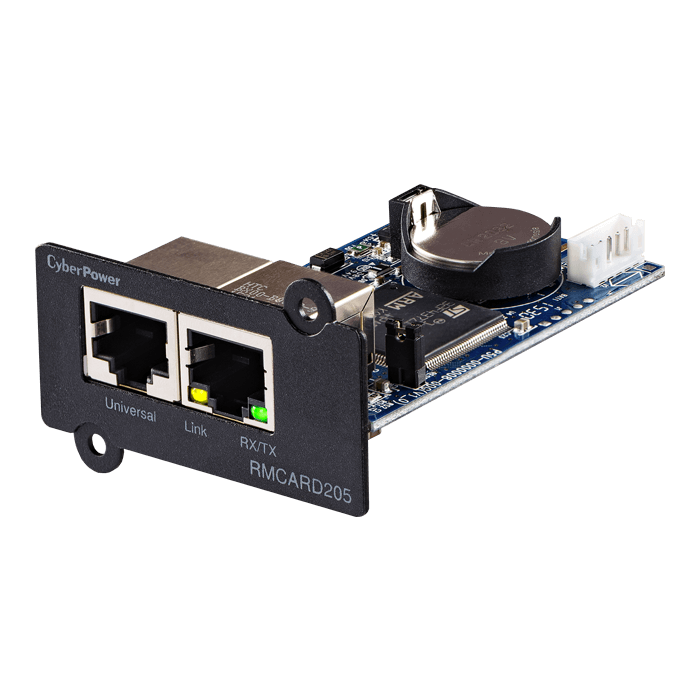

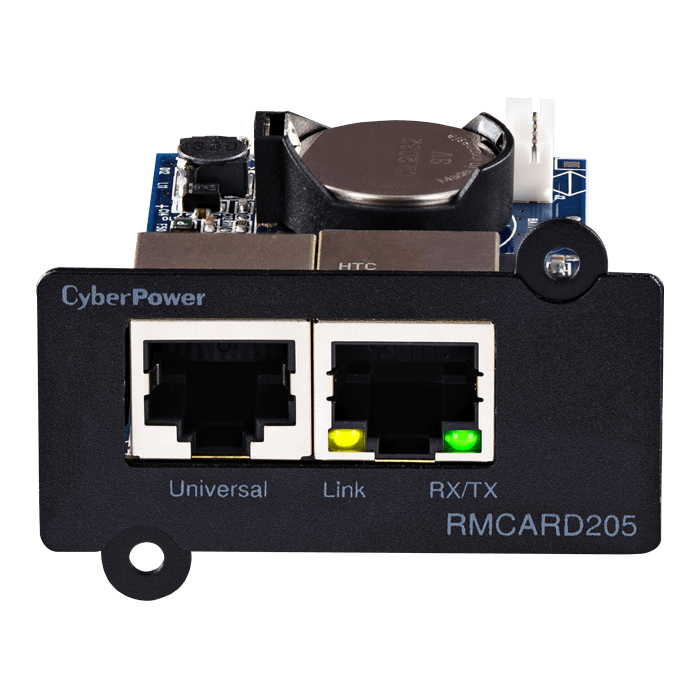

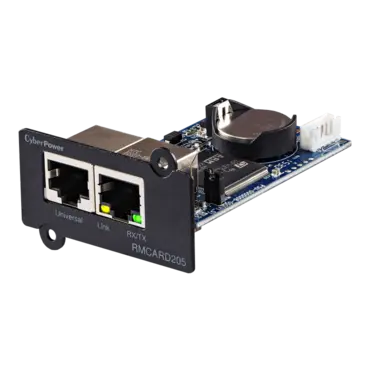

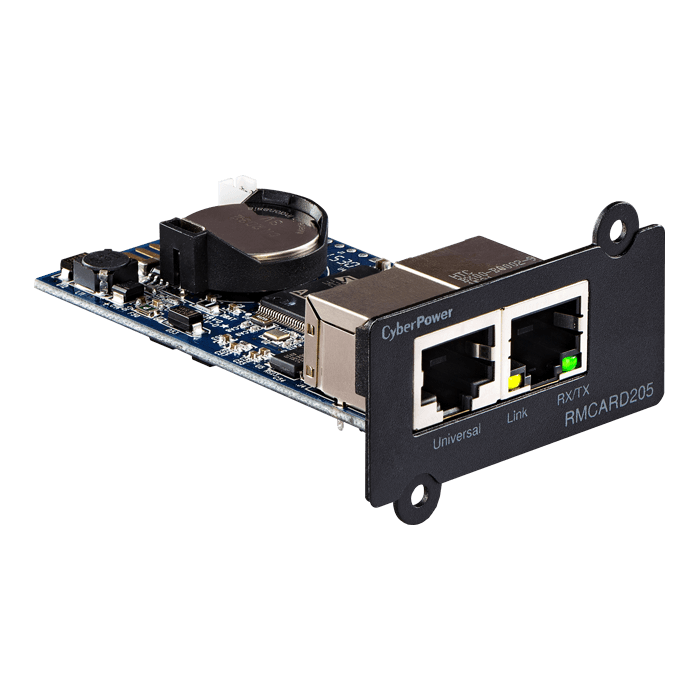

Hardware RMCARD205, Network UPS & ATS PDU Remote Management Card
Quantity:
- SKU: 10024795
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: RMCARD205
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$309.95
Hardware RMCARD205, Network UPS & ATS PDU Remote Management Card
A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD205 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.
- Supported Protocols: TCP/IP, UDP, FTP, SCP, DHCP, DNS, SSH, Telnet, HTTP/HTTPS, SNMPv1/v3, IPv4/v6, NTP, SMTP, and Syslog
- Remote management: Web browser, CLI, SNMP or NMS
- Auto shutdown: Workstations, multiple servers
- Auto shutdown clients: 50
- Auto event notification: Email, SMS, SNMP Traps, Syslog
- Remote scheduling: Shutdown, startup, reboot
- Ethernet speeds: 10/100 Mbps
- Environmental Sensor compatible: Yes
- Upgradable firmware: Yes, via FTP or SCP
- Warranty: 3 year
| General | |
| Data Link Protocol | Ethernet 100Base-TX, Ethernet 10Base-T |
| Universal Port | Optional ENVIROSENSOR |
| Management & Communications | |
| LED Indicators |
Tx/Rx LINK |
| Network Protection RJ45 | Ethernet RJ45 |
| Supported Protocols | |
| Cisco EnergyWise | v1.2.0 and newer |
| DHCP | RFC 2131 |
| DNS | RFC 1035 |
| FTP | RFC 959 |
| HTTP | v1.1: RFC 2616 |
| HTTPS | RFC 2818 |
| LDAP | v3: RFC 2251 |
| LDAPS | v3: RFC 4513 |
| MIB | RFC 1213, RFC 1628 |
| NTP | RFC 958 |
| RADIUS | RFC 2865 |
| SCP | v2: RFC 4253, RFC 4254 |
| SMTP | RFC 2821 |
| SMTPS | RFC 3207 |
| SNMP |
v1: RFC 1155, RFC 1156, RFC 1157 v3: RFC 3414 |
| SSH | v2: RFC 4253, RFC 4254 |
| SSL | v3: RFC 6101 |
| SysLog | RFC 5424 |
| TCP/IP |
v4: RFC 791 v6: RFC 2460 |
| TLS |
v1: RFC 2246 v1.1: RFC 4346 v1.2: RFC 5246 |
| Telnet | RFC 854 |
| Physical | |
| Color | Black |
| Dimensions – HxWxD (in) | 1.42 x 2.13 x 3.0 in |
| Dimensions – HxWxD (mm) | 36.06 x 54.0 x 76.2 mm |
| Dimensions – WxHxD (in) | 2.13 x 1.42 x 3.0 in |
| Weight (lbs) | 0.08 |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 5.41 x 3.61 x 7.62 (cm) |
| Physical Dimensions – (WxHxD) (in) | 2.13 x 1.42 x 3 (in) |
| Physical Dimensions – (WxHxD) (mm) | 54 x 36 x 76 (mm) |
| Weight (kg) | 0.04 |
| Weight (lb) | 0.08 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 0.23 |
| Shipping – Weight (lb) | 0.5 |
| Shipping Dimensions – (WxHxD) (cm) | 5.84 x 16.51 x 16.76 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 2.3 x 6.5 x 6.6 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 58.42 x 165.1 x 167.64 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 14 – 122 °F (-10 – 50 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
FCC DoC Class A CE |
| Warranty | |
| Extended Warranty Option | WEXT5YR-ACC1A |
| Product Warranty | 3 Years Limited Warranty |
