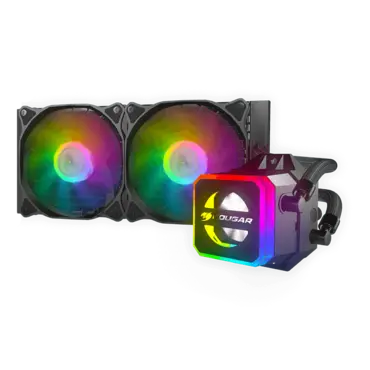

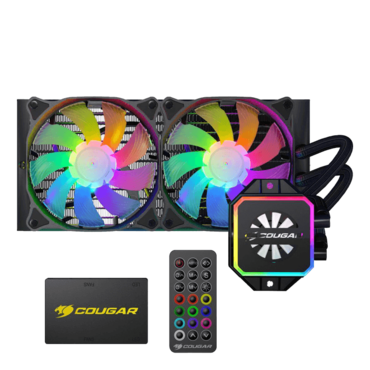

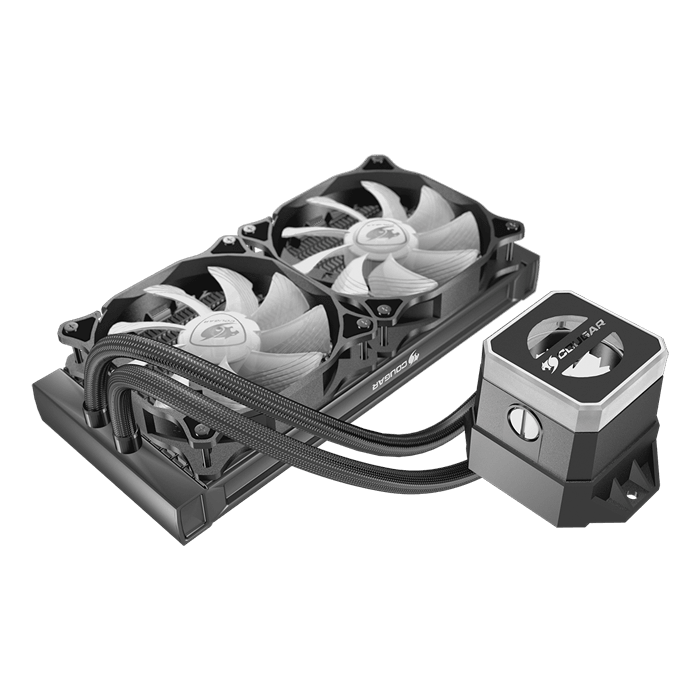

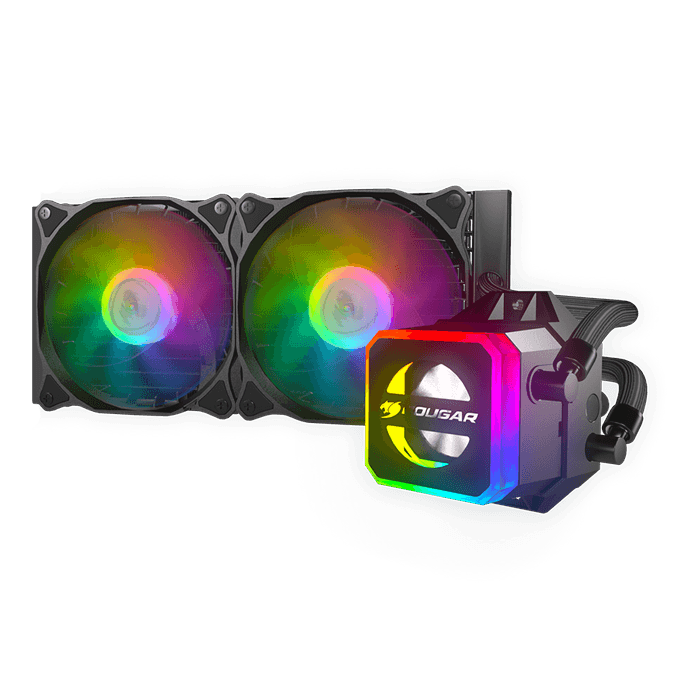

Helor 240, ARGB w/ Core Box v2 & Remote Control, 240mm Radiator, Liquid Cooling System

SKU: 13176788

Manufacturer: COUGAR

MPN: RL-HLR240-V1

Availability: Low Stock


Price: $153.59
or as low as $5/month
Quantity:

COUGAR Helor 240 (RL-HLR240-V1). Helor. LET THERE BE COOL. COUGAR’s Helor Liquid Cooling Series is the perfect solution for gamers who require powerful CPU cooling with astounding visuals.

Model Name Helor 240 Helor 360
Model Number RL-HLR240-V1 RL-HLR360-V1
CPU Socket Intel Socket 2066, 2011, 2011-3, 1366, 1156, 1155, 1151, 1150, 775
AMD Socket AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 (*)
* Not compatible with Socket TR4
Model Name Helor 240 Helor 360

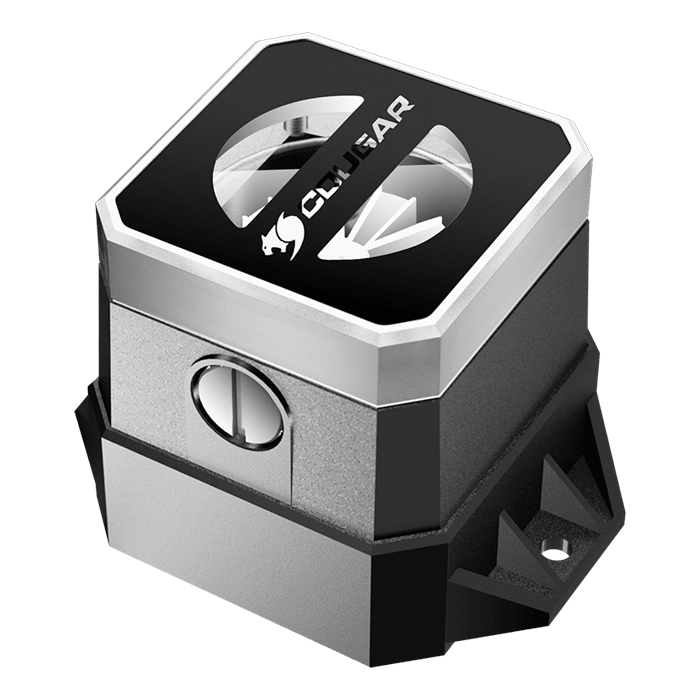

Water Block & Pump
Dimensions (WxDxH) 81.8 x 94.8 x 78.3 mm
Cold Plate Material Copper with Nickel Plating
Pump Speed 2700 ± 10% R.P.M
Rated Voltage 12 VDC
Rated Current 0.28 A
Power Consumption 3.36 W
Cable Length Pump power: 300 mm / LED power: 600 mm
Connector & Control 3 Pin Fixed Speed
Lights 12 Addressable RGB LEDs (5V)
Radiator
Type 240mm 360mm
Dimensions (WxDxH) 277 x 120 x 27 mm 394 x 120 x 27 mm
Material Aluminum
Package
Package Content Helor 240 x 1
Vortex Omega 120 x 2
Helor 360 x 1
Vortex Omega 120 x 3
Mounting Kit x 1
Core Box v2 & Power Connector x 1
Wireless Controller x 1
5V Addressable Header Adapter (Core Box v2 to M/B) x 1
1 to 3 Fan Splitter x 1
Maintenance Kit (100 ml Coolant & 1g Thermal Paste) x 1
User Manual x 1
Model Name Helor 240 Helor 360
Tubing
Material Durable Rubber with Sleeves
Length 360 & 400 mm
Fans

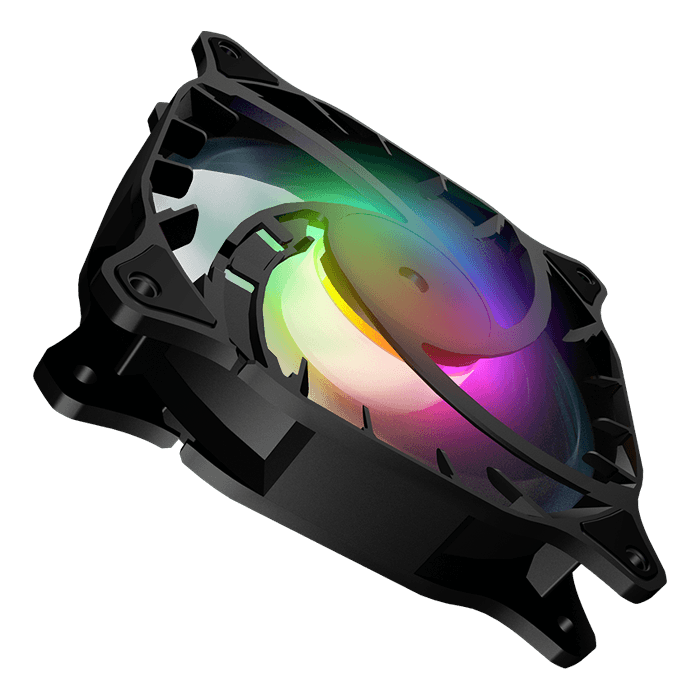

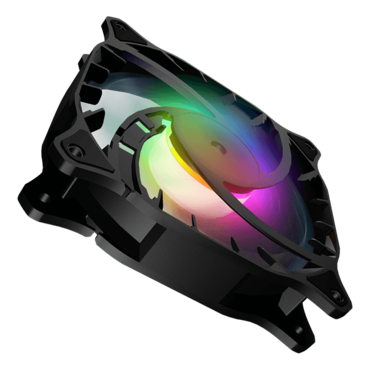

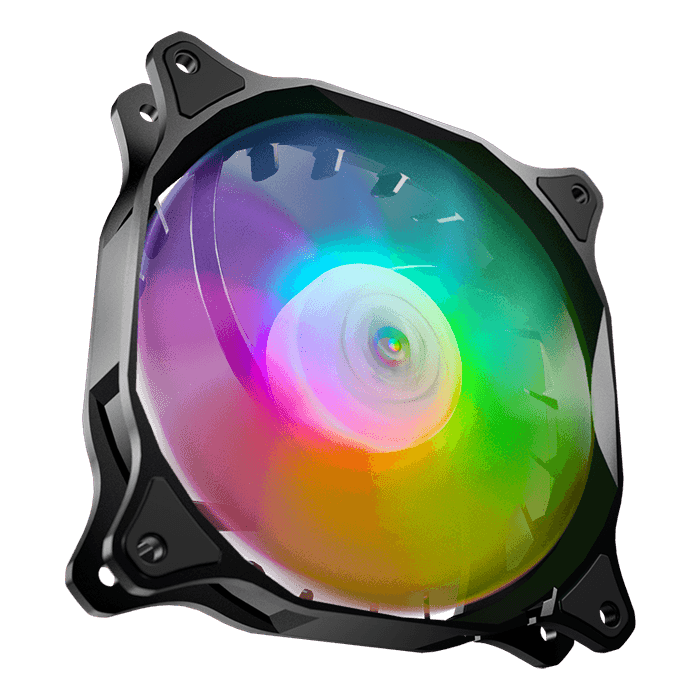

Fan Model Vortex Omega 120
Fan Quantity 2 3
Dimensions (WxDxH) 120 x 120 x 25 mm
Bearing Type Hydro-Dynamic Bearing
Fan Speed 600-1800 ± 200 R.P.M
Air Flow 78.4 CFM (Max.)
Air Pressure 2.4 mm-H2O (Max.)
Acoustic Noise 37.1 dBA (Max.)
Rated Voltage 12 VDC
Rated Current 0.32 A
Power Consumption 3.84 W
Cable Length Fan power : 600 mm / LED power : 600 mm
Connector & Control 4 Pin PWM
Lights 10 Addressable RGB LEDs (5V)
