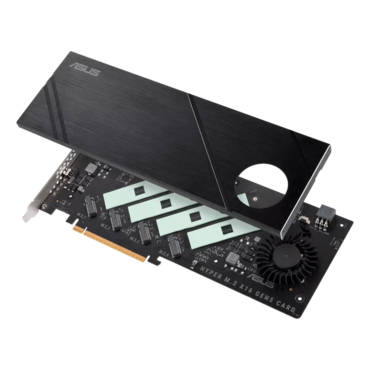

Hyper M.2 x16 Gen5 Card, Expansion NVMe M.2 Drives
- SKU: 16984510
- Manufacturer: ASUS
- MPN: HYPER M.2 X16 GEN5 CARD
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$103.81
- 1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives

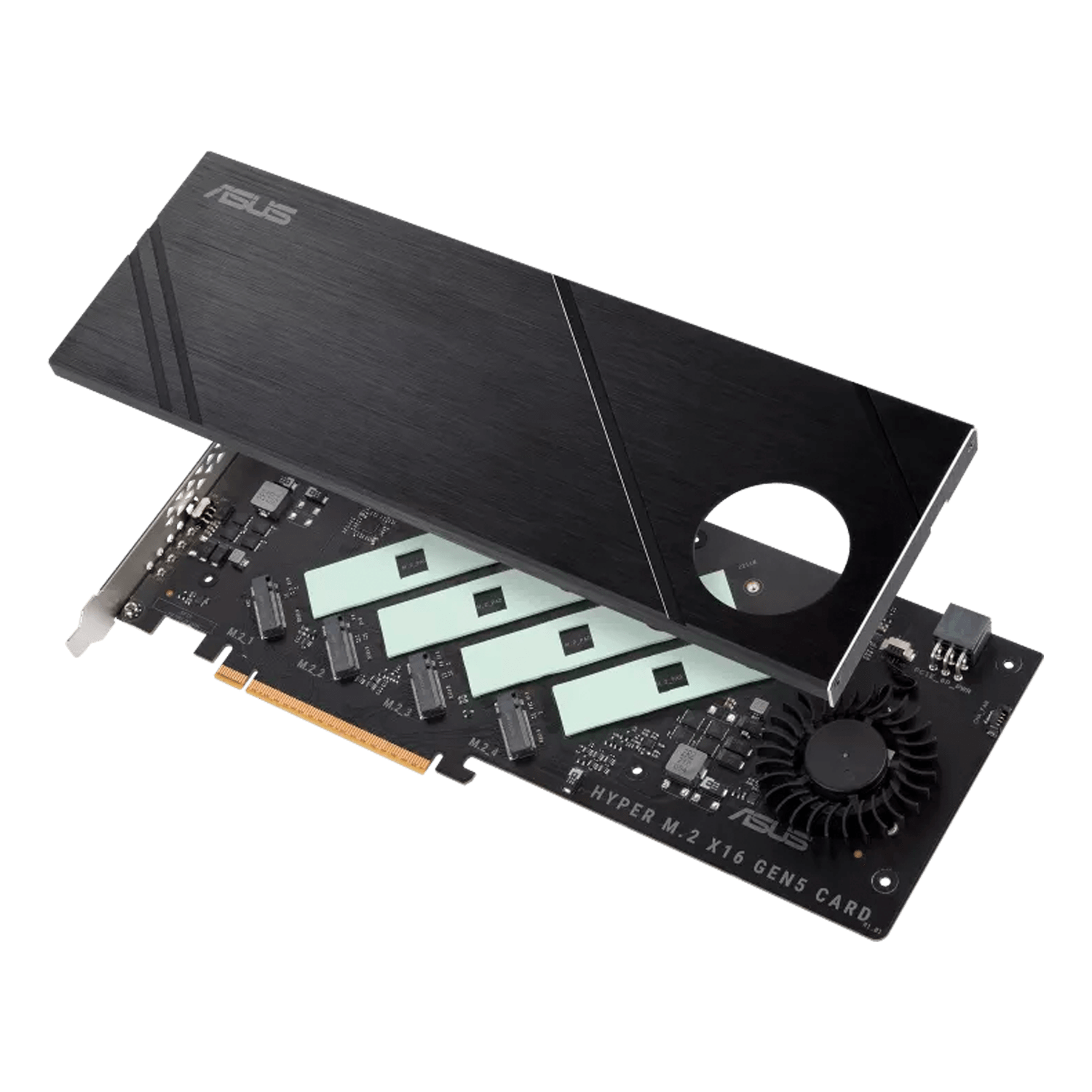

- Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard's chassis fan header to allow the motherboard to control and regulate fan speed

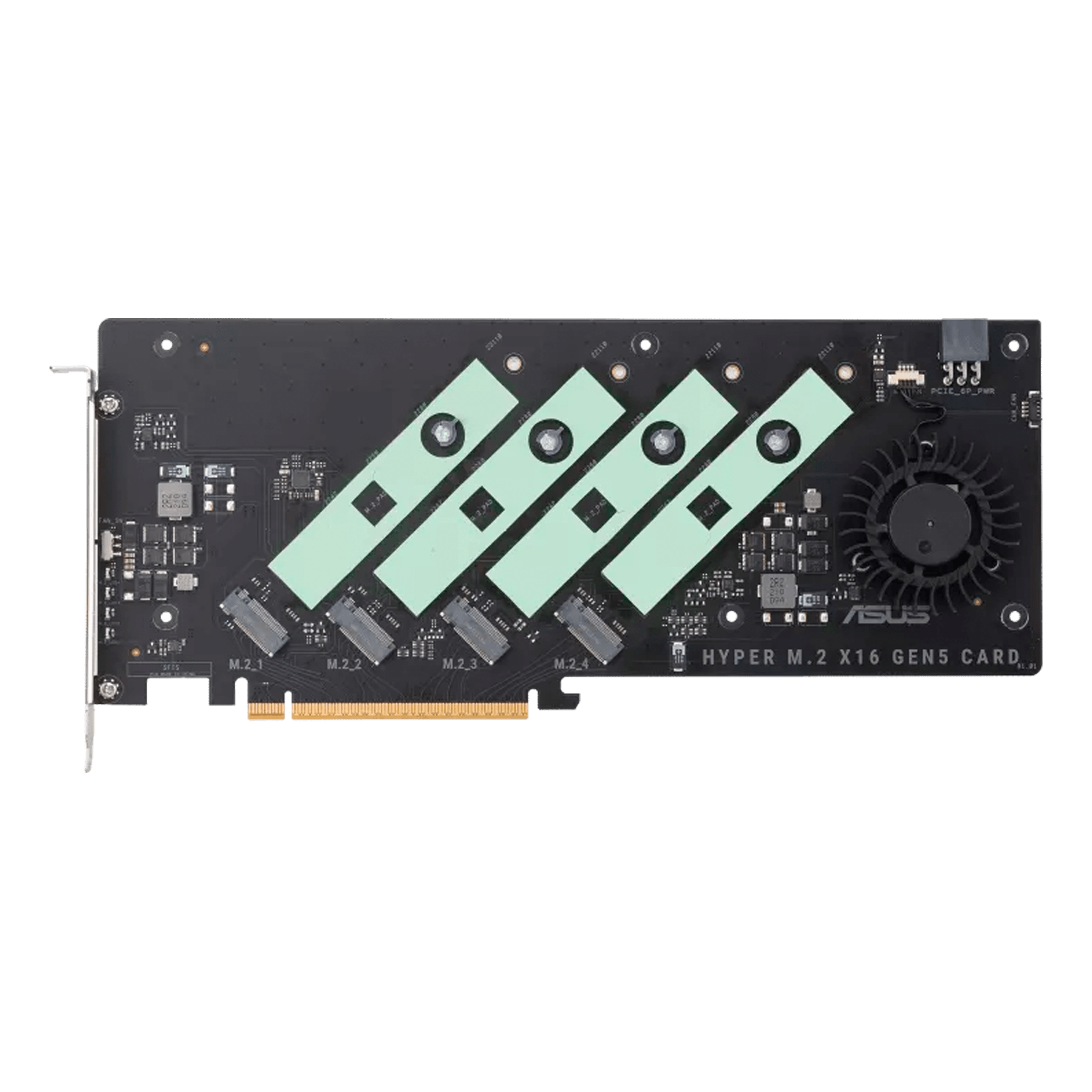

- Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers
| Model | Hyper M.2 x16 Gen5 Card |
| Spec |

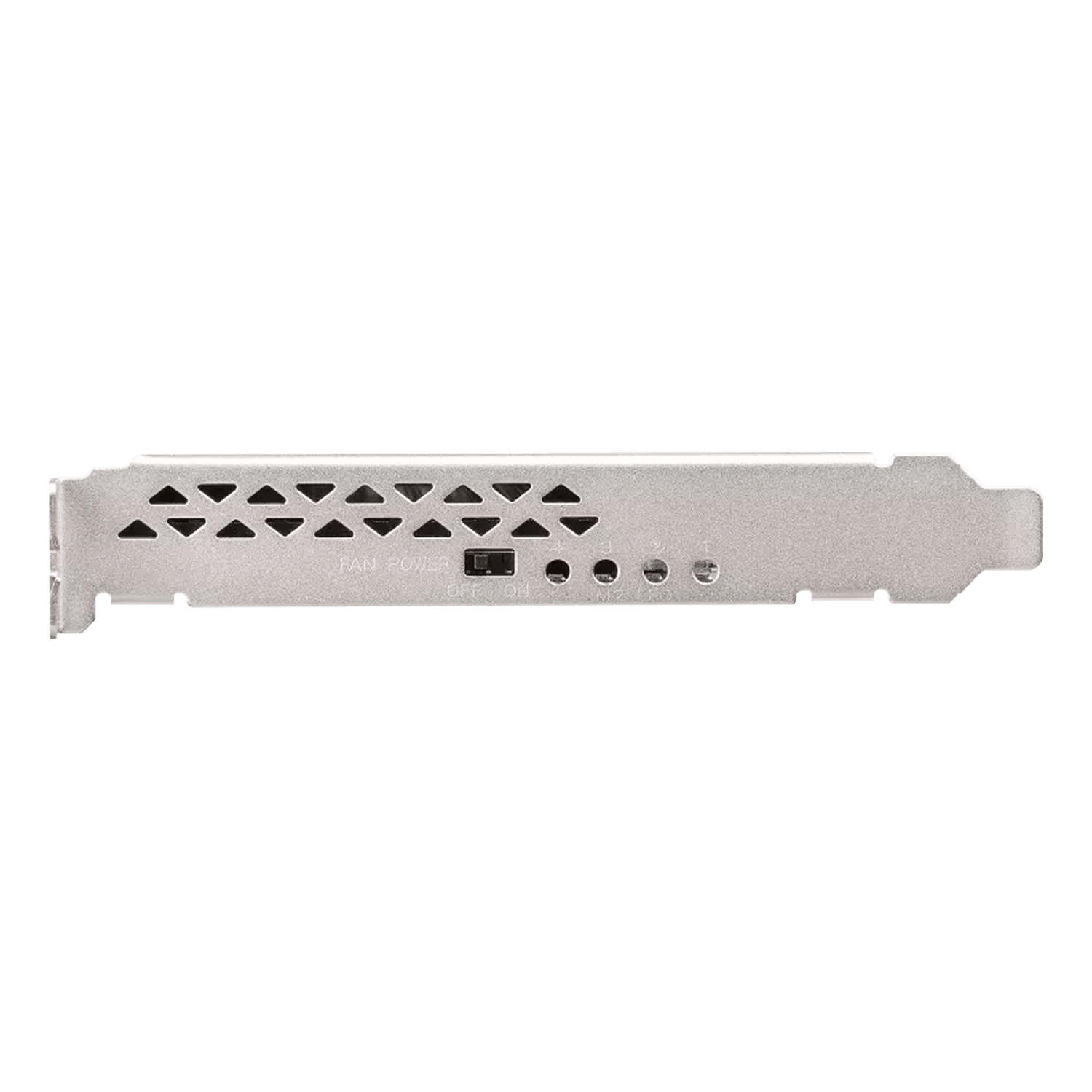

PCIe 5.0 x16 interface, support data transfer rates up to 512 Gbps. 4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0)* * Supports PCIe M.2 storage devices only. 1 x M.2 FAN Power Switch 4 x M.2 access LEDs Active fan with heatsink, support fan control from MB chassis fan header |
| Dimensions | 29 (L)*12.2(W) *1.5(H)cm |
