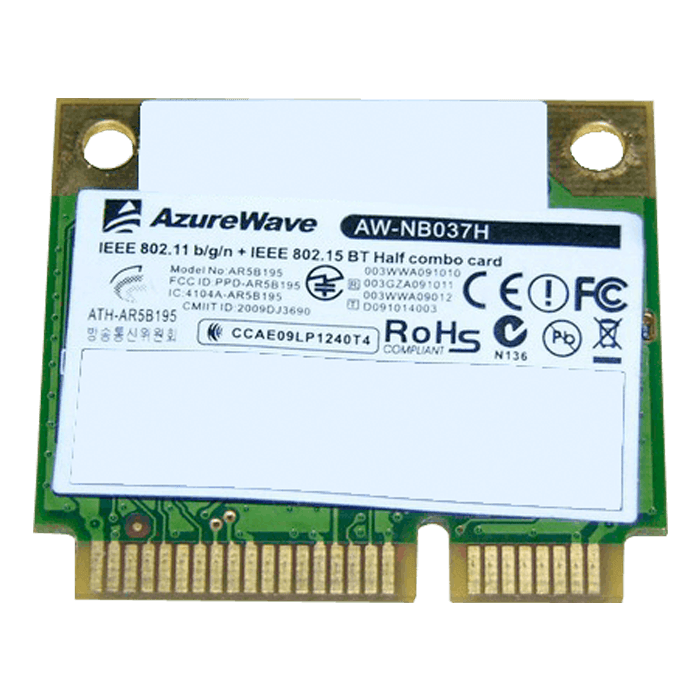

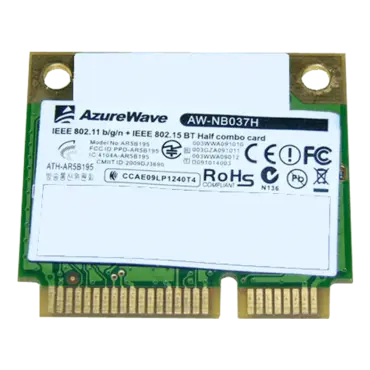

IEEE 802.11b/g/n Wi-Fi with Bluetooth 3.0 + HS class II Combo half Size Mini Card

  • SKU: 9786454
  • Manufacturer: AzureWave
  • MPN: AW-NB037
Starting At
IEEE 802.11b/g/n Wi-Fi with Bluetooth 3.0 + HS class II Combo half Size Mini Card

The AW-NB037 IEEE 802.11 b/g/n PCI-E WI-FI with Bluetooth 3.0 +HS class II combo module is a highly integrated wireless local area network(WLAN) solution to let users enjoy the digital content through the latest wireless technology without using the extra cables and cords. And it combines with Bluetooth 3.0+HS class II and provides a complete 2.4GHz Bluetooth system and is fully compliant to Bluetooth 3.0+HS and BT2.1 that supports EDR of 2Mbps and 3Mbps for data and audio communications. It enables a high performance, cost effective, low power, compact solution that easily fits onto two sides of the PCI Express and USB Combo Half Mini Card.

Compliant with the IEEE 802.11b/g/n standard, the AW-NB037 uses Direct Sequence Spread Spectrum(DSSS), Orthogonal Frequency Division Multiplexing (OFDM), BPSK, QPSK, CCK and QAM baseband modulation technologies.

A high level of integration and full implementation of the power management functions specified in the IEEE 802.11 standard minimize system power requirements by using AW-NB037.

  • PCI-E half size Mini-Card
  • Compliant with IEEE802.11 b/g/n standard
  • 2 Antenna to support 1 (Transmit) x 1 (Receive)
    technology and Bluetooth
    - Antenna 1: WiFi --> TX/RX
    - Antenna 2: Bluetooth --> TX/RX
  • High speed wireless connection up to 150 Mbps
  • Low power consumption and high performance
  • Enhanced wireless security
  • Fully qualified Bluetooth v2.1 system
  • Fully qualified Bluetooth v3.0+HS system
  • Fully speed operation with Piconet and Scatternet support
