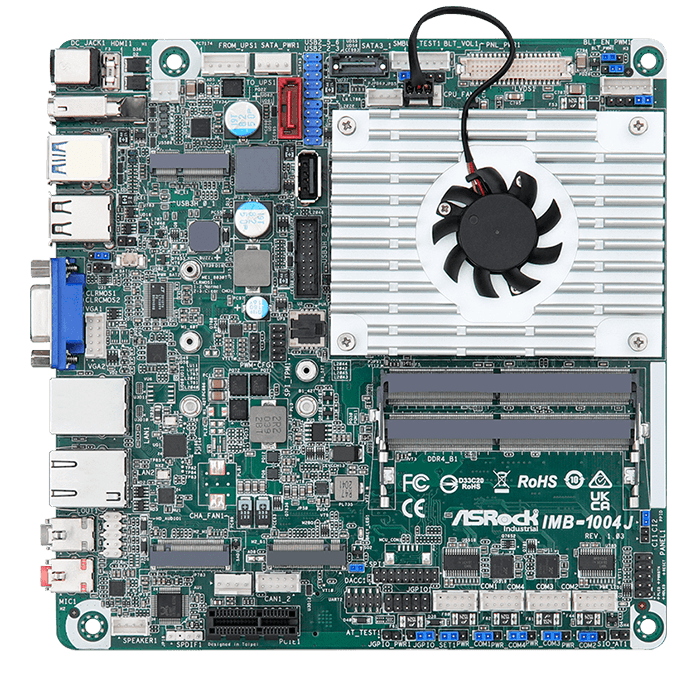

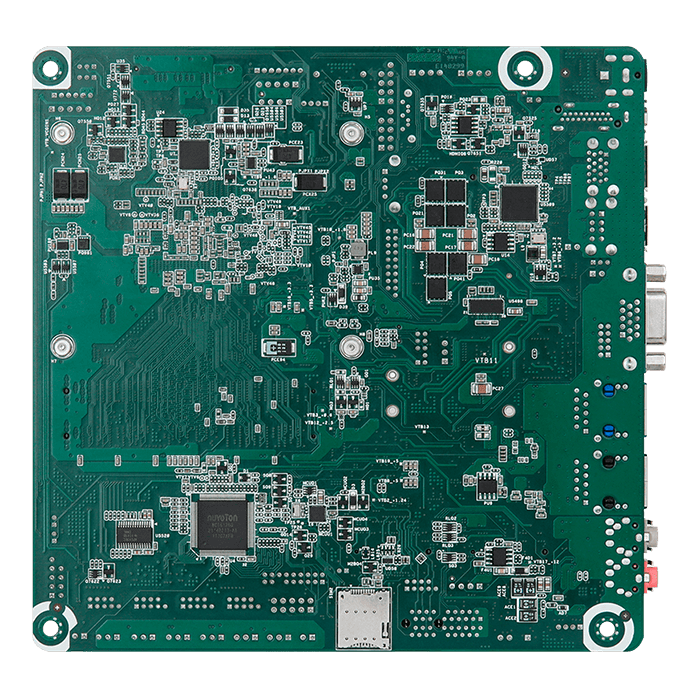

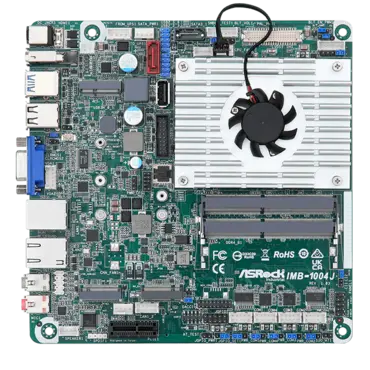

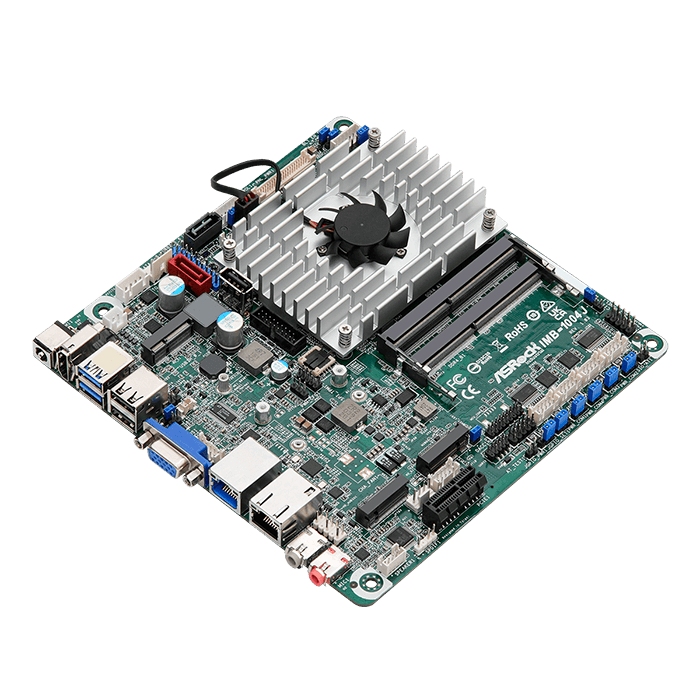

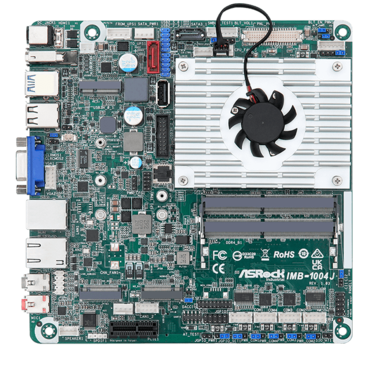

IMB-1004J, Intel® Celeron® J6412 Processor, 4x COM, 1x 2.5 GbLAN, 1x 1 GbLAN, Mini-ITX Motherboard
Quantity:
- SKU: 15064389
- Manufacturer: ASROCK
- MPN: IMB-1004J
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$280.59
- Intel® ElkHart Lake SoC Processors
- 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
- 1 x PCIE x1 Gen3, 4 x USB 3.2 Gen1, 7 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 4 x COM, 2 x SATA3
- 1 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
- Support Triple display, 1 x LVDS or eDP, 1 x HDMI 2.0b, 1 x VGA
- TPM Header
- 12~28V DC-In
| Form Factor | |
|---|---|
| Dimensions | Mini-ITX (6.7-in x 6.7-in) |
| Processor System | |
| CPU |
Intel® Elkhart Lake SoC Processors J6412, QC, Max Speed Up to 2.6GHz, 10W |
| Chipset | SoC |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Dual Channel DDR4 3200 MHz |
| Capacity | 32GB |
| Socket | 2 x 260-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Gen 11 Graphics |
| HDMI |
HDMI 2.0b Max resolution up to 4096 x 2160@60Hz |
| LVDS |
Dual channel 24 bit up to 1920 x 1080@60Hz (Connector shared with eDP) |
| MultiDisplay | Triple Display |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| eDP |
Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| Expansion Slot | |
| PCIe | 1 x PCIe x1 (Gen3) |
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2/USB 2.0 and SIM for 4G/5G |
| SIM Socket | 1x SIM socket connected to M.2 key B |
| Audio | |
| Interface | Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out |
| Ethernet | |
| Controller/ Speed |
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps |
| Connector | 2 x RJ-45 |

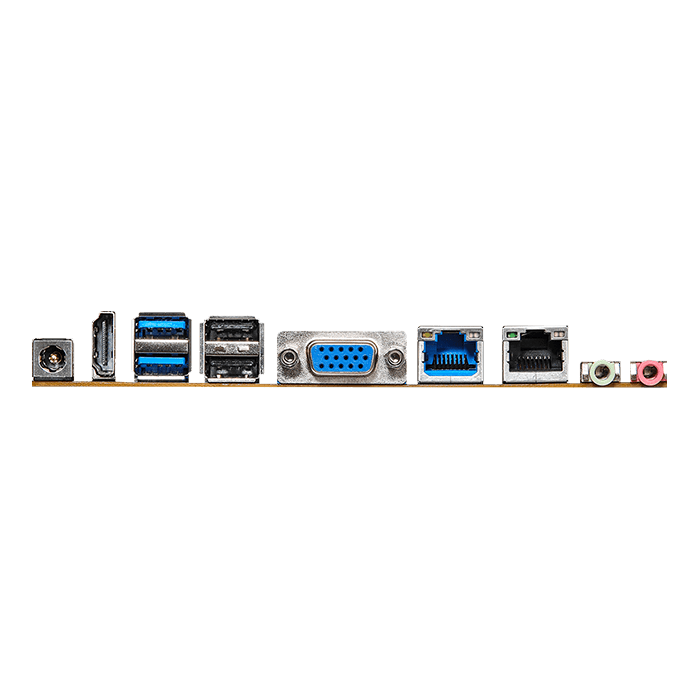

| Rear I/O | |
| HDMI | 1 x HDMI2.0b |
| VGA | 1 |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 (Gen1), 2 x USB 2.0 |
| Audio | 2 (Mic-In, Line-Out) |
| DC Jack | 1 |
| Internal Connector | |
| USB |
2 x USB 3.2 Gen1 (1 x USB 3.2 header ) 4 x USB 2.0 (2 x 2.54 pitch header) 1 x USB 2.0 (Type A) |
| COM |
2 x COM (RS-232) 2 x COM (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO (support Time-Aware GPIO) |
| TPM | TPM Header |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| VGA | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| CAN Bus | 2 x CAN Bus (1 x 2.00 pitch header) |
| Storage | |
| M.2 | 1 x M.2(Key M, 2242/2260/2280) with SATA3 and PCIex1 for SSD |
| SATA | 2 x SATA3 (6Gb/s) |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | 12~28V DC-In with 4-pin wafer PWR cable or DC Jack |
| Power On |
AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Accessories | |
| Bulk Package |
1 x I/O Shield (13G020440020AK) 1 x I/O Shield THIN (13G020440030AK) 1 x SCREW M2*2,D=5 (13G020302031AK) |
