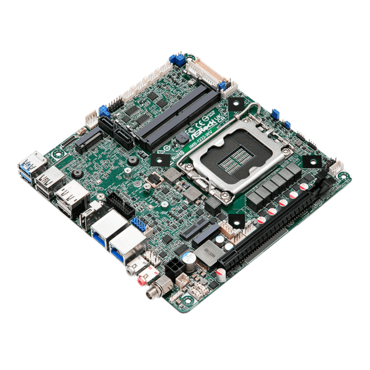

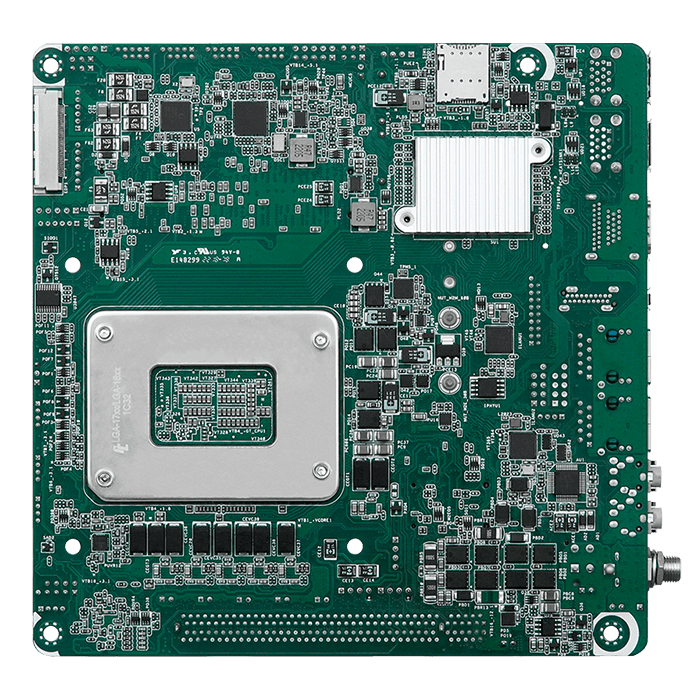

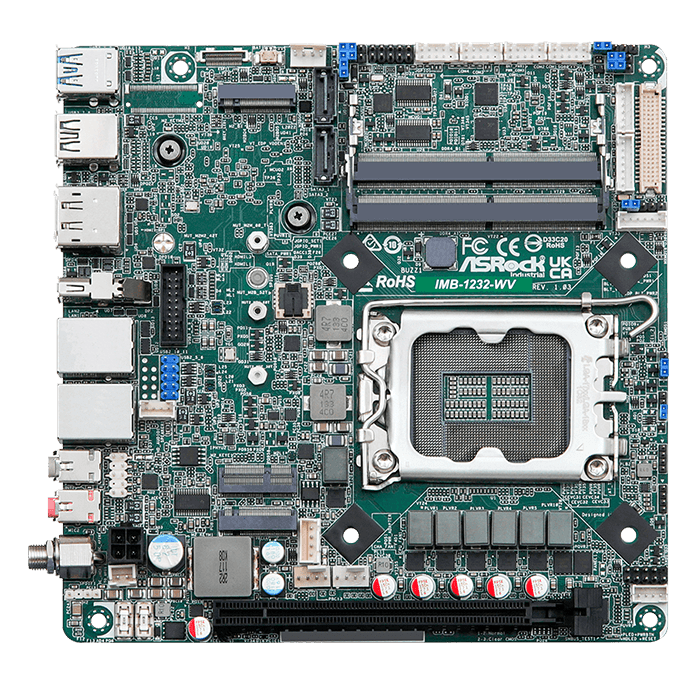

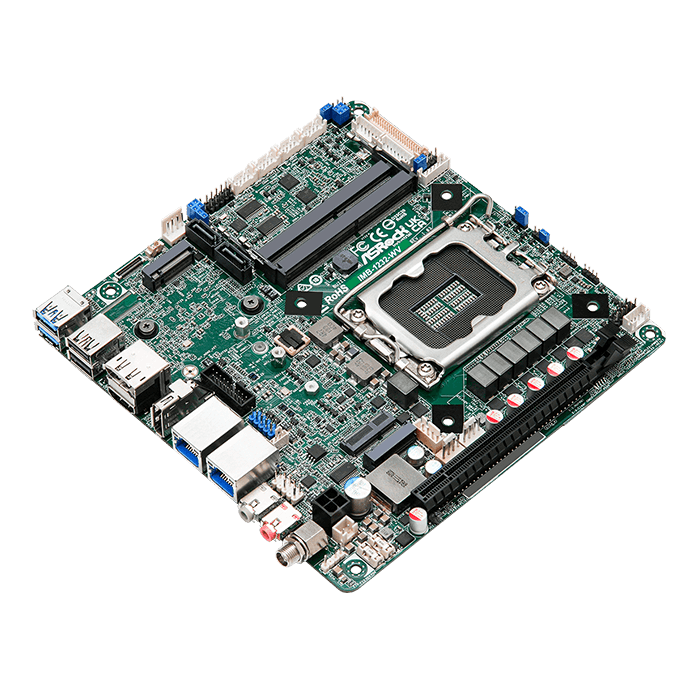

IMB-1232-WV, Intel® H610 Chipset, LGA 1700, 4x COM, 2x 2.5 GbLAN, Mini-ITX Motherboard

Quantity:
  • SKU: 15048394
  • Manufacturer: ASROCK
  • MPN: IMB-1232-WV
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$286.34
Quantity:
  • Intel® 12th Gen (Alder Lake-S) Core™ Processors with H610 chipset
  • 2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
  • 1 x PCIe x16 (Gen4), 2 x USB 3.2 Gen2, 1 x USB 3.2 Gen1, 5 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 1 x M.2 Key M, 4 x COM, 2 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Triple display, 1 x HDMI 2.0b, 2 x DP 1.4a, 1 x LVDS, 1 x eDP1.4b
  • TPM 2.0 onboard IC
  • 12~28V DC-In (Lockable DC Jack)
Form Factor
Dimensions Mini-ITX (6.7-in x 6.7-in x 1.0-in)
Processor System
CPU Intel® 12th Gen (Alder Lake-S) Core™ Processors, up to 65W
Chipset Intel® H610
Socket LGA1700
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
eDP eDP1.4b
Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920x1200@60Hz
MultiDisplay Triple Display
Expansion Slot
PCIe 1 x PCIe x16 (Gen4)
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB3.2 Gen1/USB 2.0 and SIM for 4G/5G
SIM Socket 1 x Socket connected to M.2 Key B
Audio
Interface Realtek ALC897, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed LAN1: Intel® I225LM with 10/100/1000/2500 Mbps
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

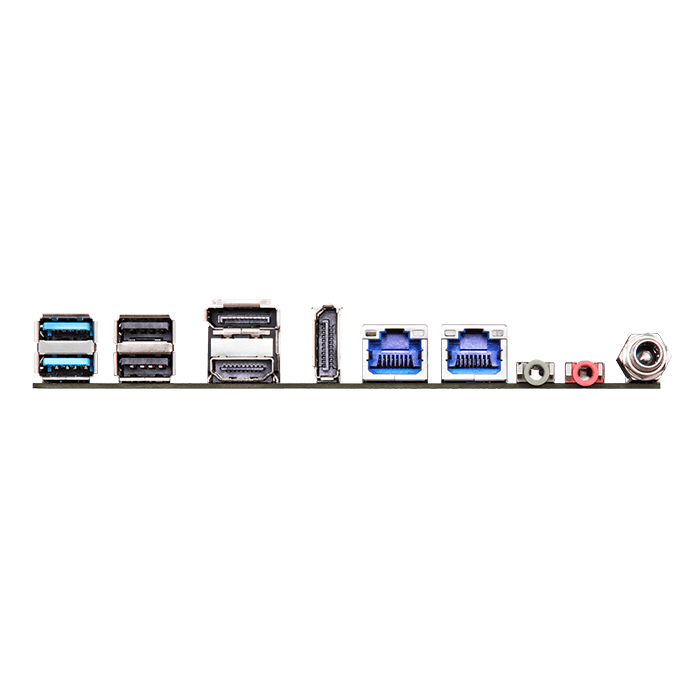

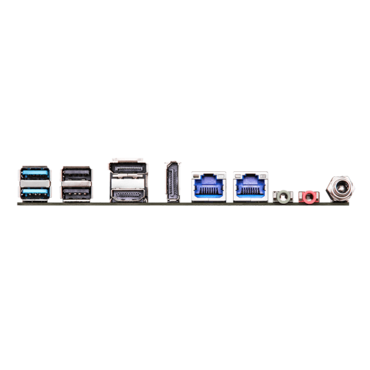

Rear I/O
HDMI 1 x HDMI 2.0b
DisplayPort 2 x DP 1.4a++
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 (Gen2)
2 x USB 2.0
Audio 2 (Mic-in, Line-out)
Internal Connector
USB 1 x USB 3.2 Gen1 (1 x USB 3.2 header)
3 x USB 2.0 (1 x 2.54 pitch header)
COM COM1, COM2 (RS-232/422/485)
COM3, COM4 (RS-232)
GPIO 4 x GPI, 4 x GPO
TPM TPM 2.0 onboard IC
LVDS 1
eDP 1
SATA PWR Output 1
Speaker Header 1
Storage
M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD
SATA 2 x SATA3 (6Gb/s)
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR 12~28V DC-In with 4-pin wafer PWR cable or DC Jack(Screw type)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
