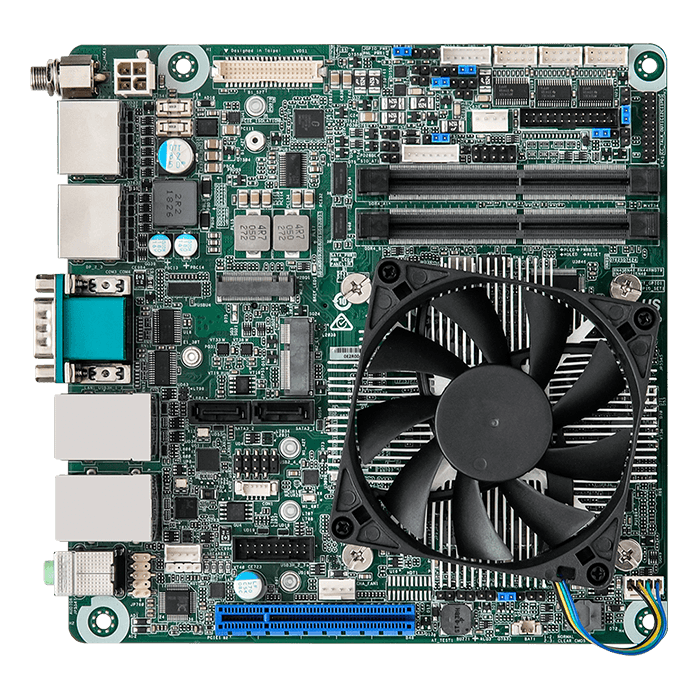

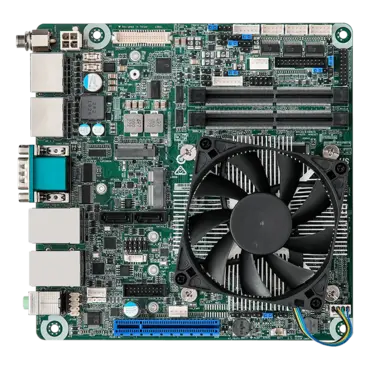

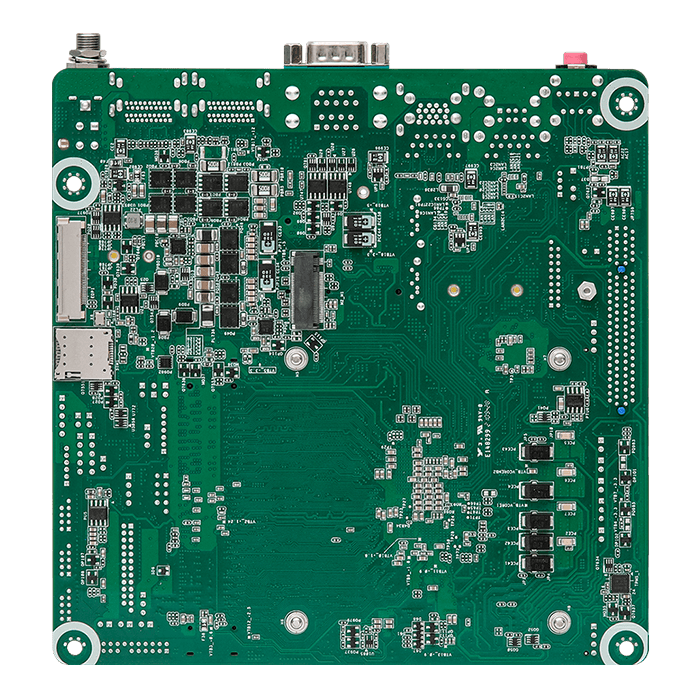

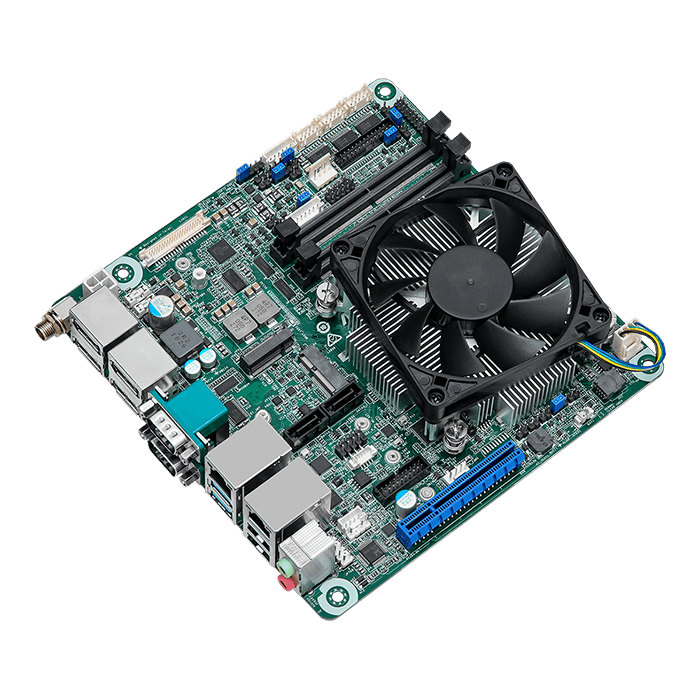

IMB-V2000M, AMD Ryzen™ Embedded V2718, 5x COM, 1x 2.5 GbLAN, 1x 1 GbLAN, Mini-ITX Motherboard

Quantity:
  • SKU: 15064404
  • Manufacturer: ASROCK
  • MPN: IMB-V2000M
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$615.23
Quantity:
  • AMD Ryzen™ Embedded V2000 SoC processors
  • 2 x 260-pin ECC/non-ECC SO-DIMM DDR4 3200 MHz, up to 64GB (32GB per DIMM)
  • 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 1 x PCIe x8, 5 x COM, 2 x SATA3
  • 1 x Realtek 1 Gigabit LAN (Support DASH), 1 x Realtek 2.5 Gigabit LAN
  • Support Quad display, 1 x LVDS, 1 x eDP, 3 x DP 1.2, 1 x DP 1.4
  • TPM header
  • Support DASH, Teaming funciton
  • 12~28V DC-In (Lockable DC Jack)
Form Factor
Dimensions Mini-ITX (6.7-in x 6.7-in x 1.5-in)
Processor System
CPU AMD Ryzen™ Embedded V2000 SoC processors, up to 54W
V2718, 1.7GHz, 10-25W
Chipset SoC
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity 64GB (32GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller AMD Radeon™ Graphics
DisplayPort 3 x DP 1.2a, Max resolution up to 3840x2160 @60Hz
1 x DP 1.4, Max resolution up to 5120x2880 @120Hz
LVDS LVDS shared with DP_1
Dual channel 24 bit up to 1920 x 1200@60Hz
eDP eDP shared with DP_0
Max resolution up to 3840x2160 @60Hz
MultiDisplay Quad Display
Expansion Slot
PCIe 1 x PCIe x8 (Gen3)
SIM Socket 1x SIM socket connected to M.2 key B
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x2/USB 3.2 and SIM for 4G/5G
Audio
Interface Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out
Ethernet
Controller/ Speed LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111EPV with 10/100/1000 Mbps
Support DASH, Teaming function
Connector 2 x RJ-45

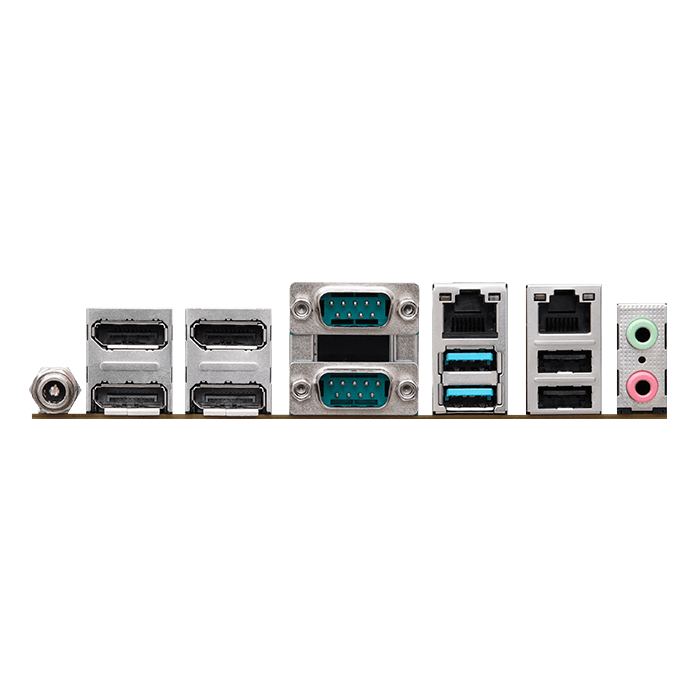

Rear I/O
DisplayPort 3 x DP 1.2a, 1 x DP 1.4
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio 2 (Mic-in, Line-out)
COM 1 x COM (RS-232)
1 x COM (RS-232/422/485)
DC Jack 1 (Screw Type)
Internal Connector
USB 2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM 3 x COM (RS-232)
GPIO 8 x GPI, 8 x GPO
TPM TPM 2.0 header
LVDS 1
eDP 1
SATA PWR Output 1
Speaker Header 1
Storage
M.2 1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x4 for SSD
SATA 2 x SATA3 (6Gb/s)
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR 12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw Type)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
Accessories
Gift Package 1 x I/O Shield (13G020713000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
