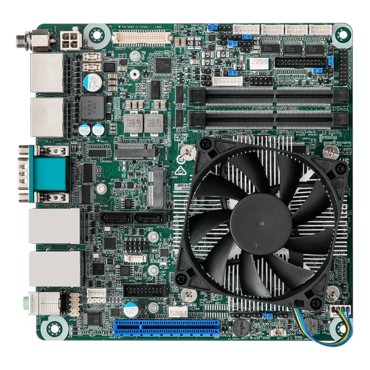

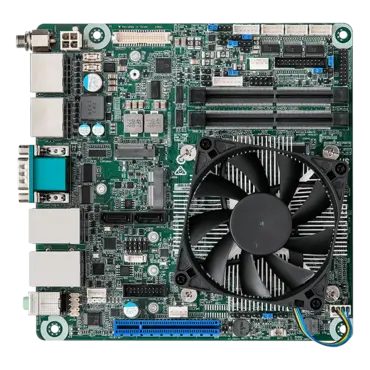

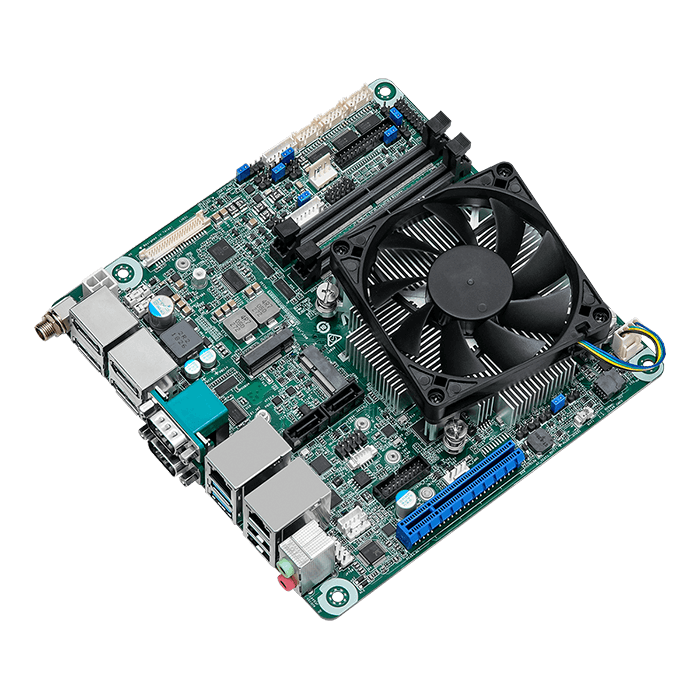

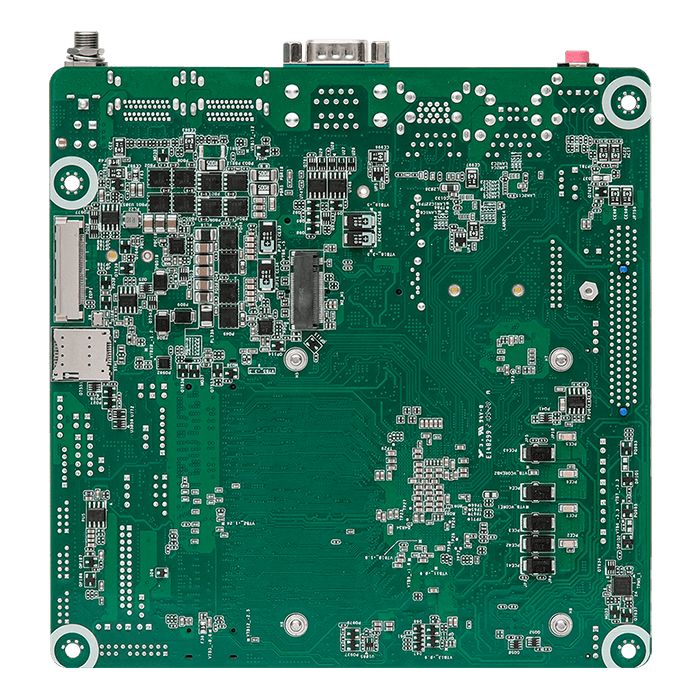

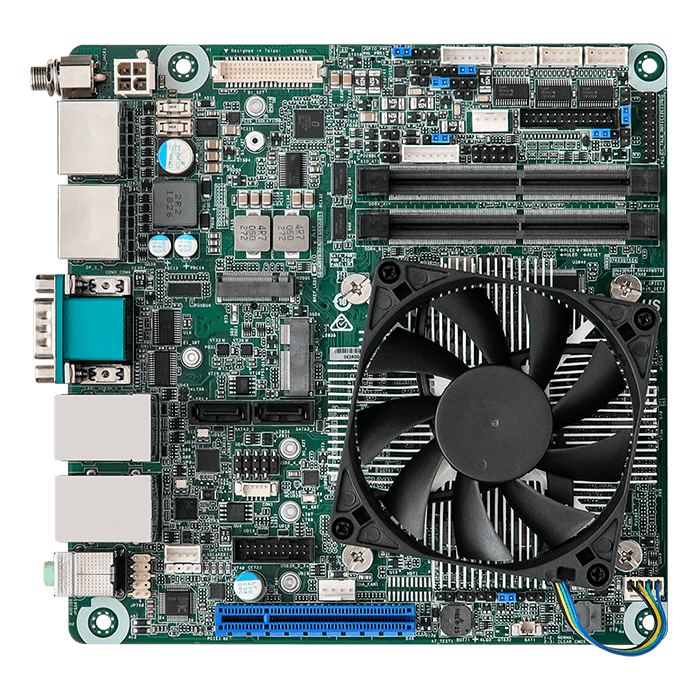

- AMD Ryzen™ Embedded V2000 SoC processors
- 2 x 260-pin ECC/non-ECC SO-DIMM DDR4 3200 MHz, up to 64GB (32GB per DIMM)
- 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 1 x PCIe x8, 5 x COM, 2 x SATA3
- 1 x Realtek 1 Gigabit LAN (Support DASH), 1 x Realtek 2.5 Gigabit LAN
- Support Quad display, 1 x LVDS, 1 x eDP, 3 x DP 1.2, 1 x DP 1.4
- TPM header
- Support DASH, Teaming funciton
- 12~28V DC-In (Lockable DC Jack)
Form Factor | |
---|---|
Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.5-in) |
Processor System | |
CPU |
AMD Ryzen™ Embedded V2000 SoC processors, up to 54W V2748, 2.9GHz, 35-54W |
Chipset | SoC |
BIOS | AMI SPI 256 Mbit |
Memory | |
Technology | Dual Channel ECC/non-ECC DDR4 3200 MHz |
Capacity | 64GB (32GB per DIMM) |
Socket | 2 x 260-pin SO-DIMM |
Graphics | |
Controller | AMD Radeon™ Graphics |
DisplayPort |
3 x DP 1.2a, Max resolution up to 3840x2160 @60Hz 1 x DP 1.4, Max resolution up to 5120x2880 @120Hz |
LVDS |
LVDS shared with DP_1 Dual channel 24 bit up to 1920 x 1200@60Hz |
eDP |
eDP shared with DP_0 Max resolution up to 3840x2160 @60Hz |
MultiDisplay | Quad Display |
Expansion Slot | |
PCIe | 1 x PCIe x8 (Gen3) |
SIM Socket | 1x SIM socket connected to M.2 key B |
M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x2/USB 3.2 and SIM for 4G/5G |
Audio | |
Interface | Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out |
Ethernet | |
Controller/ Speed |
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111EPV with 10/100/1000 Mbps Support DASH, Teaming function |

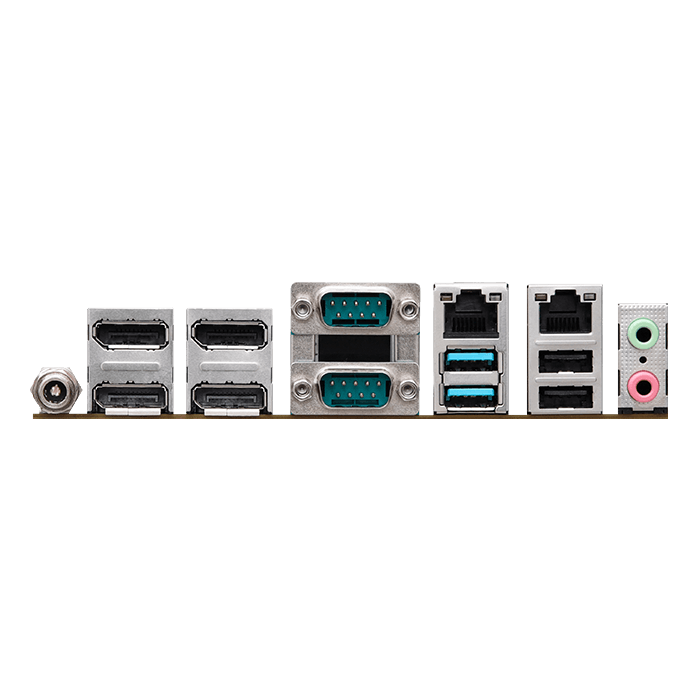

Connector | 2 x RJ-45 |
Rear I/O | |
DisplayPort | 3 x DP 1.2a, 1 x DP 1.4 |
Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
USB | 2 x USB 3.2 (Gen1), 2 x USB 2.0 |
Audio | 2 (Mic-in, Line-out) |
COM |
1 x COM (RS-232) 1 x COM (RS-232/422/485) |
DC Jack | 1 (Screw Type) |
Internal Connector | |
USB |
2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header) 2 x USB 2.0 (1 x 2.54 pitch header) |
COM | 3 x COM (RS-232) |
GPIO | 8 x GPI, 8 x GPO |
TPM | TPM 2.0 header |
LVDS | 1 |
eDP | 1 |
SATA PWR Output | 1 |
Speaker Header | 1 |
Storage | |
M.2 | 1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x4 for SSD |
SATA | 2 x SATA3 (6Gb/s) |
Watchdog Timer | |
Output | From Super I/O to drag RESETCON# |
Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements | |
Input PWR | 12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw Type) |
Power On |
AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment | |
Operating Temp | 0ºC ~ 60ºC |
Storage Temp | -40° C ~ 85° C |
Operating Humidity | 5% ~ 90% |
Storage Humidity | 5% ~ 90% |
Accessories | |
Gift Package |
1 x I/O Shield (13G020713000AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
