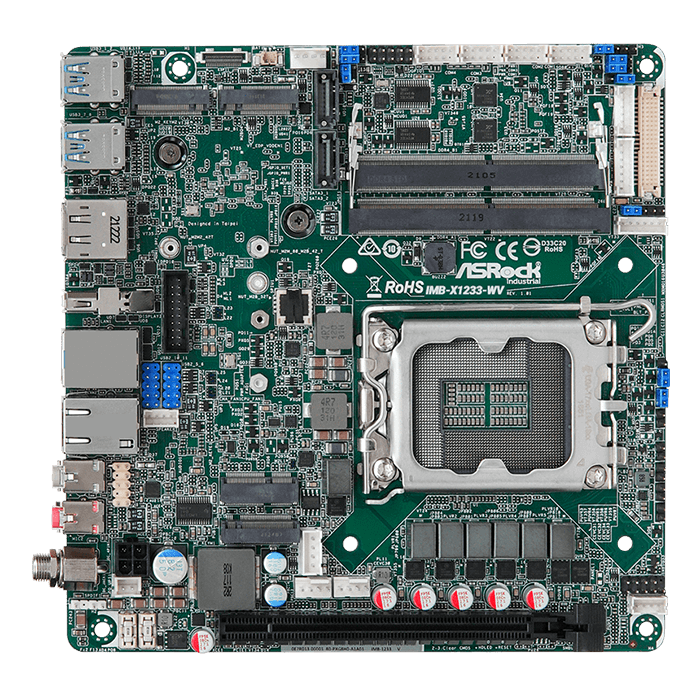

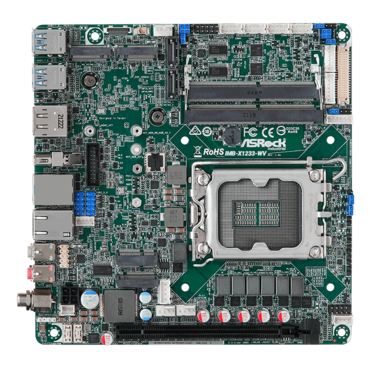

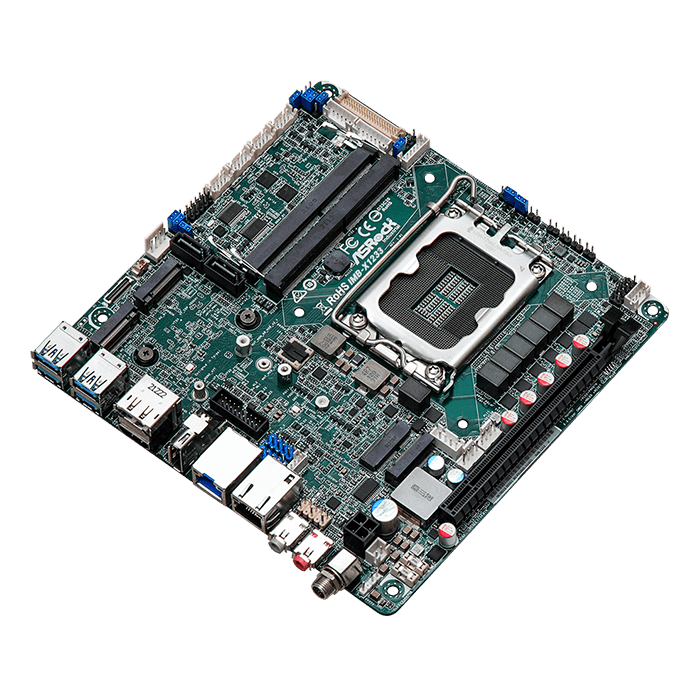

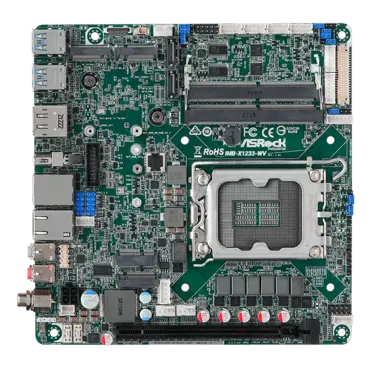

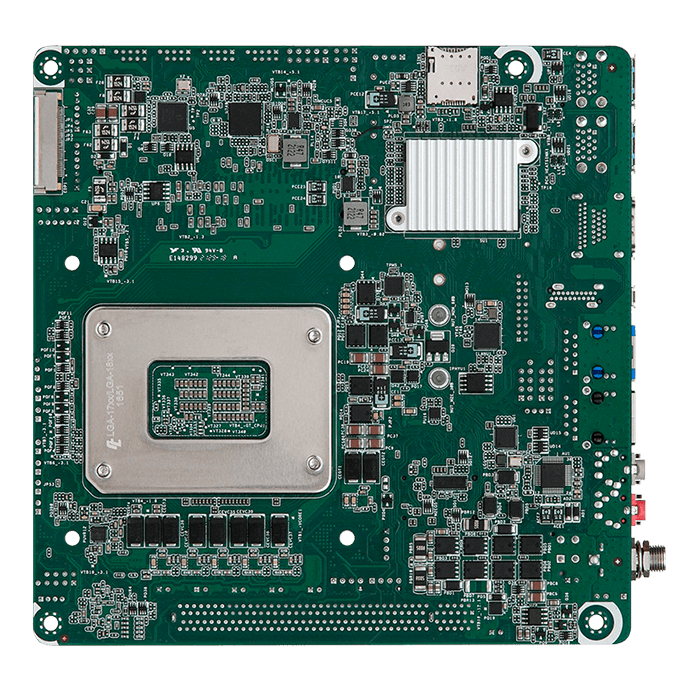

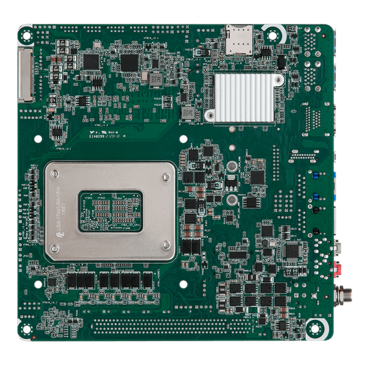

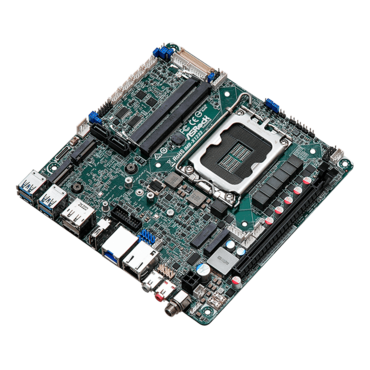

IMB-X1233-WV, Intel® W680 Chipset, LGA 1700, 4x COM, 2x 2.5 GbLAN, Mini-ITX Motherboard
Quantity:
- SKU: 15048330
- Manufacturer: ASROCK
- MPN: IMB-X1233-WV
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$361.10
- Intel® 12th Gen (Alder Lake-S) Core™ Processors with W680 chipset
- 2 x 260-pin SO-DIMM ECC/non-ECC DDR4 3200 MHz , up to 64GB (32GB per DIMM)
- 1 x PCIe x16 (Gen4), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 4 x COM, 2 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0b, 2 x DP 1.4a, 1 x LVDS, 1 x eDP 1.4b
- TPM 2.0 onboard IC
- Supports Intel® vPro, AMT, RAID 0/1/5/10
- 12~28V DC-In (Lockable DC Jack)
| Form Factor | |
|---|---|
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.0-in) |
| Processor System | |
| CPU | Intel® 12th Gen (Alder Lake-S) Core™ Processors, up to 65W |
| Chipset | Intel® W680 |
| Socket | LGA1700 |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Dual Channel ECC/non-ECC DDR4 3200 MHz |
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
| Graphics | |
| Controller | Intel® UHD Graphics |
| DisplayPort |
DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| HDMI |
HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| eDP |
eDP1.4b Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| MultiDisplay | Quad Display |
| Expansion Slot | |
| PCIe | 1 x PCIe x16 (Gen4, Support riser card x8/x8) |
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2 Gen1/USB 2.0 and SIM for 4G/5G |
| SIM Socket | 1 x Socket connected to M.2 Key B |
| Audio | |
| Interface | Realtek ALC897, High Definition Audio. Line-out,Mic-in |
| Ethernet | |
| Controller/ Speed |
LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, support AMT/vPro LAN2: Intel® I225LM with 10/100/1000/2500 Mbps |
| Connector | 2 x RJ-45 |
| Rear I/O | |
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 4 x USB 3.2 (Gen2) |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 2 x DP 1.4a++ |
| Audio | 2 (Mic-in, Line-out) |
| Internal Connector | |
| USB |
2 x USB 3.2 Gen1 (1 x USB 3.2 header) 4 x USB 2.0 (2 x 2.54 pitch header) |
| COM |
COM1, COM2 (RS-232/422/485) COM3, COM4 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM 2.0 onboard IC |
| LVDS | 1 |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| Storage | |
| M.2 |
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD 1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD* *Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS) |
| SATA | 2 x SATA3 (6Gb/s) |
| RAID |
Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIe or SATA) PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M SATA interface: SATA port |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | 12~28V DC-In with 4-pin wafer PWR cable or DC Jack(Screw type) |
| Power On |
AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
