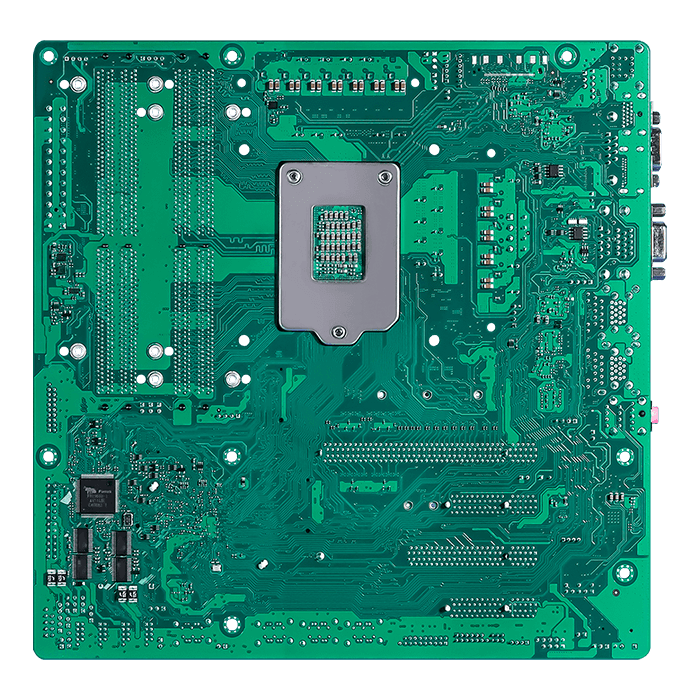

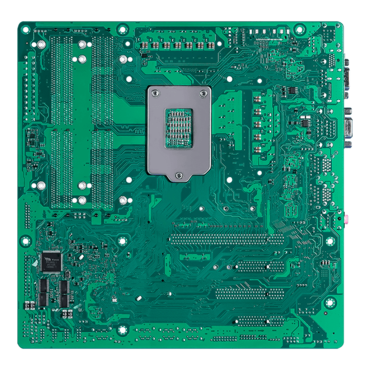

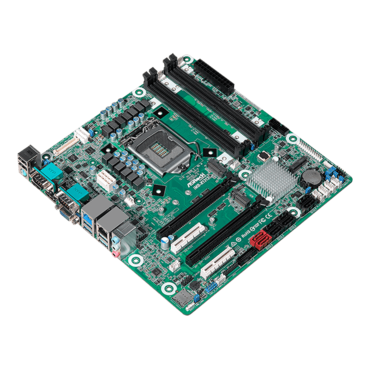

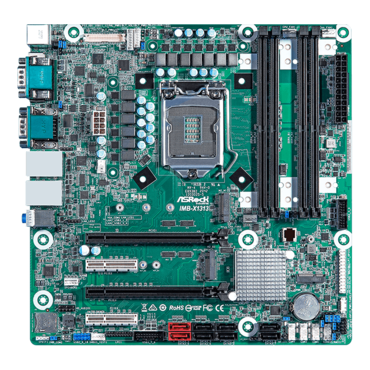

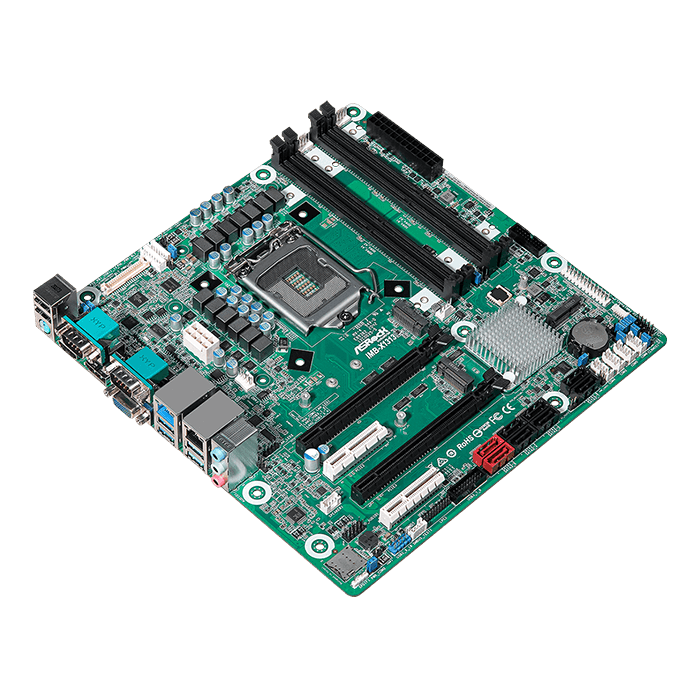

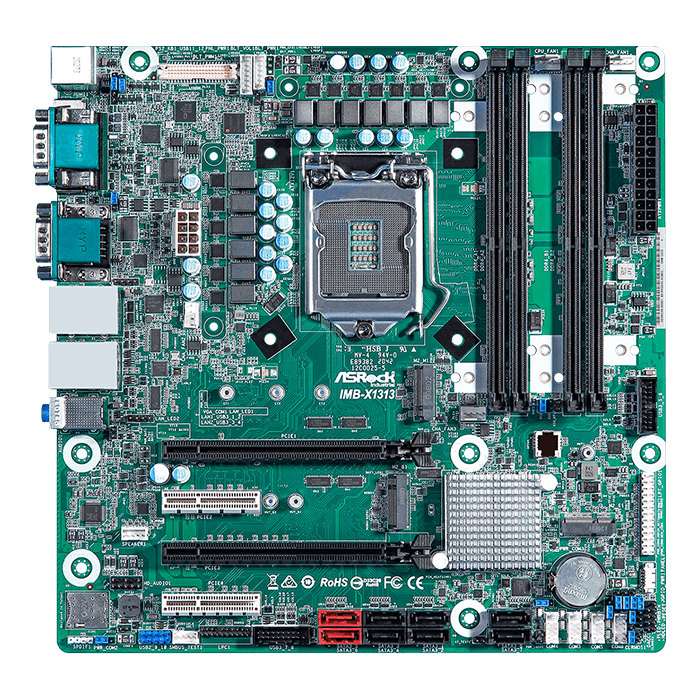

IMB-X1313, Intel® W480E Chipset, LGA 1200, 6x COM, 1x 1 GbLAN, 1x 2.5 GbLAN, microATX Motherboard
Quantity:
- SKU: 15047410
- Manufacturer: ASROCK
- MPN: IMB-X1313
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$328.90
- Intel® Xeon® W-1200 series & Intel® 10th Gen (Comet lake-S) Core™ Processors with W480E chipset
- 4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 128GB
- Support ECC Long DIMM memory modules
- 1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 2 x PCIe x4 Gen3
- 4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.0
- 8 x SATA3, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM
- 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
- Support Triple display, 1 x DP 1.2, 1 x VGA, 1 x LVDS (eDP 1.4 optional), 1 x HDMI 2.0a
- TPM 2.0 onboard
- Supports Intel® vPro, AMT, RAID 0/1/5/10
- ATX-PWR (24+8-pin)
| Form Factor | |
|---|---|
| Dimensions | Micro-ATX (9.6-in x 9.6-in) |
| Processor System | |
| CPU | Intel® 10th Gen (Cometlake-S) Core™ Processors, Up to 125 W |
| Chipset | Intel® W480E |
| Socket | LGA1200 |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology |
Dual Channel DDR4 2933 / 2666 / 2400 MHz, (ECC memory supported by CPU) - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz |
| Capacity | 128GB |
| Socket | 4 x 288-pin Long-DIMM |
| Graphics | |
| Controller | Intel® UHD Graphics |
| HDMI | HDMI 2.0a, Max resolution up to 4096 x 2160@60Hz |
| DisplayPort |
DisplayPort 1.2, DP++ Max resolution up to 4096 x 2160@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
| eDP | eDP 1.4, Max resolution up to 4096 x 2304@60Hz |
| Expansion Slot | |
| PCIe |
2 x PCIe Gen3 Slots (PCIE1 / PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3)) (PCIE1: Support riser card x8 / x8, x8 / x4 / x4) 2 x PCIe x4 Gen3 |
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB2.0 and SIM for 4G / 5G |
| SIM Socket | 1 x SIM socket connected to M.2 Key B |
| Audio | |
| Interface | Realtek ALC887/ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In |
| Ethernet | |
| Controller/ Speed |
LAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro |
| Connector | 2 x RJ-45 |

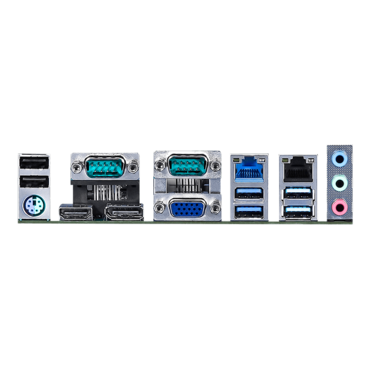

| Rear I/O | |
| HDMI | 1 x HDMI 2.0a |
| DisplayPort | 1 x DP 1.2 |
| VGA | 1 |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 4 x USB 3.2 Gen2, 2 x USB 2.0 |
| Audio | 3 ( Line-In, Line-Out, Mic-In) |
| COM | 2 x COM (RS-232/422/485) |
| PS2 | 1 |
| Internal Connector | |
| USB |
4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header) 2 x USB 2.0 (1 x 2.54 pitch header) |
| COM | 4 x COM (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT header) |
| TPM | TPM 2.0 onboard |
| LVDS | 1 |
| Speaker Header | 1 |
| eDP | 1 (BOM Option support) |
| Storage | |
| M.2 |
1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 and PCIe x4 for SSD * Shared with SATA3_1 / SATA3_2 Ports - When using M.2 PCIe x4 SSD, both SATA3_1 and SATA_2 Ports are disabled - When using M.2 SATA SSD, only SATA3_1 Port is disabled, and SATA3_2 Port is available |
| SATA |
8 x SATA3 (6Gb/s) *Only SATA3_1 ~ SATA3_6 Ports support RAID function |
| RAID | Intel® SATA RAID 0/1/5/10 |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | ATX PWR (24+8-pin) |
| Power On |
AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Accessories | |
