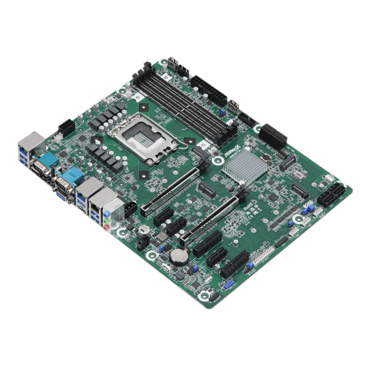

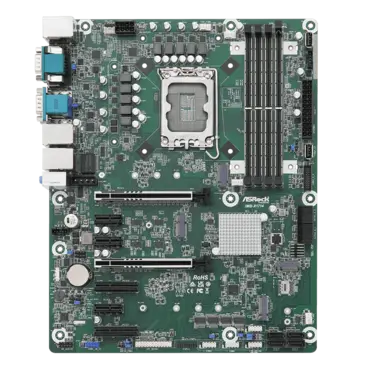

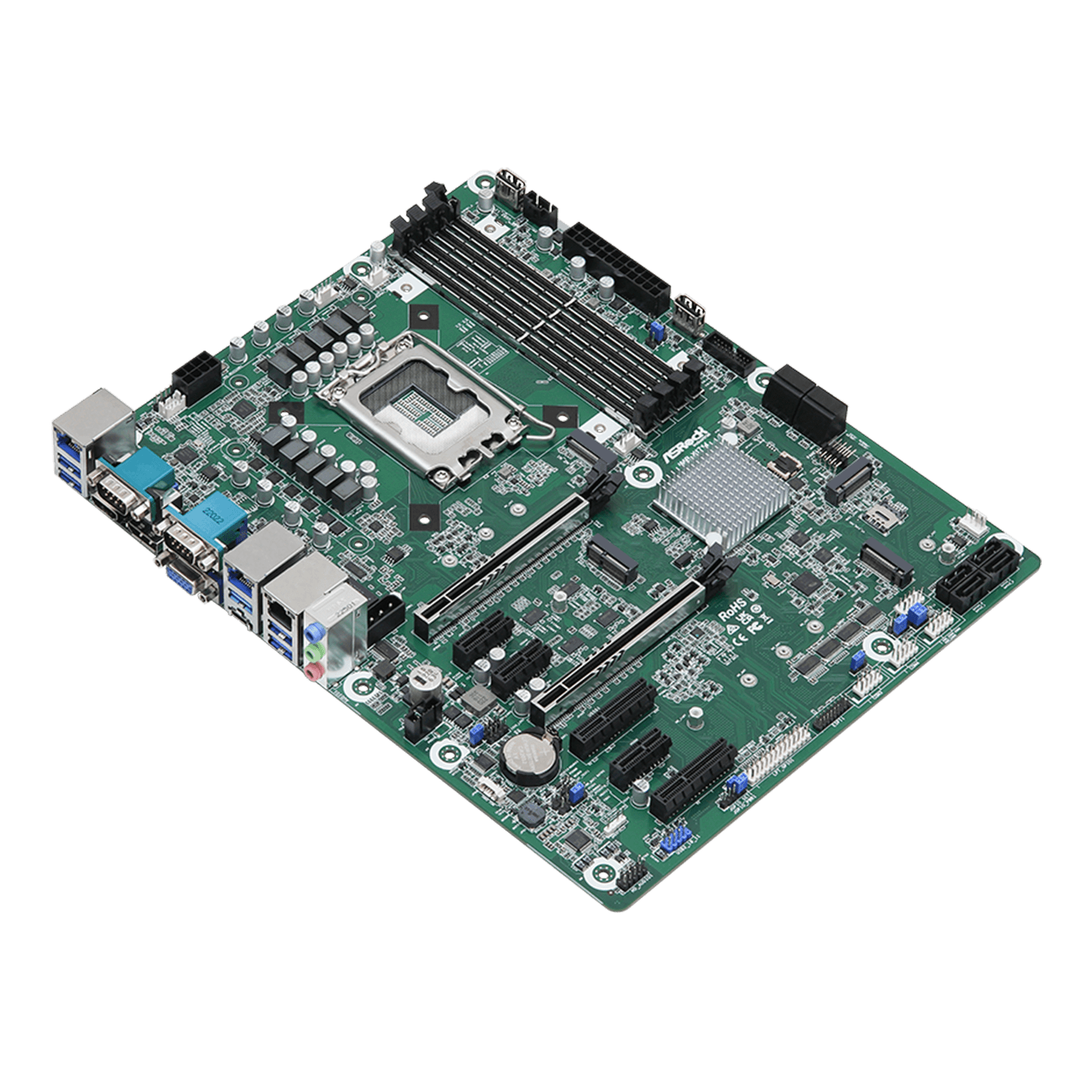

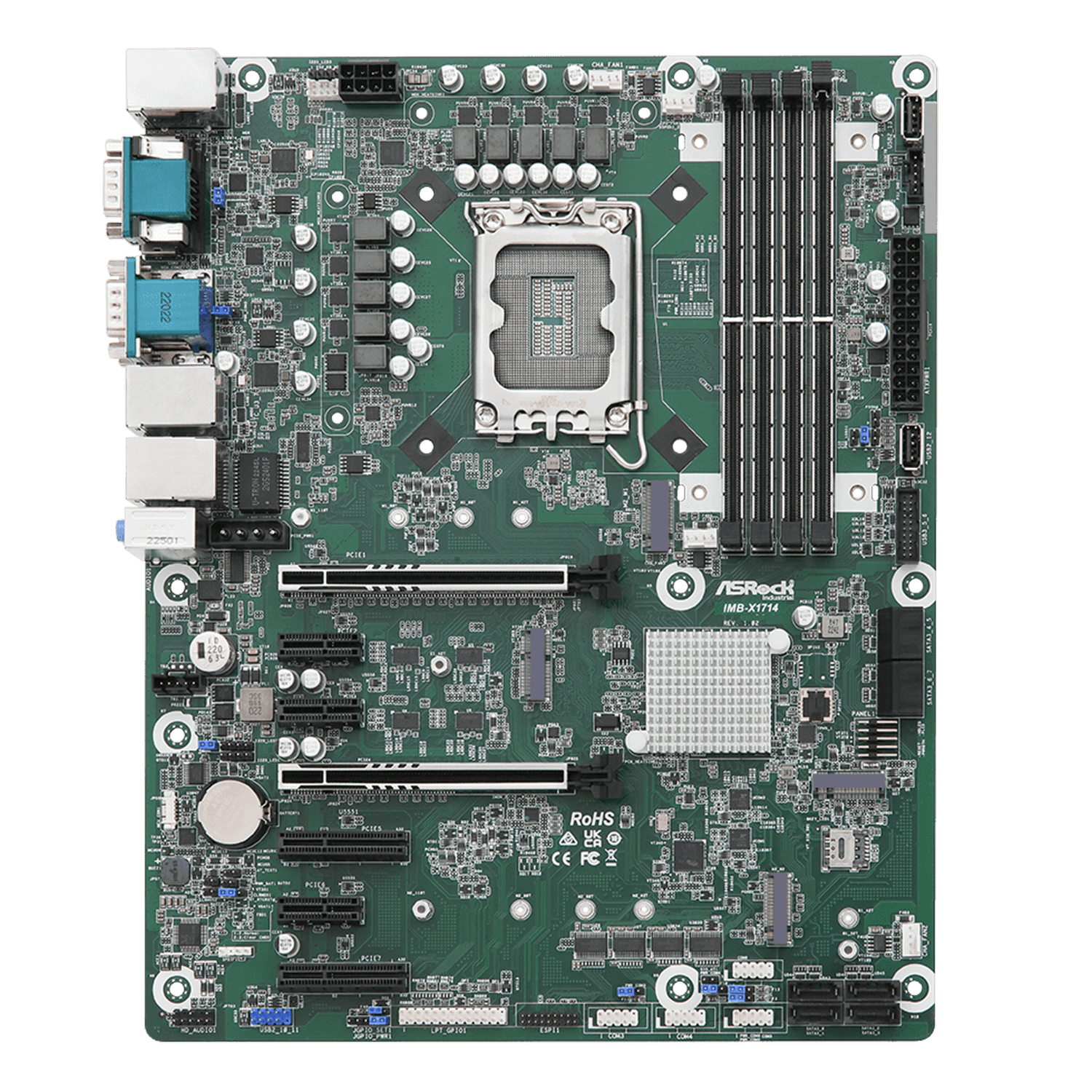

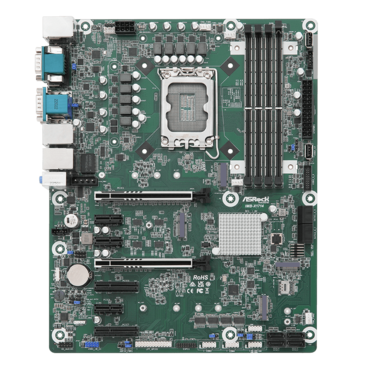

IMB-X1714, Intel® W680 Chipset, LGA 1700, SIM socket, ATX Motherboard
- SKU: 17719495
- Manufacturer: ASROCK
- MPN: IMB-X1714
- Availability: TEMPORARILY OUT OF STOCK
Price
$343.86
| Processor System | |
| CPU | Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125W |
|---|---|
| Chipset | Intel® W680 |
| Socket | LGA1700 |
| BIOS | AMI SPI 256 Mbit |
| Form Factor | |
| Dimensions | ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm) |
| Memory | |
| Technology |
Dual Channel ECC/non-ECC DDR5 4400/5600 MHz* *Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/ faq&faq_id=90 technical FAQ *For DDR5 5600 support refer to memory support list |
| Capacity | 192GB (48GB per DIMM) |
| Socket | 4 x 288-pin Long-DIMM |
| Graphics | |
| Controller | Intel® UHD Graphics |
| HDMI |
HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort |
DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
| Expansion Slot | |
| PCIe |
2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4)) (PCIE1: Support Riser card x8/x8) 2 x PCIe x4 (Gen4) 3 x PCIe x1 (Gen3) |
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G |
| SIM Socket | 1 x SIM socket connected to M.2 Key B |
| Audio | |
| Interface | Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in |
| Ethernet | |
| Controller/ Speed |
LAN1: Intel® I226V with 10/100/1000/2500 Mbps, supports PoE* LAN2: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN3: Intel® I226V with 10/100/1000/2500 Mbps *PoE Output (DC) : 54V(IEEE802.3af/at), Imax 0.6A |

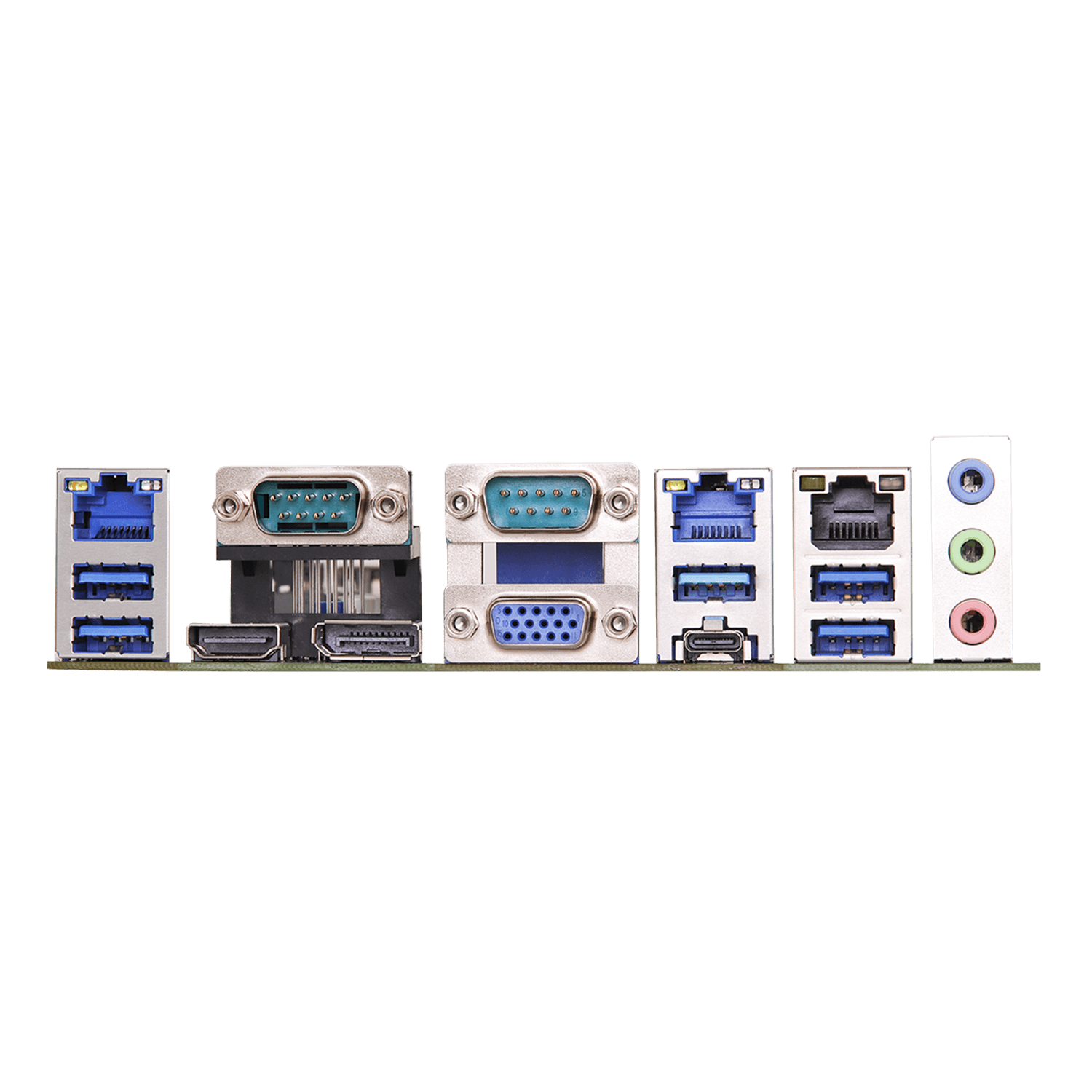

| Connector | 3 x RJ-45 |
| Rear I/O | |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 1 x DP 1.4a++ |
| VGA | 1 |
| Ethernet | 3 x 2.5 Gigabit LAN |
| USB |
5 x USB 3.2 Gen2 1 x USB 3.2 Gen2x2 (Type-C, 5V/3A) |
| Audio | 3 (Mic-in, Line-in, Line-out) |
| COM | COM1, COM2 (RS-232/422/485) |
| Internal Connector | |
| USB |
2 x USB 3.2 Gen1 (1 x USB 3.2 header) 4 x USB 2.0 (1 x 2.54 pitch header, 2 x USB 2.0 Type-A vertical con) |
| COM | COM3, COM4, COM5, COM6 (RS-232) |
| Parallel | 1 |
| GPIO | 8 x GPI, 8 x GPO, (shared with LPT header) |
| PS/2 | 1 x PS2 header |
| Thunderbolt header | 1 |
| Security | |
| TPM | TPM 2.0 onboard IC |
| Storage | |
| M.2 |
1 x M.2 (Key M, 2242/2260/2280/22110/25110) with PCIe Gen4 x4 for SSD 1 x M.2 (Key M, 2242/2260/2280/22110/25110) with PCIe Gen3 x4 for SSD |
| SATA | 8 x SATA3 (6Gb/s) |
| RAID |
Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIe or SATA) PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M SATA interface: SATA port |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 segments, 0,1,2…255sec |
| Power Requirements | |
| Input PWR | ATX PWR (8+24 Pin) |
| Power On |
AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | -20ºC ~ 70ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Accessories | |
| Gift Package |
2 x SATA Cable (14G00010107DAK) 1 x I/O Shield (13G020776000AK) 4 x SCREW M2*2,D=5 (13G020302031AK) |
